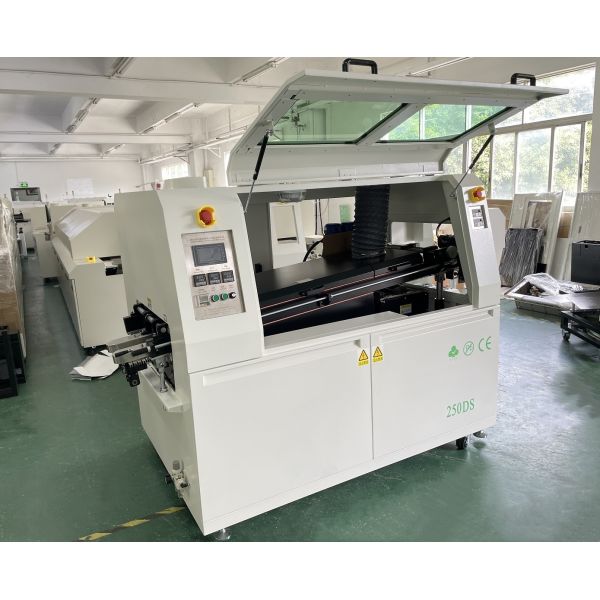

Charmhigh 250DS Automatic Wave Soldering Machine
Lead-Free Wave Soldering System for DIP Production Line PCB Assembly
Key Features & Benefits
  • Suitable for both SMD and THT component soldering with streamlined, aesthetically pleasing design
  • Modular preheating zone and filtration system with direct pull-out design for easy maintenance
  • Two-stage preheating zone ensures stable heating curve and prevents PCB deformation
  • Intelligent automatic tracking spray system adjusts to PCB width variations
  • Programmable logic controller (PLC) with internal speed tracking for optimized spray timing
  • Automatic flux nozzle cleaning device eliminates manual maintenance requirements
  • Special spiral furnace chamber design reduces thermal deformation and oxidation
  • Unique guide rail design ensures complete and smooth PCB soldering and transmission
  • Variable frequency drive technology for precise wave peak height control
  • Energy-efficient nickel-chromium infrared heating tubes with long service life
  • Comprehensive safety features including over-temperature alarms and emergency braking
  • Closed-loop variable speed control system for stable transport operation
  • Spray exhaust filter plate reduces emission pollution and simplifies cleaning
  • Precision titanium alloy spring claws for reliable, non-stick PCB transport
  • User-friendly PLC and touch screen control interface for easy operation
Technical Specifications
Parameter Specification
PCB Board Width Max 250mm
PCB Conveyor Height 750±20mm
PCB Conveyor Speed 0-1.8m/min
Preheating Length 800mm
Preheating Zones 2
Preheating Temperatures Room temperature ~ 350℃
Solder Type Compatibility Leaded/Lead-free solder paste
Preheating Capacity 5KW
Wave Solder Pot 8KW
Crest Value of Solder Waves Max 10mm (Impact depth up to 30mm)
Solder Volume 180KG
Solder Temperature Room temperature ~ 320℃
Conveyor Angle 3-7 degrees
Temperature Control PLC + PID
Flux Storage Tank Max 5.2L
Power Requirements 3P 5-wires 380V/220V option
Heating Power 12KW
Operation Power MAX 5KW
Air Supply 4-7kg/cm², 12.5L/min
Weight Max 600kg
Dimensions L2400 * W1150 * H1500
Product Images
Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly
Loader & Unloader Options
Charmhigh 250DS Lead-Free Automatic Wave Soldering Machine for PCB Assembly
