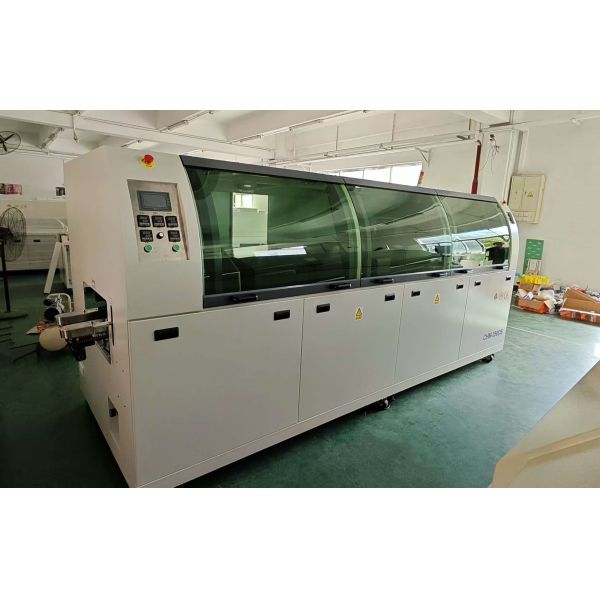

Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Specifications
Place of Origin :
China
Brand Name :
Charmhigh
Certification :
CE
Model Number :
250DS; 300DS; 350DS
MOQ :
1pcs
Price :
$5460
Packaging Details :
Plywood box
Delivery Time :
5-7 days
Payment Terms :
T/T,Western Union
Supply Ability :
50 Per month
Dimension :
2600*1200*1600mm
PCB deliver speed :
0-1.8m/min
Heating way :
hot air
Power :
3 phase 5 lines, 380v 50hz
Air source :
4-7KG/CM2 12.5L/Min
Net weight :
800kg
Wave soldering number :
2
PCB width :
250/300/350mm
Description
Lead-Free Wave Soldering Machine 250DS 300DS 350DS
Full automatic lead-free wave soldering machines designed for PCB DIP production lines, available in three models to accommodate different board widths.
Key Features
  • Automatic conveying power system with synchronous board feeding
  • Frequency converting speed adjustment for independent wave height control
  • Transverse Japanese spray nozzle fluxer system with adjustable spray area and depth
  • Stepper motor-driven flux sprayer for easy disassembly and maintenance
  • PLC control system ensuring reliability and stability
  • Infrared pre-heaters for efficient heat radiation and fast ramp-up
  • Special alloy solder fingers with strengthened double V-groove
  • Imported high-frequency conversion solder motor for stable performance
  • Modularized pre-heater passage design for environmental compliance
  • Three independent temperature control zones
Technical Specifications
Parameter Specification
PCB Board Width Max 250mm / 300mm / 350mm (3 models)
PCB Conveyor Height 750±20mm
PCB Conveyor Speed 0-1.8 m/min
Preheating Length 800mm
Preheating Zones 2
Preheating Temperatures Room temperature ~ 350℃
Suitable Solder Type Leaded / Lead-free solder paste
Preheating Capacity 5KW
Wave Solder Pot 8KW
Crest Value of Solder Waves Max 10mm (Impact depth up to 30mm)
Solder Volume 180KG
Solder Temperature Room temperature ~ 320℃
Conveyor Angle 3-7 degrees
Temperature Control PLC + PID
Flux Storage Tank Max 5.2L
Power Requirements 3P 5-wires 380V/220V option
Power for Heating Up 12KW
Power for Operation MAX 5KW
Air Supply 4-7kg/cm², 12.5L/min
Weight Max 600kg
Dimensions L2400 × W1150 × H1500 mm
Product Images
Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line Lead-Free Wave Soldering Machine 250DS 300DS 350DS with Automatic Conveying for PCB DIP Production Line
Support & Contact
Kimi Liu
Charmhigh Technology Limited
Mobile/WhatsApp: +8613510675756
YouTube Channel: @KimiLiuCharmhigh
For more information, please contact us by email. We will respond promptly.
Service & Warranty
Complete machine warranty period of 1 year from purchase date with lifetime service support.
  • Factory direct supply of spare parts with guarantee
  • Online Q/A and troubleshooting support with technical advice
  • One-to-one after-sales service
  • Each machine 100% tested before shipment
