Application:

The XTM1250S series power meters are DIN rail three phase active electronic energy meters. They adopt many advanced technologies of research and development for the power meters, like microelectronic-techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technique, and so on. Their technical performances of power meters completely conform to International Standards IEC 62053-21 for Class 1 three phase active energy meter.

XTM1250S series power meters can directly and accurately measure the load active energy consumption in the three phase AC networks of rated frequency 50Hz or 60Hz.

The XTM1250S series power meters have multiple types for option, to be suitable with the various market demands. XTM1250S series power meters have features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.

Functions and features:

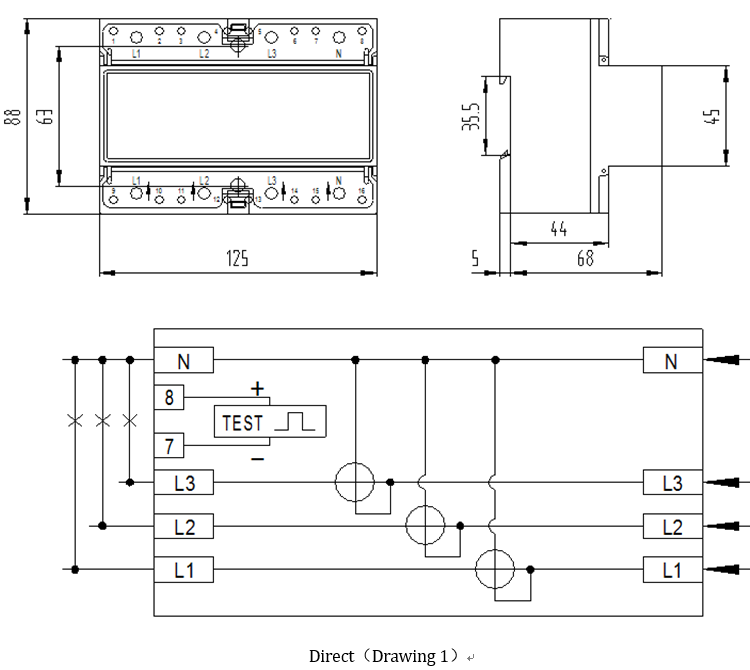

1. XTM1250S series power meters with 3 Available as 35mm DIN standard rail mounted, conforming to Standards DIN EN 50022, as well as front PANEL mounted (the center distance between two mounting holes is 63mm). Two mounted methods above are optional for users.
2.
   XTM1250S series power meters; 10 pole width (modulus 12.5mm), complying with Standards JB/T7121-1993.
3.
   XTM1250S series power meters; Can select the step motor impulse register of 6 digits (999999kWh) .
   XTM1250S series power meters; Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.
4.
   XTM1250S series power meters; LEDs indicate separately the power state on each phase, the energy impulse signal and data communication state.
5.
   XTM1250S series power meters; Automatic detection for the load current flow direction and will be indicated by LED.
6.
   XTM1250S series power meters; Measure the active energy consumption in one direction on three phase, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.
7.
   XTM1250S series power meters; The short terminal cover is made with the transparent PC, to reduce the installation space and is convenient for centralized installation.

Further information:

1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.

2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.

3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.

FAQ

A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit

B. Would you accept OEM/ODM service?

Glad to say that there is planning department, technical department and mould tooling center in

our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.
