Application:

Model XTM75SA-U single phase electronic DIN rail active energy meter is a kind of new style single phase two wire active energy meter, it adopt micro-electronics technique, and imported large scale integrate circuit, use advanced technique of digital and SMT techniques, etc.

The meter completely accord with relevant technical requirements of class 1 single phase active energy meter stipulated in international standard IEC 62053-21. It can accurate and directly measure 50Hz or 60Hz active energy consumption from single phase AC electricity net, it can display total energy consumption by step motor type impulse register.

It has following features: good reliability, small volume, light weight, specious nice appearance, convenient installation, etc. This meter has already got the patent certificate from China State Intellectual Property Office at present. Patent certificate NO. ZL 2013 3 0556103.2, any other country patent certificate are in assessing.

.

Functions and features:

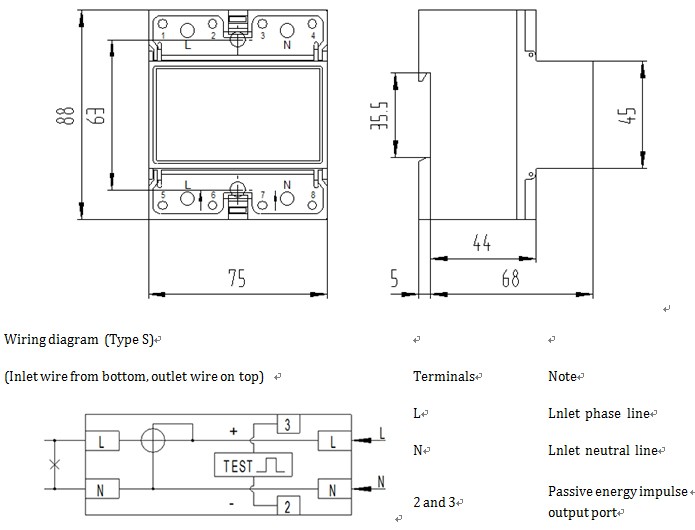

1. 35mm standard DIN rail installation, complying with standard DIN EN50022.
2. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
3. May select 6+1LCD digits display (999999.1kWh) .
4. Standard configuration one port of pulse output passive (polarity),May select increas.a distant port of pulse output passive (nonpolarity), complying with standard IEC 62053-31.
5. Three LED instructions power supply state, signal of energy impulse and communication state.
6. Standard configuration don’t detection direction of the flow of load current. May select automatic,detection the direction of the flow of load current. And instructions by an individual LED.
7. Single direction measure single phase two wire active energy consumption. It is nothing with,direction of the flow of load current. Complying with standard IEC 62053-21.
8. Standard configuration short terminals cover, may select extension terminals cover,in order to protect to use safety.

Further information:

1. Plastics materials: all raw materials are brand-new and second-hand materials are forbidden. Furthermore some of them are supplied by super branding companies like DSM, Mitsubishi.

2. There is just one level of quality as A in MEIHENG and we are aim to provide the excellent articles to our clients and help them gain more market shares.

3. ODM: we are providing ODM services to the super companies (more than 15) who are top-10 electrical industrial companies in their country. Just show us your ideas and we will present a solution.

FAQ

A. How's the delivery time?
Depend on your quantity, usually within 20days after receiving deposit

B. Would you accept OEM/ODM service?

Glad to say that there is planning department, technical department and mould tooling center in

our factory. For the OEM & ODM, it is ok for us if your brand, market shares are great.
