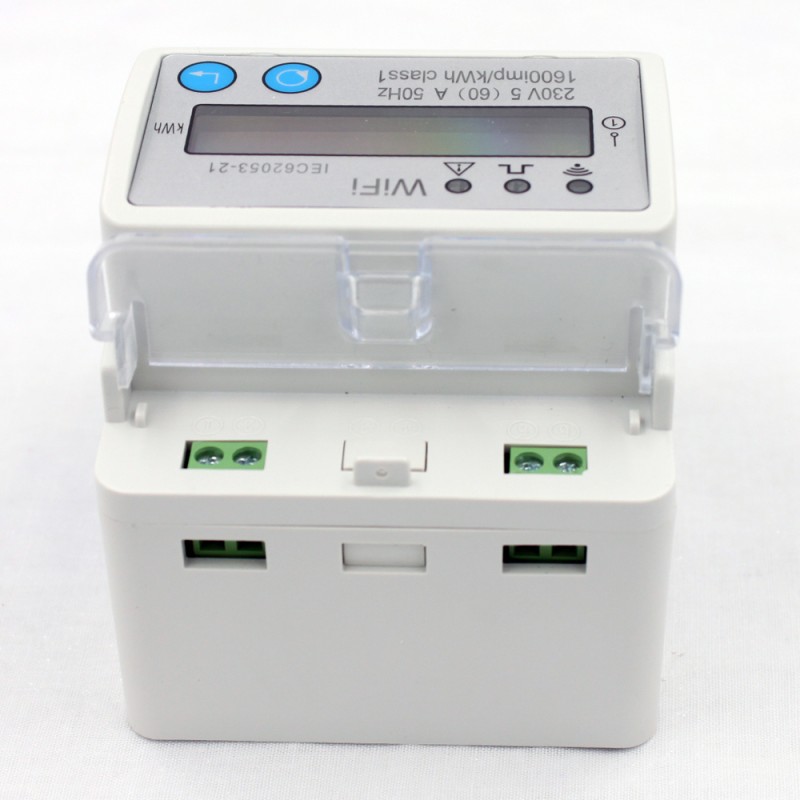

Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Single Phase Smart Energy Meter with WiFi and RS485 230V 5(60)A Din Rail Mount
Specifications
Rated current :
5(60)A,10(100)A or other as required
Dimensions :
93x77x78mm
Normal voltage range :
90%Un~110%Un
Frequency :
50HZ/60HZ
Application :
Telecommunication, Electric Power
Communication :
wifi,RS485 Port MODBUS-RTU Protocol
Operating Temperature :
25℃ ~ +55℃
Type :
DIN Rail Mounting Energy Meter
WIFI :
802.11b/g/n ,only support 2.4GHz network , not support 5GHz network
Measuring Energy Range :
0-999999.9 kWh
Phase :
Single Phase
Feature :
Durable, Safety
Limits voltage range :
70%Un~120%Un
Max. Current :
100 A
Place of Origin :
Zhejiang, China
Constant :
800~1600 Imp/kWh
RS485 port :
MODBUS-RTU protocol, 1200~9600bps,None parity ,default 9600bps
MOQ :
1000 pieces
Output Voltage :
230v
Usage :
Active Electric Energy Measurement
Accuracy Class :
1.0
Price :
$22-24 / piece
Rated Current :
5(60A)
Model Number :
DTS238-4
Brand Name :
MEH
Display Type :
LCD
Description

DDS238-4 W single phase din rail type WIFI watt hour meter

Product Description

USER’S MANUAL

1. General Description

The meter is designed to measure single phase two wire AC active energy and variable parameter. All of its functions comply with the relative technical requirement for class 1 single phase watt hour meter in IEC62053-21 and its data communication rules obey the requirement of DL/T645 or MODBUS-RTU. The WIFI communication rule obey the requirement of 802.11b/g/n .It is a long life meter with the advantage of high stability , high over load capability , low power loss and small volume

2.Specification and Technical Parameters

1. LCD display

2. Bi-directional total active energy ,reverse active energy measure in the total active energy

3. The meter also display real voltage , real current , real power , real power factor , real frequency , real time and date

4. overvoltage and under voltage protection

5. over load protection.

6. timing and delay time control

7. Pulse LED indicates working of meter,Pulse output with optical coupling isolation

8. WIFI and RS485 communication port ,can remote control

9. All data can read from mobile phone from WIFI to cloud server

10. 35mm din rail installation

3. Technical Data

:

Rate voltage

230V(110~270)

Working voltage range

0.8~1.2Un

Rate Current

5(60)A,10(100)A or other as required

Frequency

50Hz or 60Hz

Connection mode

Direct type

Display

LCD

Accuracy class

1.0

Power consumption

<1W/10VA

Start current

0.004Ib

Constant

800~1600 imp/kWh

WIFI

802.11b/g/n

Pulse output

Passive pulse, pulse width is 80+5 ms

Communication port

RS485 port , baud rate 1200~9600 bps

Executive standard

IEC62053-21,DL/T645-2007 or MODBUS-RTU

Work temperature

-30℃~70℃

Outline dimension LXMXH

93x77x78mm

Weight

Approx 0.36kg
