Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall
Specifications
Brand Name :
XINGEBIN
Model Number :
R-SLW
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1000 square meter
Price :
USD1.0-2.5/SQUARE METER
Payment Terms :
T/T, L/C
Supply Ability :
20000 SQUARE METERS/DAY
Delivery Time :
10-15DAYS
Packaging Details :
BUNDLE+PALLET
materil :
5% galfan wire, hot dipped galvanized
hole size :
60mmx80mm, customized
width: :
1.5m
length: :
3m
hight: :
0.5m
Hole shape :
Hexagonal
Wire gauge :
2.0-4.0mm
Aookucatuib :
gabion, protective mesh, Retaining wall, shore protection
Surface treatment :
Hot dipped galvanized, PE/PVC coated, galvanized+PVC COATED
Color :
Silver, green
Description

Galvanized Hexagonal gabion

Gabion box is made of low-carbon steel wire, the steel wire is woven by hexagonal machine,

The wire are hot dipped galvanized wire or galvanized wire with PVC Coated with high corrosion resistance, high strength and ductility.

Material:Hot dip galvanizedwire,PVC coated wire,Galfan-coated wire.
Surface treatment:Hot dip galvanized,electric galvanized and pvc coated.
Weaving character:Normal twisted, reverse twisted and double-way twisted.
Mesh Hole:60x80mm,80x100mm,100x120mm.
Wire Dia:2.7mm,3.4mm

Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall

Galvanized Hexagonal Gabions shall be manufactured in such a manner that their sides, ends, lid and diaphragm(s) can be
assembled to form rectangular units of the specified dimensions. Gabions shall be of a single unit
construction. The front, base, back and lid shall be woven into a single unit. All perimeter edges of the
mesh forming the gabion shall be securely selvedged so that the joints obtained have at least the same
strength as the wire mesh itself.

Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall

Galvanized Hexagonal gabion

Poducts Gabions Hole Type Hexagonal
Material GI wire , PVC coated wire,galfan wire Wire Guage 2.00MM - 4.00mm
Hole size 60mm x 80mm , 80mm x100mm ,

100mm x 120mm , 120mm x 150mm		 Gabion Size 2m x 1m x 1m, 3m x 1m x 1m,

4m x 1m x 1m, 2m x 1m x 0.5m,

4m x 1m x 0.5m.
Twist number 3 or 5 Package Plastic film coated then pallet
Appication Control and guide of water or flood.

Flood bank or guiding bank Proventing

of rock breaking.

Water and soil protection.

Bridge protection.

Strengthening structure of soil.

Protection engineering of seaside area.

Seaport engineering.

Isolation walls.

Protection of road.		 Gabions Features (1) economy. Just a stone into

the gabion sand seal it.

(2) construction is simple, no

special skills.

(3) there is a strong withstand

natural damage and corrosion

resistance and resistance to adverse

climate impacts.

(4) can withstand a wide range of

deformation, but not collapse.
Origin China Sample Avalible

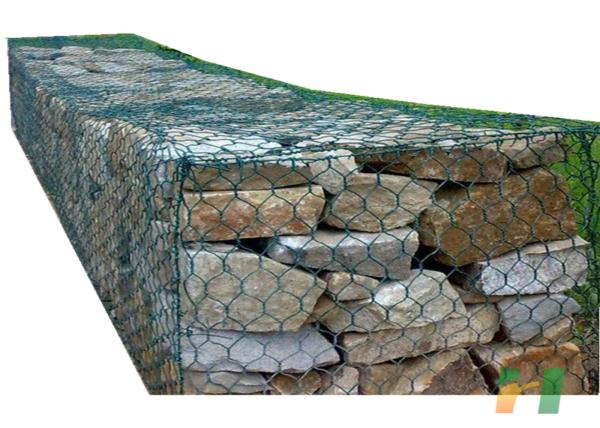

Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall

Galvanized Hexagonal gabion box

Galvanized Hexagonal Gabion Box 3mX1mX1m Steel Gabion Wall

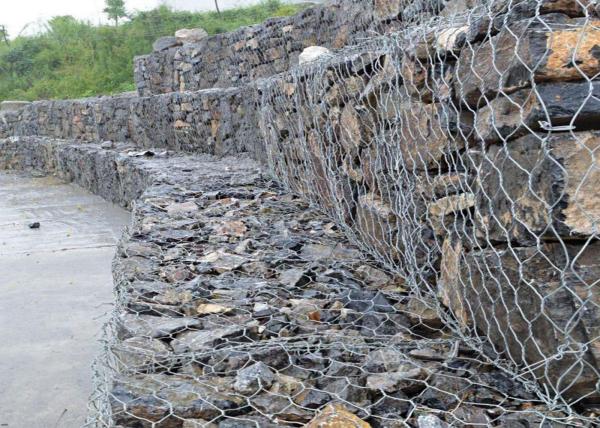

The application of the galvanized hexagonal gabion :

The gabion basket can be used to reinforce river banks. The gabion used to reinforce the river embankment is usually on the inner side of the embankment

Gabion can also be used to guide river water

The gabion is also applied to flood discharge dams and diversion dams, the gabion wall is guided or restricted floods

Gaion is also widely used in highway, railway, construction and other fields
