Galvanized Welded Wire Gabion Baskets , Welded Gabion
Galvanized Welded Wire Gabion Baskets , Welded Gabion
Galvanized Welded Wire Gabion Baskets , Welded Gabion
Galvanized Welded Wire Gabion Baskets , Welded Gabion
Specifications
Brand Name :
xingebin
Model Number :
R-DHW
Certification :
ISO9001
Place of Origin :
China
MOQ :
500 m2
Price :
USD0.8-2.0
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
USD300 M2/DAY
Delivery Time :
5-10days
Packaging Details :
pallet
Hole shape :
square hole
Material :
galvanized wire
Type :
Welded
Application :
protection
Wire gauge :
2.2-5.0mm
width :
1.2m
length :
1.2m
high :
1.1m
Description

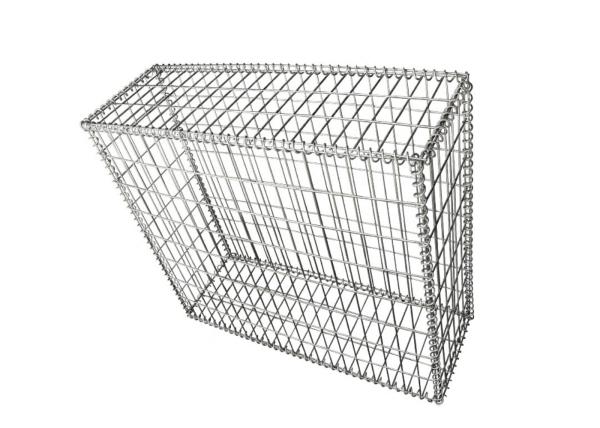

galvanized welded gabion basket,welded gabion , welded gabion wall introduction:


Welded Gabion basket stone cage is made of Welded Wire Mesh Panels assembled with spirals, stiffener. Each gabion panel is composed of rugged high tensile wire coated by a thick, corrosion-resistant layer of zinc.

Welded Gabion basket is made of galfan wire and galvanized wire. It can be moved relatively easily by a simple hand truck by a single person. Simple installation. No special technology needed. Welded wire gabion network installation fast and convenient and simple structure and beautiful, save work time saving, high work efficiency.
Galvanized Welded Wire Gabion Baskets , Welded Gabion

galvanized welded gabion basket,welded gabion , welded gabion wall detail:

Normal Box sizes (m) NO.of diaphragms(pcs) Capacity(m³)
0.5x0.5x0.5 0 0.125
1x0.5x0.5 0 0.25
1x1x0.5 0 0.5
1x1x1 0 1
1.5x0.5x0.5 0 0.325
1.5x1x0.5 0 0.75
1.5x1x1 0 1.5
2x0.5x0.5 1 0.5
2x1x0.5 1 1
2x1x1 1 2
This table refers to the industry standard unit sizes; non-standard unit sizes are available in diamensions of munltiples of the mesh opening.
Normal Box sizes(m) NO. of diaphragms(pcs) Capacity per box(m³)
1.0x1.0x0.5 None 0.5
1.0x1.0x1.0 None 1.0
1.5x1.0x0.5 None 0.75
1.5x1.0x1.0 None 1.5
2.0x1.0x0.5 1 1.0
2.0x1.0x1.0 1 2.0
3.0x1.0x0.5 2 1.5
3.0x1.0x0.5 2 3.0
4.0x1.0x0.5 3 2.0
4.0x1.0x1.0 3 4.0

Galvanized Welded Wire Gabion Baskets , Welded Gabion
galvanized welded gabion basket,welded gabion , welded gabion wall accessory
Galvanized Welded Wire Gabion Baskets , Welded Gabion

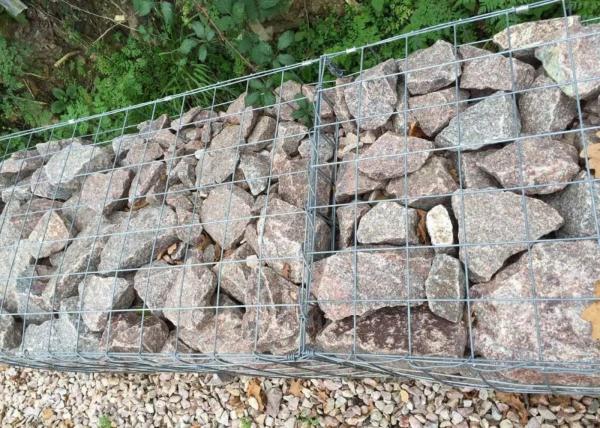

galvanized welded gabion basket,welded gabion , welded gabion wall show:
Galvanized Welded Wire Gabion Baskets , Welded Gabion
