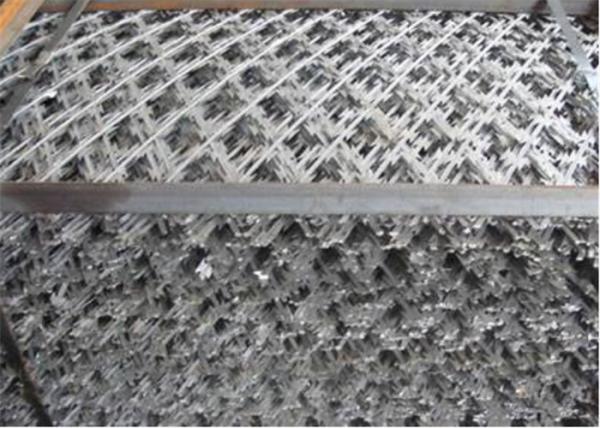

Welded Bto 10 100mm X 200mm Diamond Razor Mesh Hot Dip Galvanized
Welded Bto 10 100mm X 200mm Diamond Razor Mesh Hot Dip Galvanized
Welded Bto 10 100mm X 200mm Diamond Razor Mesh Hot Dip Galvanized
Welded Bto 10 100mm X 200mm Diamond Razor Mesh Hot Dip Galvanized
Specifications
Brand Name :
XR
Model Number :
WRW
Certification :
CE
Place of Origin :
CHINA
MOQ :
5 Square Meters
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 Tons Per Month
Delivery Time :
7-10 days after get the payment
Packaging Details :
Pallet
Material :
Galvanized And Stainless Steel
Zinc Coated :
Galvanized Wire:8-60g/m2;Blade:40-60g/m2 Or As Customer's Req
Application :
Security And Safety
Barb Length :
BTO10 12 18 22 28 30 CBT60 65
Panel Size :
1x2M，2x4M，4x8M
NAME :
Welded Bto 10 100mm X 200mm Diamond Razor Mesh Hot Dip Galvanized
Description

Welded BTO 22 100mm x 200mm Razor Wire Mesh Hot Dip Galvanized

Welded Razor Wire Mesh Description

Product Description
Galvanized BTO-22 Welded Razor Wire Mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll form for minerals,prison and so on. Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.
  • Welded razor wire mesh diamond shape, BTO-22 and BTO-30 with hole aperture 75 mm × 150 mm, HDG finish, 1.2 m × 6 m.
  • Welded razor wire mesh, BTO-22 or BTO-12, mesh size: 100 mm × 100 mm, panel size: 2 meter × 3 meter.
  • Welded razor wire fence, for stopping people from climbing the railing, 25' length and 3.5' height.
  • Welded Razor Wire Mesh 1200 m long and 2.0 m high.
  • Welded razor wire and the T-shaped poles to cover 1800 mm high × 125 m long.
  • 120 m length and 500 mm coil diameter welded razor wire mesh on top of a palisade fence
  • Welded razor wire mesh 1800 mm high to cover 245 m in the airport area.
  • Welded razor wire mesh with height of 3 m and length 1000 m.
  • Welded razor mesh 2.4 m height × 500 m length and 1.8 m height × 500 m length.

Welded Razor Wire Mesh Detailed Techinique

Reference
Number		 Thickness
mm		 Wire Dia.
mm		 Barb Length
mm		 Barb Width
mm		 Barb Spacing
mm
BT0-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BT0-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BT0-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BT0-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Welded Bto 10 100mm X 200mm Diamond Razor Mesh Hot Dip Galvanized

Welded razor wire mesh Benefits

  1. It is almost impossible to climb.
  2. High-strength steel core very difficult to cut off.
  3. Powerful security fence barriers neat appearance.
  4. No secondary use, so he will not be stolen.
  5. Extremely simple to install, needs three to four to install molding.

Razor Barbed Wire Application

  • Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.
  • Also used for division of railway, highway, agricultural fencing, etc.
Welded Bto 10 100mm X 200mm Diamond Razor Mesh Hot Dip Galvanized
