CE Hot Dip Galvanized Rhombus Holes 75x150mm Razor Mesh
CE Hot Dip Galvanized Rhombus Holes 75x150mm Razor Mesh
CE Hot Dip Galvanized Rhombus Holes 75x150mm Razor Mesh
CE Hot Dip Galvanized Rhombus Holes 75x150mm Razor Mesh
Specifications
Brand Name :
XR
Model Number :
WRW
Certification :
CE
Place of Origin :
CHINA
MOQ :
6 Square Meters
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 Tons Per Month
Delivery Time :
7-10 days after get the payment
Packaging Details :
Pallet
Zinc Coated :
Galvanized Wire:8-60g/m2;Blade:40-60g/m2 Or As Customer's Req
Material :
Galvanized And Stainless Steel
name :
CE Hot Dip Galvanized Rhombus Holes 75x150mm Razor Mesh
Mesh Aperture :
75x150Mm
Panel Size :
1x2M，2x4M，4x8M
Barb Length :
BTO10 12 18 22 28 30 CBT60 65
Description

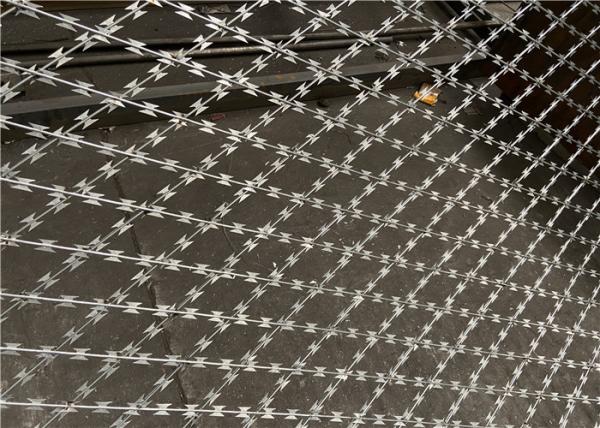

Hot Dip Galvanized Wire Welded Razor Wire Mesh Rhombus Holes 75x150Mm

Welded Razor Wire Mesh Description

Welded razor wire mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll form for transport.

Welded Razor Wire Mesh is used in operations to pave the field after the installation of a blade barrier.

This product can protect you and your property, and ensures the safety of the protective barriers.

Welded Razor Wire Mesh Basic Information
1.

Welded razor wire mesh, BTO-22 or BTO-12, mesh size: 100 mm × 100 mm, panel size: 2 meter × 3 meter.
2.

Welded razor wire and the T-shaped poles to cover 1800 mm high × 125 m long.
3.

120 m length and 500 mm coil diameter welded razor wire mesh on top of a palisade fence

4.

Welded razor mesh 2.4 m height × 500 m length and 1.8 m height × 500 m length.
5.

Welded razor wire mesh diamond shape, BTO-22 and BTO-30 with hole aperture 75 mm × 150 mm, HDG finish, 1.2 m × 6 m.
6.

Welded razor wire mesh with height of 3 m and length 1000 m.

Welded Razor Wire Mesh Detailed Data Techinique

Reference
Number		 Thickness
mm		 Wire Dia.
mm		 Barb Length
mm		 Barb Width
mm		 Barb Spacing
mm
BT0-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BT0-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BT0-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BT0-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2
Razor Wire Specification:
Outside Diameter
No. of Loops
Standard Length per Coil
Type
Notes
450mm
33
8M
CBT-65
Single coil
500mm
41
10M
CBT-65
Single coil
700mm
41
10M
CBT-65
Single coil
960mm
53
13M
CBT-65
Single coil
500mm
102
16M
BTO-10.15.22
Cross type
600mm
86
14M
BTO-10.15.22
Cross type
700mm
72
12M
BTO-10.15.22
Cross type
800mm
64
10M
BTO-10.15.22
Cross type
960mm
52
9M

Welded Razor Wire Mesh Characters

  1. It is almost impossible to climb.
  2. High-strength steel core very difficult to cut off.
  3. Powerful security fence barriers neat appearance.
  4. No secondary use, so he will not be stolen.
  5. Extremely simple to install, needs three to four to install molding.

Razor Barbed Wire Mesh Usage

  • Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.
  • Also used for division of railway, highway, agricultural fencing, etc.
