Hot Dip Galvanized Welded Razor Wire 1m-2.5m Diamond Mesh
Hot Dip Galvanized Welded Razor Wire 1m-2.5m Diamond Mesh
Hot Dip Galvanized Welded Razor Wire 1m-2.5m Diamond Mesh
Hot Dip Galvanized Welded Razor Wire 1m-2.5m Diamond Mesh
Specifications
Brand Name :
XR
Model Number :
WRW
Certification :
CE
Place of Origin :
CHINA
MOQ :
6 Square Meters
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 Tons Per Month
Delivery Time :
7-10 days after get the payment
Packaging Details :
Pallet
Product :
Welded Razor Wire
Material :
Hot Dip Galvanized
Barb Length :
10Mm-65Mm
Width :
2.5m / 3.0m / 6.0m Etc
Coil Diameter :
100MM-960MM
Application :
Security And Safety
MOQ :
500 Liner Meter
Panel Szie :
1.2x2.4M
Description

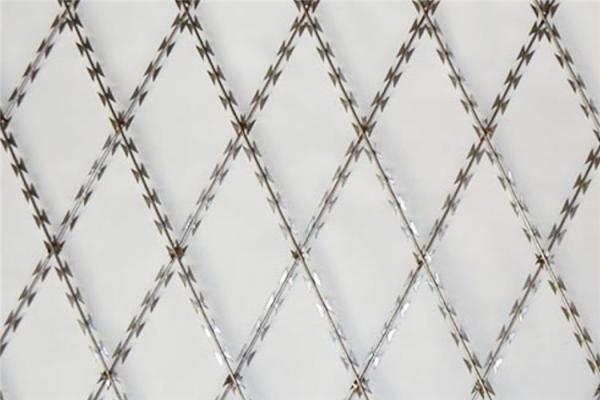

Hot Dip Galvanized 1M-2.5M Welded Razor Wire Diamond Mesh

Product Introduction

Welded Razor Wire Diamond Mesh is a kind of galvanized steel wire tape, with two-sided blades with symmetrical arrangement. The galvanized steel wire diameter is of 2.5 millimeters, reinforced to 5mm in diameter. The most important feature of razor concertina wire is that its construction is able to maintain its structure.


Razor wire mesh meterial: hot dipped galvanized steel sheet and wire, stainless steel sheet and wire: AISI430 and AISI304.

TYPE:Blade Types for Galvanized Razor Wire: BT-12, BT-15, BT-22, BT-25, BT-30, BT-60, BT-65, etc.
SIZE:Sizes of Hot-dipped Galvanized Razor Wire: Different length from 450mm to 960mm while the length and the diameter of the razor wire can be customized.

Hot Dip Galvanized Welded Razor Wire 1m-2.5m Diamond Mesh

Product Detail Data Technique
1. Square Hole Size:100mmx100mm,150mmx150mm,200mmx200mm.
2. Diamond Hole Size:75mmx150mm,100mmx200mm,150mmx300mm.
Gauge diameter
Hole shape
Mesh width
Suited blade specifications
100mm×100mm
Square hole,diamond
1.2m ~ 2.4m
BTO-10.12.18.22.28.30, CBT-60.65
100mm×150mm
Square hole,diamond
1.2m ~ 2.4m
BTO-10.12.18.22.28.30, CBT-60.65
100mm×200mm
Square hole,diamond
1.2m ~ 2.4m
BTO-10.12.18.22.28.30, CBT-60.65
150mm×300mm
Square hole,diamond
1.2m ~ 2.4m
BTO-10.12.18.22.28.30, CBT-60.65

Product Benifits
Security fence barriers neat appearance.
High-strength steel core very difficult to cut off.
Extremely simple to install, needs three to four to install molding
It is almost impossible to climb.

Product Application

Razor type barbed wire is widely used in

high-grade residence district,

warehouses,

prisons

and in military fields

and other sites requiring severe fencing

and security.

Razor wire can be classified into straight type razor wire,

concertina coils, crossed type and flat type according to the installation models.

Product Feature

Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

Hot Dip Galvanized Welded Razor Wire 1m-2.5m Diamond Mesh

Packing Details:
Plastic paper inside,
Delivery:
15 Days after order confirmation
