6m Length 2.5mm Diameter Straight Razor Wire Concertina
6m Length 2.5mm Diameter Straight Razor Wire Concertina
6m Length 2.5mm Diameter Straight Razor Wire Concertina
6m Length 2.5mm Diameter Straight Razor Wire Concertina
Specifications
Brand Name :
XR
Model Number :
CRBW
Certification :
CE
Place of Origin :
CHINA
MOQ :
One Piece
Price :
Negotiated
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
5000 Pieces Per Week
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Water-Proof Plastic Film And Then Pallets
Product Name :
Welded Razor Wire Mesh Sheet
Straight Wire :
2.5Mm Diameter
Type :
Welded
Character :
High-Strength
Blade Type :
BTO-22 CBT-65 CBT-30
Length :
3M 5M 6M Or Customized
Material :
Galvanized And Stainless Steel
Description

3M 5M 6M Length Welded Razor Wire Mesh Sheet / Straight Razor Wire 2.5Mm Diameter

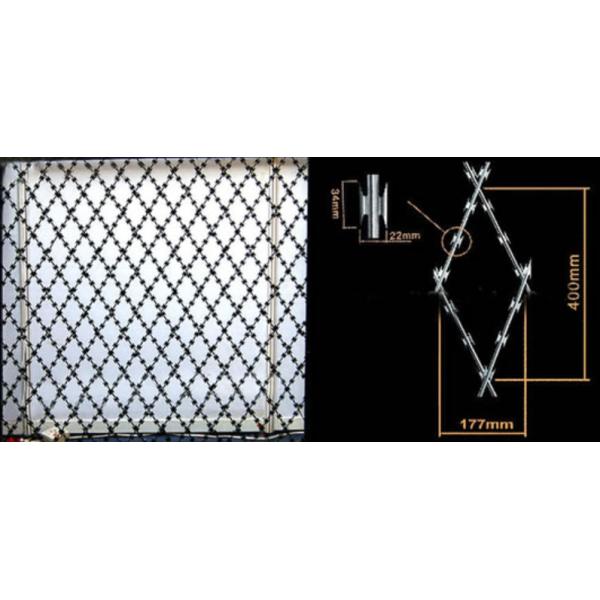

Welded Razor Wire Mesh Sheet Detailed Parameters

Material Core wire: Hot dipped galvanized Steel Wire,
Electric galvanized Iron Wire,
Stainless steel wire
Blade Tape: Hot dipped galvanized Iron Plate
Stainless steel plate
Height×Length 1.8m×6m
2.4m×6m
Wire Diameter 2.4mm, 2.5mm, 2.6mm
Blade Thickness 0.4mm, 0.45mm, 0.5mm
Barbed Type BTO-22, BTO-30, CBT-65
Mesh Size Diamond mesh size : 75x150mm, 100x200mm, 150x300mm
Oblique Square mesh size : 150mm, 200mm, 300mm
Rectangular meshes: 75 mm × 150 mm, 50 mm × 200 mm, 100 mm × 150 mm.

6m Length 2.5mm Diameter Straight Razor Wire Concertina

Welded Razoe Wire Mesh Sheet Brief Information

  1. This security fence is designed to prohibit entry and climbing for its sharp blades.
  2. It is used to protect commercial, industrial and government institutions.
  3. The product is virtually impossible to climb or cut with standard tools.
Suface Type Min Max
Hot dipped galvanized 50g/m2 366g/m2
Powder coating 60μm 120μm

Welded Razor Wire Mesh Panel Size

100mm×100mm Hole shape Square Hole,Diamond ,Mesh Width 1.2m ~ 2.4m Suited blade specifications BTO-10.12.18.22.28.30, CBT-60.65

100mm×150mm Hole shape Square Hole,Diamond ,Mesh Width 1.2m ~ 2.4m Suited blade specifications BTO-10.12.18.22.28.30, CBT-60.65

100mm×200mm Hole shape Square Hole,Diamond ,Mesh Width 1.2m ~ 2.4m Suited blade specifications BTO-10.12.18.22.28.30, CBT-60.65

150mm×300mm Hole shape Square Hole,Diamond ,Mesh Width 1.2m ~ 2.4m Suited blade specifications BTO-10.12.18.22.28.30, CBT-60.65

other nets hole can according to customers' special needs)

Welded Razor Wire Mesh Other Blade Specification

1. Hot galvanized sheet and stainless steel sheet 304 316 and so on
2. Galvanized wire(Electro galvanized and hot dipped galvanized)

Blade Specification can be produced according to your request
Reference Number Thickness Wire Dia Barb
Length		 Barb
Width		 Barb
spacing
BTO-10 0.5±0.05 2.5±0.1 10±1 13±1 26±1
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-18 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-28 0.5±0.05 2.5 28 15 45±1
BTO-30 0.5±0.05 2.5 30 18 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2

Welded Razor Wire Mesh Fence Benifits

  1. Welded Razor Mesh Fence is a new form of razor barbed wire mesh for security.
  2. It with practicality blade and the feature
  3. looks very beautiful.
  4. It can be used for guard net of fence, doors and windows
  5. and also can be used in military.
  6. The specification can be designed as the customers’ need.

Welded Razor Wire Mesh Sheet Usage

Razor mesh is installed in various parts of the world's

  1. airports
  2. military bases
  3. Mining area
  4. water substation
  5. the border fence
  6. oil depots
  7. factories and so on

6m Length 2.5mm Diameter Straight Razor Wire Concertina
