BTO-22 Galvanized Military Concertina Stainless Steel Razor Wire
BTO-22 Galvanized Military Concertina Stainless Steel Razor Wire
BTO-22 Galvanized Military Concertina Stainless Steel Razor Wire
BTO-22 Galvanized Military Concertina Stainless Steel Razor Wire
Specifications
Brand Name :
XR
Model Number :
Razor Wire
Certification :
CE
Place of Origin :
CHINA
MOQ :
One Meter
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
600 MT Per Month
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
Material :
Galvanized Or Stainless Steel
Diameter Of Coil :
450Mm/500Mm/600Mm/700Mm/800Mm/900Mm
Diameter Of Inner Razor Wire :
2.5Mm
Color :
Silver Or Green
Razor Blade SRazor Blade Styletyle :
BTO-22/BTO-11/BTO-30/CBT-60/CBT-65
Weight Of Coil :
5Kg/7Kg/8Kg/9Kg/10Kg/11Kg/12Kg
Description

BTO-22 Galvanized And Stainless Steel Military Concertina Razor Wire

Razor Barbed Wire Instruction

Materials: Galvanized steel wire, stainless steel wire, etc

Weaving and Characteristics: Be woven into product;fastness and good appearance .

Uses: security razor wire is widely used by many countries in military field, prisons, detention houses,

government buildings and other national security facilities. It has apparently become the most popular

high-class fencing wire for not only military and national security applications, but also for cottage and

society fence, and other private buildings.

Galvanized Razor Barbed Wire Specifications

Reference No. Thickness Wire diameter Barbe length Barbe length Barbe spacing
BTO-10 0.5 +/- 0.05 2.5 +/- 0.1 10 +/- 1 13 +/- 1 26 +/- 1
BTO-12 0.5 +/- 0.05 2.5 +/- 0.1 15 +/- 1 15 +/- 1 26 +/- 1
BTO-18 0.5 +/- 0.05 2.5 +/- 0.1 18 +/- 1 15 +/- 1 33 +/- 1
BTO-22 0.5 +/- 0.05 2.5 +/- 0.1 22 +/- 1 15 +/- 1 34 +/- 1
BTO-28 0.5 +/- 0.05 2.5 28 15 45 +/- 1
BTO-30 0.5 +/- 0.05 2.5 30 18 45 +/- 1
CBT-60 0.6+/- 0.05 2.5 +/- 0.1 60 +/- 2 32 +/- 1 100 +/- 2
CBT-65 0.6 +/- 0.05 2.5 +/- 0.1 65 +/- 2 21 +/- 1 100 +/- 2

Outside Diameter No. of Loops Standard Length per Coil Type Notes
450mm 33 8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 53 13M CBT-65 Single coil
500mm 102 16M BTO-10.15.22 Cross type
600mm 86 14M BTO-10.15.22 Cross type
700mm 72 12M BTO-10.15.22 Cross type
800mm 64 10M BTO-10.15.22 Cross type
960mm 52 9M BTO-10.15.22 Cross type

Galvanized Razor Barbed Wire Processing

High quality galvanized razor barbed wire is usually made of galvanized steel blade or stainless steel blade.

Two pieces of stainless steel razor wire or zinccoated razor wire can be bounded together

by clips to make it stronger. The spiral intersecting barbed wire presents anintersecting

shape after opening with beautiful outlook and practical property.

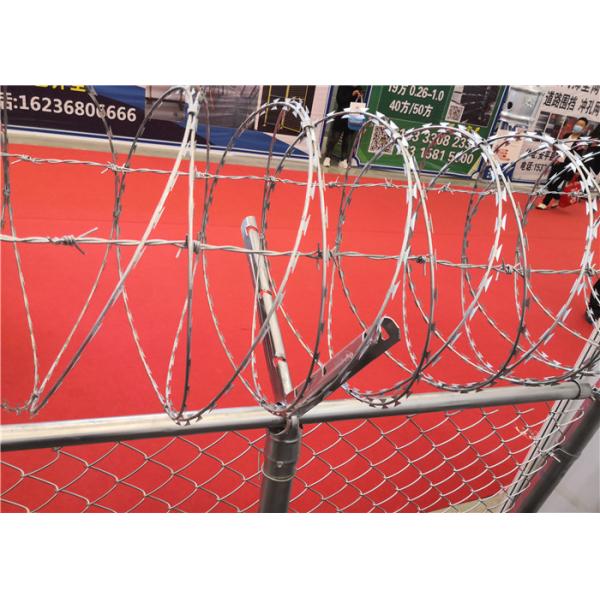

Galvanized Razor Wire Install Case

BTO-22 Galvanized Military Concertina Stainless Steel Razor Wire
