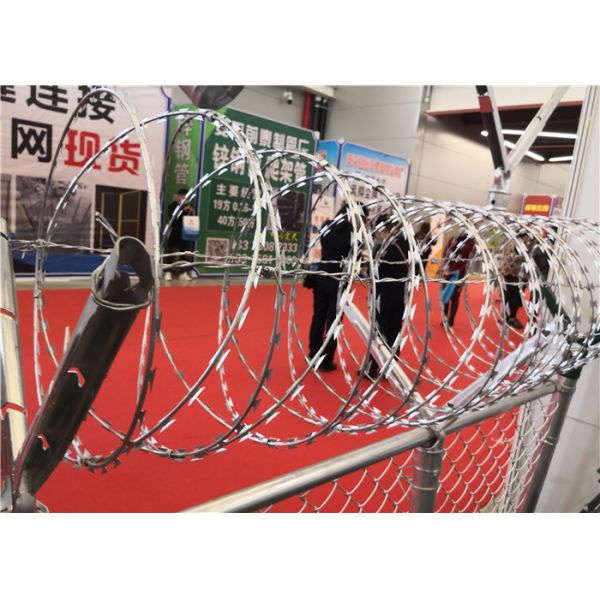

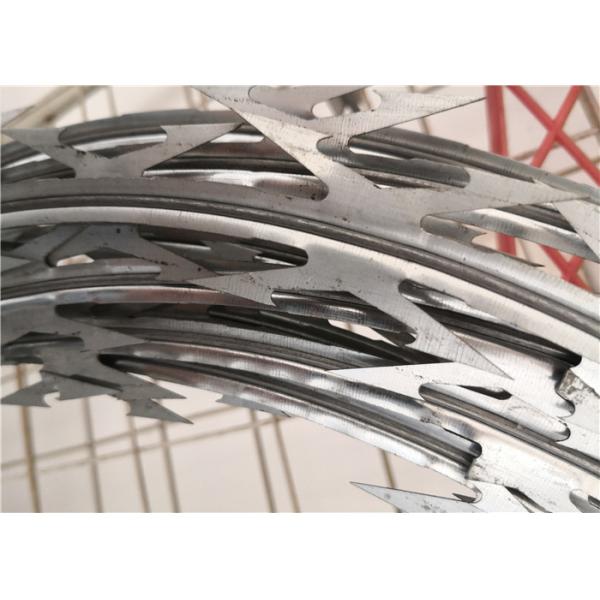

500mm Coil Diameter Galvanized Concertina Barbed Wire
500mm Coil Diameter Galvanized Concertina Barbed Wire
500mm Coil Diameter Galvanized Concertina Barbed Wire
500mm Coil Diameter Galvanized Concertina Barbed Wire
Specifications
Brand Name :
XR
Model Number :
CRW
Certification :
CE
Place of Origin :
CHINA
MOQ :
10 KG
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500 Ton Per Week
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Package film for each piece,Several pieces packed in 1 carton
material :
Stainless Steel,Low Carbon Wire
Weight :
5Kg/7Kg/8Kg/9Kg/10Kg/11Kg/12Kg/25Kg
Charicter :
Hard And Beautiful And Sharp;Safety Protect Method
Zinc Coating :
40-280g/m2
Stretched Length :
5-15M
Usage :
Security And Safety
Description

Concertina Razor Wire Razor Barbed Wire Fencing 500mm Coil Diameter

Razor Barbed Wire Specification

Reference
Number		 Thickness
mm		 Wire Dia.
mm		 Barb Length
mm		 Barb Width
mm		 Barb Spacing
mm
BT0-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BT0-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BT0-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BT0-30 0.5±0.05 2.5±0.1 30 18 45±1
CBT-60 0.6±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.6±0.05 2.5±0.1 65±2 21±1 100±2

Outer diameter No.of Loops

Standard Length

per Coil

 Type Notes
450mm 33 7M-8M CBT-65 Single coil
500mm 41 10M CBT-65 Single coil
700mm 41 10M CBT-65 Single coil
960mm 54 11M-15M CBT-65 Single coil
500mm 102 15M-18M BTO-12.18.22.28.30 Cross type
600mm 86 13M-16M BTO-12.18.22.28.30 Cross type
700mm 72 12M-15M BTO-12.18.22.28.30 Cross type
800mm 64 13M-15M BTO-12.18.22.28.30 Cross type
960mm 52 12M-15M BTO-12.18.22.28.30

Cross type

Razor Barbed Wire Feature

Galvanized Barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.

Razor Wire Packing Details

1. Compression rolls, 5rolls, 10rolls, or more rolls as one bundle
2. Water-proof paper inside with woven bag outside
3. 1roll, 3rolls or 5rolls in one carton
4. As customer request.

Razor Barbed Wire Application

Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.

Also used for division of railway, highway, agricultural fencing, etc.

Our Service

1.Long-term technical consulting and technical services, always ready to answer customer technical problems

2.High quality products with most competitive price

3.Arrange the shipment in time

4.OEM accepted. You can offer your design and we will produce as required.

5.Your visits to company welcomed

BTO-22 Details

500mm Coil Diameter Galvanized Concertina Barbed Wire

CBT-60 Details

500mm Coil Diameter Galvanized Concertina Barbed Wire

Trade Terms

Trade terms: FOB, CNF, CIF,

Payment terms: 30%T/T as deposit , L/C, Western Union,

MOQ:20tons

Port: TIANJIN

Sample time: 1-3days

Lead time: 10days depend on the final order quantity

Shipment: By sea or airport

Supply capability:9000tons/month

Sample availability: Yes
