100X100mm Welded Blade Wire Fencing Made By Straight Blade Netting
100X100mm Welded Blade Wire Fencing Made By Straight Blade Netting
100X100mm Welded Blade Wire Fencing Made By Straight Blade Netting
100X100mm Welded Blade Wire Fencing Made By Straight Blade Netting
Specifications
Brand Name :
XR
Model Number :
SLW
Certification :
CE
Place of Origin :
China
MOQ :
One Piece
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
50000 Pieces Per Week
Delivery Time :
5-8 Days After Get The Payment
Packaging Details :
Package Film For Each Piece,Several Pieces Packed In 1 Carton
Name :
Welded Razor Wire Fence
Technique :
Welded
Application :
For Security Fence
Type :
Straight Blade
Surface Treatment :
Stainless Steel ,Galvanized Or Coating
Hole Shape :
Square Or Diamond
Length :
1-6 Meters
Opening Size :
75*150mm,100*100mm,100*200mm,150*300mm Or As Your Request
Description

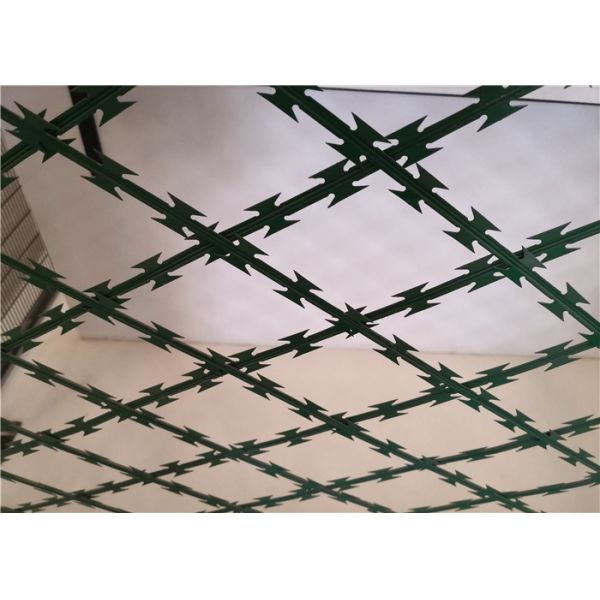

Welded Razor Wire Fence Made By Straight Blade Netting Welded Together

Welded Razor Barbed Wire Mesh Description

​
Welded Razor Wire Mesh Fence Introduction:The razor mesh fence is a new type of safety fence welded by straight type razor wire. It is usually welded into a square or diamond shape. This kind of razor wire fence is impossible to climb and cut because it has sharp barbs and strong wire. The typical feature of razor mesh fence is that it’s a complete security fence requiring no additional top options when installed.

High tensile core wires are welded in a diamond shape or square shape with razor blades, acting as additional deterrent or means on entrapment. This creates an effective barrier which is not just impossible to climb, but resistant to cutting as well.

Welded Razor Wire Mesh Fence Hole Size
100X100mm Welded Blade Wire Fencing Made By Straight Blade Netting

Welded Razor Barbed Wire Mesh Benifits

1 it is almost impossible to climb
2 high-strength steel core very difficult to cut off
3 powerful security fence barriers neat appearance
4 no secondary use, so he will not be stolen
5 extremely simple to install, needs three to four to install molding

Straight Line Razor Blade Wire Panel Sizes

Panel Height Panel Length Blade Type Mesh Hole(Square) Mesh Hole(Diamond) Square mesh with wire dia.
1.2m 2-15m All can be done 50×100 75×150 4.0mm
1.5m 2-15m All can be done 50×150 150×300 4.5mm
1.8m 2-15m All can be done 75×150 100×100 5.0mm
2.0m 2-15m All can be done 150×300 100×200
2.1m 2-15m All can be done 100×100
2.4m 2-15m All can be done 100×150

Straight Line Razor Blade Wire Spcification

Reference Number Thickness(mm) Wire Dia.(mm) Barb Length(mm) Barb Width(mm) Spacing(mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2

Welded Razor Wire Mesh Application


Welded razor wire is mainly used for garden apartment, office unit, railway, highway, industry, agriculture, forest protection, military field,prison isolati

Trade Item

Payment Terms T/T
Delivery Terms FOB or CFR
Payment Currency USD,EUR,CNY
Port XinGang,china
Payment Details T/T 30% in advance as deposit, the balance before shiping
