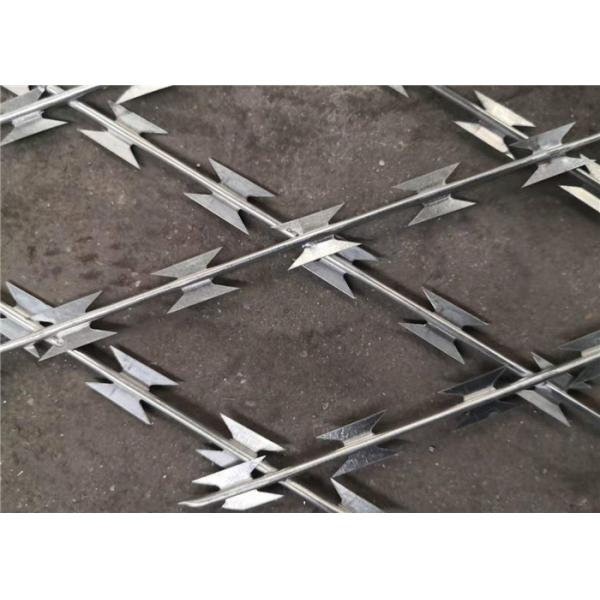

100x200mm Square Straight Line Razor Wire Concertina
100x200mm Square Straight Line Razor Wire Concertina
100x200mm Square Straight Line Razor Wire Concertina
100x200mm Square Straight Line Razor Wire Concertina
Specifications
Brand Name :
XR
Model Number :
SLW
Certification :
CE
Place of Origin :
China
MOQ :
One Piece
Price :
Negotiated
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
50000 Pieces Per Week
Delivery Time :
5-8 Days After Get The Payment
Packaging Details :
Package Film For Each Piece,Several Pieces Packed In 1 Carton
Type :
Straight Line
Usage :
For Security Fence
Surface Treatment :
Stainless Steel ,Galvanized Or Coating
Technique :
Welded
Name :
Razor Barbed Wire Mesh
Length :
1-6 Meters
Hole Size :
75*150mm,100*100mm,100*200mm,150*300mm Or As Your Request
Hole Shape :
Square Or Diamond
Description

Straight Line Razor Blade Wire Galvanized Welded Razor Barbed Wire Mesh

Welded Razor Barbed Wire Mesh Description

Straight Line Razor Wire Welded Type is a kind of barbed wire but in the shape of straight line which is usually fixed at the top of the wire mesh fences or walls to prevent intruders and thieves from entering the places. It has features of easy installation, aesthetic appearance and excellent protective performance.

Material:

1.hot galvanized sheet and stainless steel sheet 304 316 and so on

2.Galvanized wire(Electro galvanized and hot dipped galvanized)

Straight Line Razor Blade Wire Spcification

Reference Number Thickness(mm) Wire Dia.(mm) Barb Length(mm) Barb Width(mm) Spacing(mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2


Straight Line Razor Blade Wire Panel Spcifications

Panel Height Panel Length Blade Type Mesh Hole(Square) Mesh Hole(Diamond) Square mesh with wire dia.
1.2m 2-15m All can be done 50×100 75×150 4.0mm
1.5m 2-15m All can be done 50×150 150×300 4.5mm
1.8m 2-15m All can be done 75×150 100×100 5.0mm
2.0m 2-15m All can be done 150×300 100×200
2.1m 2-15m All can be done 100×100
2.4m 2-15m All can be done 100×150

Welded Razor Barbed Wire Mesh Characters

  • Easy to install
  • Can Install other products for matching
  • Can be installed according to the actural situation
  • Has a strong intimidation and blocking effect,both beatiful and effective
  • Anti-aging Anti-Sun

Welded Razor Wire Mesh Application


Welded razor wire is mainly used for garden apartment, office unit, railway, highway, industry, agriculture, forest protection, military field,prison isolati

Welded Razor Wire Mesh Our Advantage

  • Advance machine for this fence,PVC coated line,powder coating line
  • All part do in our factory,quality control and delivery time is best
  • If need,free design,free sample can be provide
  • We have injection machine to do the block by ourself
  • 18years factory,11years export experience

Trade Item



Delivery Terms :FOB, CIF
Payment Currency:USD, EUR, AUD,JPY, CAD, GBP, CNY
Payment Item:T/T, L/C, PayPal, Escrow
Nearest Port:Xingang port,Qingdao port
Delivery Time:General after 25days upon received T/T30% advance payment
Popular Payment detail: T/T 30% in advance as deposit, the balance against received the copy of B/L.
