Stainless Steel 300mm BTO-22 Razor Wire Concertina
Stainless Steel 300mm BTO-22 Razor Wire Concertina
Stainless Steel 300mm BTO-22 Razor Wire Concertina
Stainless Steel 300mm BTO-22 Razor Wire Concertina
Specifications
Brand Name :
XR
Model Number :
CRBW
Certification :
CE
Place of Origin :
China
MOQ :
One Roll
Price :
Negotiated
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Supply Ability :
5000 MT Per Month
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Water-Proof Plastic Film And Then Pallets
Razor Type :
Cross Razor
Blade Length :
22Mm+/-1Mm
Material :
Stainless Steel 304
Blade Width :
15Mm+/-1Mm
Coil Diameter :
300Mm
Blade Thickness :
0.5Mm+/-0.05Mm
Description

BTO-22 30Cm Coil Stainless Steel Concertina Razor Wire

Stainless Steel 300mm Coil Concertina Razor Barbed Wire BTO-22 Specification

Blade type

BTO-22

Core wire diameter

2.5mm

Blade length

22mm

Blade Width

15mm

Blade Distance

34mm

Coil Diameter

300mm

  1. Blade type: BTO-22.

  2. Core wire diameter: 2.5 mm.

  3. Blade length: 22 mm.

  4. Blade space: 4 mm end to end, 34 mm center to center.

  5. Number of loops: 56.

  6. Size: coil diameter 650 mm × length 8 m with 5 clips.

  7. Size: coil diameter 1 m × length 12 m with 5 clips

  8. Blade type: BTO-22.

  9. Coil diameter: 300 mm.

  10. Number of loops: 56.

  11. Clips: 3 clips per 8 m or 9 m.​​

​Stainless Steel 300mm Coil Concertina Razor Barbed Wire BTO-22 Features

  • Various type can be chose,concertina coil,flat coil,stright razor wire,single coil,etc

  • Various material can be chose,galvanized,stainless steel,with various color

  • Non-climbing

  • Quick and easy for installation

Stainless Steel 300mm 450mm,500mm Coil Concertina Razor Barbed Wire BTO-22 application:Mainly used for security protection in Prison,Airport,Copper,Mining,Border,Military Protection,Defence,etc

​Stainless Steel 300mm Coil Concertina Razor Barbed Wire BTO-22 Other Coils Specification

Specification of concertina razor wire

Outside diameter

No.of loops

Standard length per coil

Type

Notes

450mm

33

7-8M

CBT-60.65

Single coil

500mm

56

12-13m

CBT-60.65

Single coil

700mm

56

13-14m

CBT-60.65

Single coil

960mm

56

14-15m

CBT-60.65

Single coil

450mm

56

8-9m(3 clips)

CBT-10.10.18.22.28.30

Cross type

500mm

56

9-10m(3 clips)

CBT-10.10.18.22.28.30

Cross type

600mm

56

10-11m(3 clips)

CBT-10.10.18.22.28.30

Cross type

600mm

56

8-10m(5clips)

CBT-10.10.18.22.28.30

Cross type

700mm

56

10-12m(5 clips)

CBT-10.10.18.22.28.30

Cross type

800mm

56

11-13m(5 clips)

CBT-10.10.18.22.28.30

Cross type

900mm

56

12-14m(5 clips)

CBT-10.10.18.22.28.30

Cross type

960mm

56

13-15m(5clips)

CBT-10.10.18.22.28.30

Cross type

980mm

56

14-16m(5 clips)

CBT-10.10.18.22.28.30

Cross type

Stainless Steel 300mm BTO-22 Razor Wire Concertina

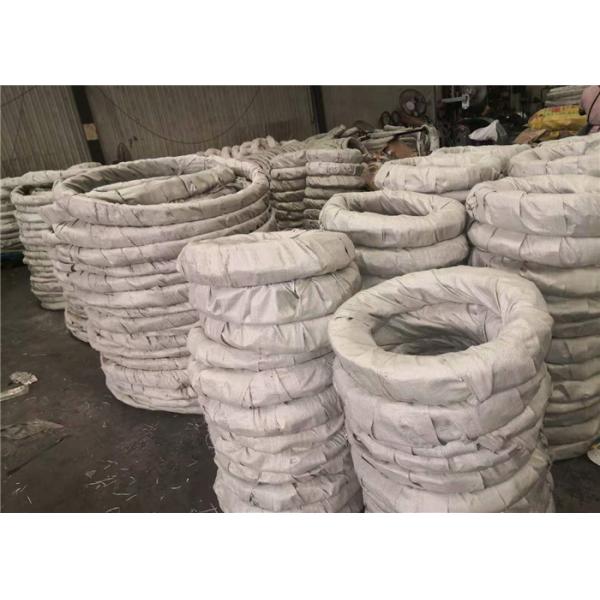

Packing Details
Stainless Steel 300mm BTO-22 Razor Wire Concertina
