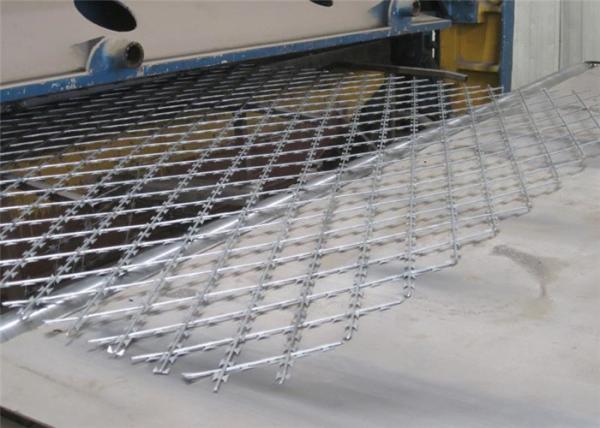

150 × 300mm Diamond 2.5mm Razor Blade Wire Fence
150 × 300mm Diamond 2.5mm Razor Blade Wire Fence
150 × 300mm Diamond 2.5mm Razor Blade Wire Fence
150 × 300mm Diamond 2.5mm Razor Blade Wire Fence
Specifications
Brand Name :
XR
Model Number :
CRBW
Certification :
CE
Place of Origin :
China
MOQ :
One Piece Or One Roll
Price :
Negotiated
Payment Terms :
T/T, Western Union, L/C, MoneyGram
Supply Ability :
3000 Rolls Per Week
Delivery Time :
7-10 Days After Get The Payment
Packaging Details :
Pallet
Color :
Silver,Green,Light Green
Hole Shape :
Diamond,Square Type
Type :
Welded
Wire Diameter :
2.5+/-0.1mm
Hole Size :
150x300Mm
Panel Size :
1 M x 2 M,2 M x 4 M Or Customized
Description

150 × 300 Mm Diamond Type Razor Wire Mesh Fence / Welded Razor Wire Mesh Fence

Product Description

Razor Wire Mesh Fence

Welded razor mesh fence is a new form of razor bared wire mesh for security with practicality blade and the feature looks very beautiful. It can be used for guard net of fence, doors and windows and also can be used in military. The specification can be designed as the customers' needs.

Detailed Product Description

1)Razor Wire is classified into straight razor wire and concertina coils with different blade types and sizes.

2)Forms of corrosion resistance include electric galvanizing, hot-dipped zinc plating, PVC coated, PE coated

Razor Blade Type

Reference Number Thickness(mm) Wire Dia.(mm) Barb Length(mm) Barb Width(mm) Spacing(mm)
BTO-12 0.5±0.05 2.5±0.1 12±1 15±1 26±1
BTO-15 0.5±0.05 2.5±0.1 18±1 15±1 33±1
BTO-22 0.5±0.05 2.5±0.1 22±1 15±1 34±1
BTO-30 0.5±0.05 2.5±0.1 30±1 18±1 45±1
CBT-60 0.5±0.05 2.5±0.1 60±2 32±1 100±2
CBT-65 0.5±0.05 2.5±0.1 65±2 21±1 100±2

Product Panel Spcifications

Panel Height Panel Length Blade Type Mesh Hole(Square) Mesh Hole(Diamond) Square mesh with wire dia.
1.2m 2-15m All can be done 50×100 75×150 4.0mm
1.5m 2-15m All can be done 50×150 150×300 4.5mm
1.8m 2-15m All can be done 75×150 100×100 5.0mm
2.0m 2-15m All can be done 150×300 100×200
2.1m 2-15m All can be done 100×100
2.4m 2-15m All can be done 100×150

Surface Treatment Type

  • Hot-dipped galvanized

  • Galvanized material then Powder coated

  • Galvanized material then Electrophoretic paint

Welded razor mesh is a multi-functional, high security mesh fencing made of straight-blade netting welded together, packaging into a roll form for transport. Razor wire mesh is used in operations to pave the field after the installation of a blade barrier. This product can protect you and your property, and ensures the safety of the protective barriers.

Product Application

Welded Razor Wire Mesh Application

Welded razor wire is mainly used for garden apartment, office unit, railway, highway, industry, agriculture, forest protection, military field,prison isolation protection and so on.

Competitive Advantages

  • Guarantee/Warranty

  • International Approvals

  • Packaging

  • Price

  • Product Features

  • Product Performance

  • Prompt Delivery

  • Quality Approvals

  • Reputation

  • Service

  • Small Orders Accepted

150 × 300mm Diamond 2.5mm Razor Blade Wire Fence
