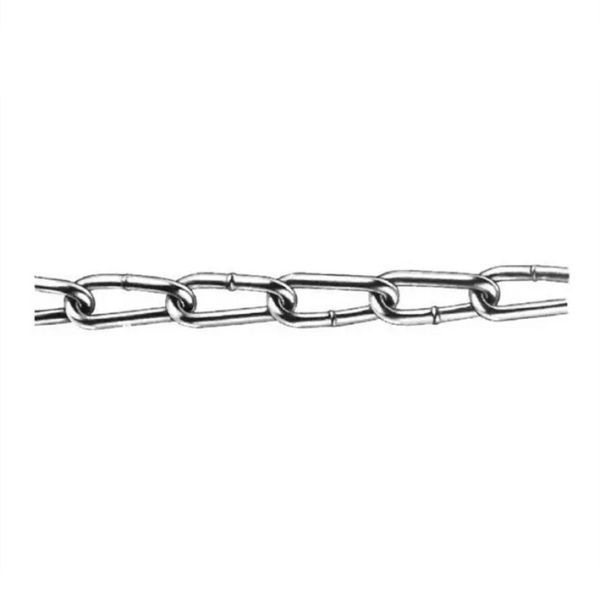

NACM2010 MACHINE CHAIN – TWIST LINK
NACM2010 MACHINE CHAIN – TWIST LINK
Specifications
Trade Size(mm) :
4 3 2 1 1/0 2/0 3/0 4/0 5/0
Material Diameter(in) :
0.120 0.135 0.148 0.162 0.177 0.192 0.207 0.218 0.250
Material Diameter(mm) :
3.0 3.4 3.8 4.1 4.5 4.9 5.3 5.5 6.4
Working Load Limit(Max.)(lbs) :
205 255 310 370 440 520 605 670 880
Working Load Limit(Max.)(kg) :
93 116 141 168 200 236 274 304 400
Min. Breaking Force(lbs) :
820 1,020 1,240 1,480 1,760 2,080 2,420 2,680 3,520
Min. Breaking Force(kN) :
3.64 4.53 5.51 6.58 7.82 9.24 10.76 11.91 15.64
Nominal Inside Length(in) :
0.52 0.56 0.58 0.59 0.68 0.73 0.80 0.89 1.00
Nominal Inside Length(mm) :
13.1 14.2 14.7 15.0 17.2 18.5 20.3 22.5 25.3
Nominal Inside Width(in) :
0.17 0.20 0.21 0.24 0.26 0.28 0.31 0.32 0.37
Nominal Inside Width(mm) :
4.3 5.1 5.3 6.1 6.6 7.1 7.9 8.1 9.4
Description
NACM2010 MACHINE CHAIN – TWIST LINK

Short Link Chain

Our short link chain meets the latest guidelines of the National Association of Chain Manufacturers (NACM). Commonly used for tail gates, agricultural implements, and industrial equipment, this chain offers reliable performance and durability.

  • Compliant with NACM guidelines
  • Ideal for tail gates, agricultural, and industrial applications
  • Durable low carbon steel construction
  • Design factor 4:1 for enhanced safety
  • Available in self-color, zinc plated, and hot dip galvanized finishes

Target Industries: Agriculture, Industrial Equipment, Transportation

Typical Applications: Tailgates, securing equipment, general-purpose connections

Product Attributes

FOB Price 0

Technical Specifications

Trade Size(mm) Material Diameter(in) Material Diameter(mm) Working Load Limit(Max.)(lbs) Working Load Limit(Max.)(kg) Min. Breaking Force(lbs) Min. Breaking Force(kN) Nominal Inside Length(in) Nominal Inside Length(mm) Nominal Inside Width(in) Nominal Inside Width(mm)
4
3
2
1
1/0
2/0
3/0
4/0
5/0		 0.120
0.135
0.148
0.162
0.177
0.192
0.207
0.218
0.250		 3.0
3.4
3.8
4.1
4.5
4.9
5.3
5.5
6.4		 205
255
310
370
440
520
605
670
880		 93
116
141
168
200
236
274
304
400		 820
1,020
1,240
1,480
1,760
2,080
2,420
2,680
3,520		 3.64
4.53
5.51
6.58
7.82
9.24
10.76
11.91
15.64		 0.52
0.56
0.58
0.59
0.68
0.73
0.80
0.89
1.00		 13.1
14.2
14.7
15.0
17.2
18.5
20.3
22.5
25.3		 0.17
0.20
0.21
0.24
0.26
0.28
0.31
0.32
0.37		 4.3
5.1
5.3
6.1
6.6
7.1
7.9
8.1
9.4
Send your message to this supplier
Send Now

NACM2010 MACHINE CHAIN – TWIST LINK

Ask Latest Price
Product Detail
Trade Size(mm) :
4 3 2 1 1/0 2/0 3/0 4/0 5/0
Material Diameter(in) :
0.120 0.135 0.148 0.162 0.177 0.192 0.207 0.218 0.250
Material Diameter(mm) :
3.0 3.4 3.8 4.1 4.5 4.9 5.3 5.5 6.4
Working Load Limit(Max.)(lbs) :
205 255 310 370 440 520 605 670 880
Working Load Limit(Max.)(kg) :
93 116 141 168 200 236 274 304 400
Min. Breaking Force(lbs) :
820 1,020 1,240 1,480 1,760 2,080 2,420 2,680 3,520
