NACM2010 COIL CHAIN – STRAIGHT LINK
NACM2010 COIL CHAIN – STRAIGHT LINK
Specifications
Trade Size(mm) :
5/0(6.4)
Material Diameter(in) :
0.250(6.4)
Working Load Limit(Max.)(lbs) :
880(399)
Proof Test (Min.)(lbs) :
1,760(7.83)
Min. Breaking Force(lbs) :
3,520(15.64)

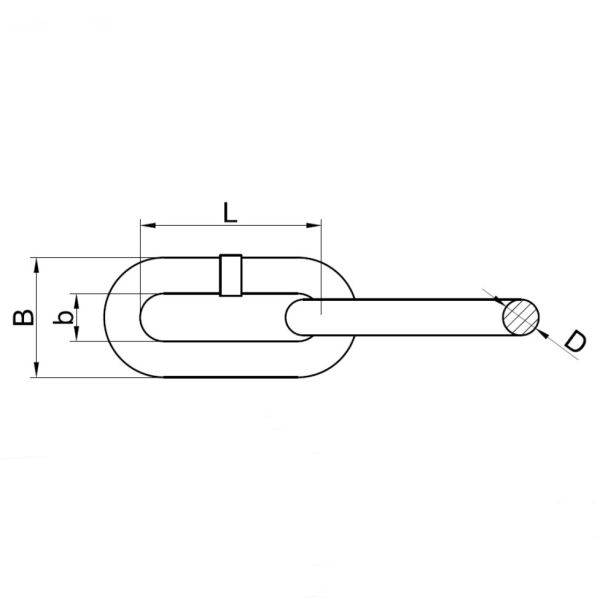

Nominal Inside Length(in) :
1.52(38.5)
Nominal Inside Width(in) :
0.44(11.20)
Description
NACM2010 COIL CHAIN – STRAIGHT LINK

Long Link Chain

Our long link chain meets the latest guidelines of the National Association of Chain Manufacturers (NACM). Commonly used for tail gates, safety chains, barriers, and animal ties, this chain offers reliable performance and durability.

Key Benefits:

  • Compliant with NACM guidelines
  • Versatile for various applications
  • Durable low carbon steel construction
  • Available in multiple finishes: Self-color, Zinc Plated, Hot Dip Galvanized
  • Design factor 4:1

Target Industries & Applications:

Agriculture, Construction, Transportation, Pet & Animal Care, General Safety & Security

Product Attributes

Material Low Carbon Steel
Finish Options Self-color, Zinc Plated, Hot Dip Galvanized
Design Factor 4:1

Technical Specifications

Trade Size(mm) Material Diameter(in) Working Load Limit(Max.)(lbs) Min. Breaking Force(lbs)
4(3.0) 0.120(3.0) 205(93) 820(3.64)
3(3.4) 0.135(3.4) 255(116) 1,020(4.53)
2(3.8) 0.148(3.8) 310(141) 1,240(5.51)
1(4.1) 0.162(4.1) 370(168) 1,480(6.58)
1/0(4.5) 0.177(4.5) 440(200) 1,760(7.82)
2/0(4.9) 0.192(4.9) 520(236) 2,080(9.24)
3/0(5.3) 0.207(5.3) 605(274) 2,420(10.76)
4/0(5.5) 0.218(5.5) 670(304) 2,680(11.91)
5/0(6.4) 0.250(6.4) 880(399) 3,520(15.64)
