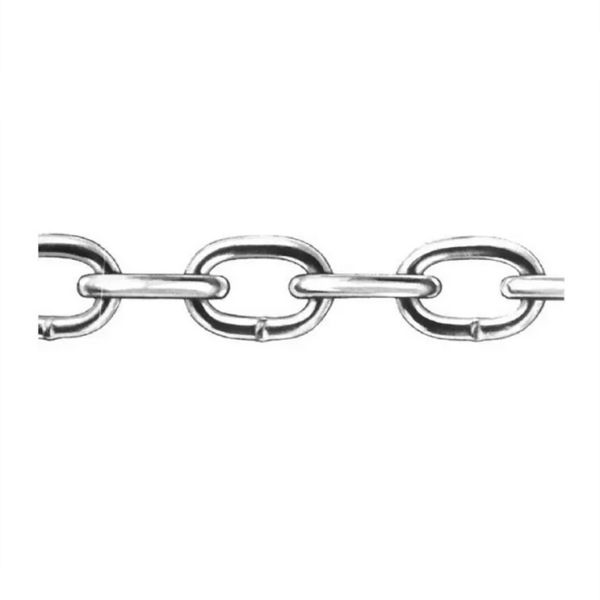

NACM2010 PASSING LINK CHAIN
NACM2010 PASSING LINK CHAIN
Specifications
Trade Size :
4/0
Material Diameter (mm) :
5.5
Material Diameter (in) :
0.218
Working Load Limit(Max.) (lbs) :
600
Working Load Limit(Max.) (kg) :
272
Proof Test (Min.) (lbs) :
1200
Proof Test (Min.) (kN) :
5.34
Min. Breaking Force (lbs) :
2,400
Min. Breaking Force (kN) :
10.68
Nominal Inside Length (in) :
0.875
Nominal Inside Length (mm) :
22.2
Nominal Inside Width (in) :
0.50
Nominal Inside Width (mm) :
12.7
Description

General Utility Chain

This general utility chain meets the latest guidelines of the National Association of Chain Manufacturers (NACM). Its wide design allows links to pass one another freely, eliminating the tendency to kink or knot. Ideal for general utility applications in farms and industry.

Key Benefits:

  • Wide design prevents kinking and knotting.
  • Suitable for various general utility applications.
  • Meets NACM guidelines.
  • Durable low carbon steel construction.

Target Industries: Agriculture, Industrial, General Utility.

Product Attributes

Material Low Carbon Steel
Design Factor 4 : 1
Finish Options Self-Color, Zinc Plated, Hot Dip Galvanized

Technical Specifications

Trade Size 2/0

Attribute Value
Material Diameter (mm) 4.9
Material Diameter (in) 0.192
Working Load Limit (Max.) (lbs) 450
Working Load Limit (Max.) (kg) 204
Proof Test (Min.) (lbs) 900
Proof Test (Min.) (kN) 4.00
Min. Breaking Force (lbs) 1,800
Min. Breaking Force (kN) 8.01
Nominal Inside Length (in) 0.875
Nominal Inside Length (mm) 22.2
Nominal Inside Width (in) 0.47
Nominal Inside Width (mm) 11.9

Trade Size 4/0

Attribute Value
Material Diameter (mm) 5.5
Material Diameter (in) 0.218
Working Load Limit (Max.) (lbs) 600
Working Load Limit (Max.) (kg) 272
Proof Test (Min.) (lbs) 1200
Proof Test (Min.) (kN) 5.34
Min. Breaking Force (lbs) 2,400
Min. Breaking Force (kN) 10.68
Nominal Inside Length (in) 0.875
Nominal Inside Length (mm) 22.2
Nominal Inside Width (in) 0.50
Nominal Inside Width (mm) 12.7
