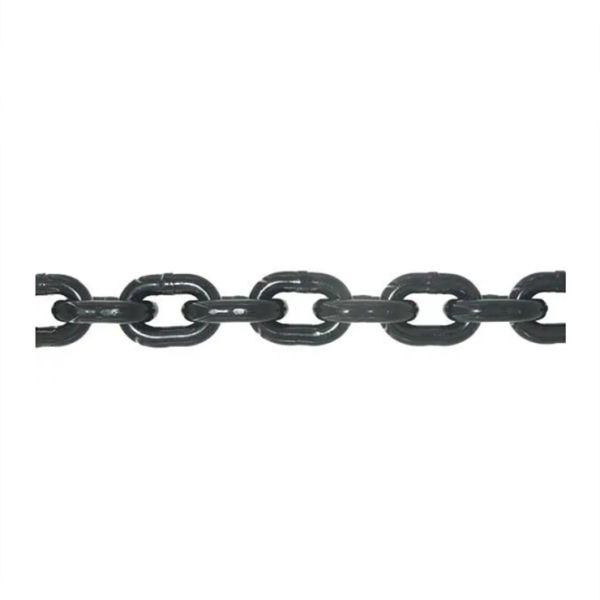

AS2321 SHORT LINK CHAIN GRADE T ( 80 )
AS2321 SHORT LINK CHAIN GRADE T ( 80 )
Specifications
Nominal Size(mm) :
32.0
Pitch(mm) :
96.0
External Width(mm) :
112.0
Internal Width(mm) :
48.0
Working Load Limit(t) :
31.5
Manufacturing Proof Force(kN) :
804.0
Min. Breaking Force(kN) :
1290.0
Min. Bend Deflection(mm) :
25.6
Weight(kg/m) :
22.357
Description
AS2321 SHORT LINK CHAIN GRADE T ( 80 )

Grade 80 Short Link Chain

Engineered for superior lifting performance, our Grade 80 short link chain conforms to the latest Australian Standard 2321. Manufactured from premium alloy steel and finished with black electrophoresis for enhanced durability.

Key Benefits:

  • High-quality alloy steel construction
  • Compliant with AS2321 standards
  • Durable black electrophoresis finish
  • Embossed with "RG80" and traceability code
  • 4:1 design factor for enhanced safety

Ideal for: Lifting, rigging, and material handling applications across various industries.

Product Attributes

FOB Unit: kg/m
Product MOQ: Unknown
FOB Price: 0
Packaging & Delivery: Unknown

Technical Specifications

Nominal Size(mm) Pitch(mm) External Width(mm) Internal Width(mm) Working Load Limit(t) Manufacturing Proof Force(kN) Min. Breaking Force(kN) Min. Bend Deflection(mm) Weight(kg/m)
4.0 12.0 13.2 5.2 0.5 12.6 20.1 3.2 0.349
5.0 15.0 16.5 6.5 1.0 24.5 39.3 4.0 0.545
6.0 18.0 21.0 9.0 1.1 28.3 45.2 4.8 0.802
7.0 21.0 24.0 10.0 1.5 38.5 61.6 5.6 1.083
8.0 24.0 27.5 11.5 2.0 50.3 80.4 6.4 1.416
10.0 30.0 34.5 14.5 3.2 78.5 126.0 8.0 2.216
13.0 39.0 45.0 19.0 5.3 133.0 212.0 10.4 3.528
16.0 48.0 55.5 23.5 8.0 201.0 322.0 12.8 5.571
18.0 54.0 61.0 25.0 10.0 254.0 407.0 14.4 7.154
19.0 57.0 64.0 26.0 11.5 284.0 454.0 15.2 7.773
20.0 60.0 68.0 28.0 12.5 314.0 503.0 16.0 8.641
22.0 66.0 73.5 29.5 15.0 380.0 608.0 17.6 10.391
26.0 78.0 89.0 37.0 21.2 531.0 849.0 20.8 14.64
32.0 96.0 112.0 48.0 31.5 804.0 1290.0 25.6 22.357
