NACM2010 GRADE 70 TRANSPORT CHAIN
NACM2010 GRADE 70 TRANSPORT CHAIN
Specifications
Nominal Chain Size (in) :
3/7
Nominal Chain Size (mm) :
20.0
Material Diameter (in) :
0.787
Material Diameter (mm) :
20.0
Working Load Limit(Max.) (lbs) :
24,700
Working Load Limit(Max.) (kg) :
11,200
Proof Test (Min.) (lbs) :
49,400
Proof Test (Min.) (kN) :
219.6
Min. Breaking Force (lbs) :
98,800
Min. Breaking Force (kN) :
439.2
Inside Length (Max.) (in) :
2.76
Inside Length (Max.) (mm) :
70.0
Inside Width (Min.) (in) :
0.98
Inside Width (Min.) (mm) :
25.0
Description

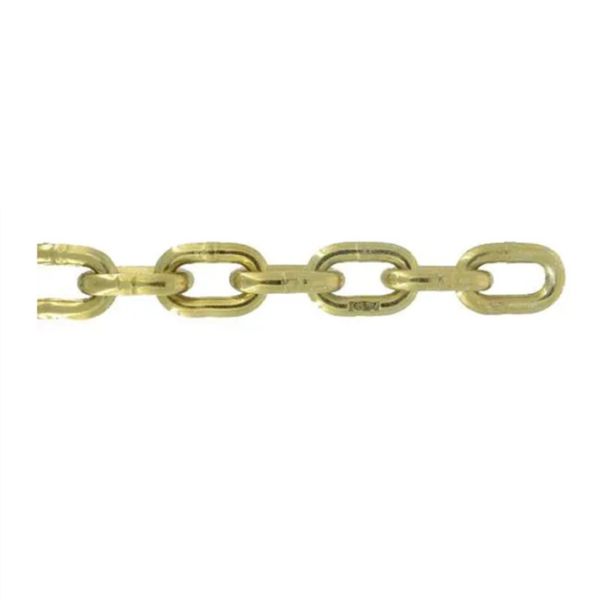

NACM2010 GRADE 70 TRANSPORT CHAIN

Grade 70 Transport Chain

Our Grade 70 Transport Chain is engineered for superior performance and reliability in demanding applications. Designed to meet the latest industry standards, this chain provides exceptional strength and durability for cargo securement, towing, and logging operations.

Key Benefits:

  • High Strength: Manufactured from high-quality alloy steel and heat-treated for maximum strength.
  • Durable Finish: Yellow chromated zinc plated finish for excellent corrosion resistance.
  • Compliant: Meets the latest revision of NACM specifications and D.O.T. regulations.
  • Traceable: Embossed with “RG70” and a unique traceability code.
  • Safety: Quenched and tempered, proof tested with a design factor of 4:1.

Target Industries: Transportation, Logistics, Forestry, Construction

Typical Applications: Cargo Tie-Downs, Towing, Logging Operations, Heavy Equipment Securement

Product Attributes

Brand: [Brand Name]
Origin: [Origin Country]
Material: Alloy Steel
Color: Yellow Chromated Zinc Plated

Technical Specifications

Nominal Chain Size (in) Nominal Chain Size (mm) Working Load Limit(Max.) (lbs) Working Load Limit(Max.) (kg)
1/4 7.0 3,150 1,430
5/16 8.7 4,700 2,130
3/8 10.0 6,600 2,990
7/16 11.9 8,750 3,970
1/2 13.0 11,300 5,130
5/8 16.0 15,800 7,170
3/7 20.0 24,700 11,200
Nominal Chain Size (in) Proof Test (Min.) (lbs) Min. Breaking Force (lbs) Inside Length (Max.) (in)
1/4 6,300 12,600 1.24
5/16 9,400 18,800 1.29
3/8 13,200 26,400 1.38
7/16 17,500 35,000 1.64
1/2 22,600 45,200 1.79
5/8 31,600 63,200 2.20
3/7 49,400 98,800 2.76
