ASTM SHORT LINK GRADE 70 BINDER CHAIN
ASTM SHORT LINK GRADE 70 BINDER CHAIN
Specifications
SIZE :
1/2
LENGTH :
30
Working Load Limit(Max.) :
11,300
Proof Test (Min.) :
22,600
Min. Breaking Force :
45,200
Weight :
54.0
Qty. Per Drum :
10
Description

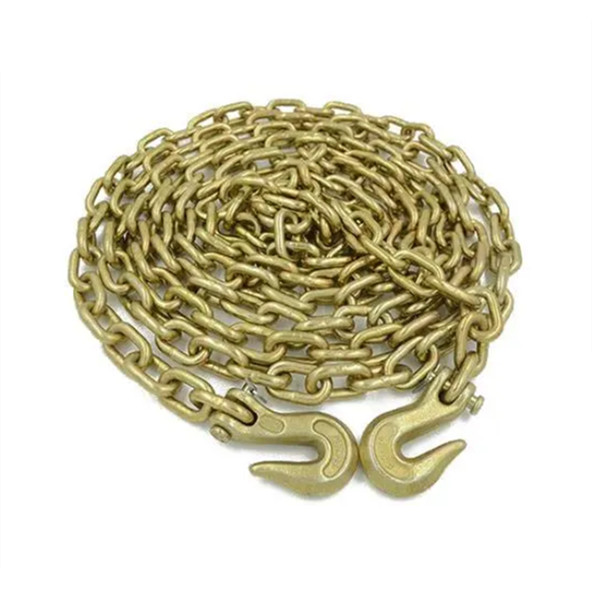

ASTM SHORT LINK GRADE 70 BINDER CHAIN

Grade 70 Transport Chain

Our Grade 70 transport chain is engineered for superior performance in demanding applications such as cargo securement, towing, and logging. Meeting the latest ASTM A413 specifications and D.O.T. regulations, this chain offers exceptional reliability and safety.

Key Benefits:

  • High Strength: Manufactured from Grade 70 steel for maximum durability.
  • Compliance: Meets or exceeds ASTM A413 and D.O.T. standards.
  • Secure: Equipped with forged clevis grab hooks for secure connections.
  • Durable Finish: Yellow chromated zinc plated for corrosion resistance.
  • Traceable: Embossed with "RG70" and traceability code for quality assurance.

Target Industries: Transportation, Logistics, Forestry, Automotive.

Typical Applications: Securing cargo on trucks and trailers, towing vehicles, logging operations.

Product Attributes

Brand: CH-Honghao (Assumed - not provided)
Origin: China (Assumed - not provided)
Material: Grade 70 Steel
Finish: Yellow Chromated Zinc Plated

Technical Specifications

SIZE (in) LENGTH (ft/pc) Working Load Limit (Max.) (lbs) Proof Test (Min.) (lbs) Min. Breaking Force (lbs) Weight (lbs/pc) Qty. Per Drum (pcs)
1/4 14 3,150 6,300 12,600 11.0 50
1/4 16 3,150 6,300 12,600 12.0 40
5/16 14 4,700 9,400 18,800 17.0 35
5/16 16 4,700 9,400 18,800 19.0 30
5/16 18 4,700 9,400 18,800 21.0 25
5/16 20 4,700 9,400 18,800 24.0 25
5/16 25 4,700 9,400 18,800 29.0 20
5/16 30 4,700 9,400 18,800 35.0 15
3/8 14 6,600 13,200 26,400 22.0 25
3/8 16 6,600 13,200 26,400 25.0 20
3/8 20 6,600 13,200 26,400 31.0 20
3/8 25 6,600 13,200 26,400 39.0 15
1/2 20 11,300 22,600 45,200 54.0 10
