G100 Chain Sling
G100 Chain Sling
Specifications
Φ mm :
22
SINGLE LEG WLL kg :
19,000
2 LEGS 0°< β≤45° WLL kg :
26,500
2 LEGS 45°<β ≤60° WLL kg :
19,000
3-4 LEGS 0°< β≤45° WLL kg :
40,200
3-4 LEGS 45°<β ≤60° :
28,000
Description

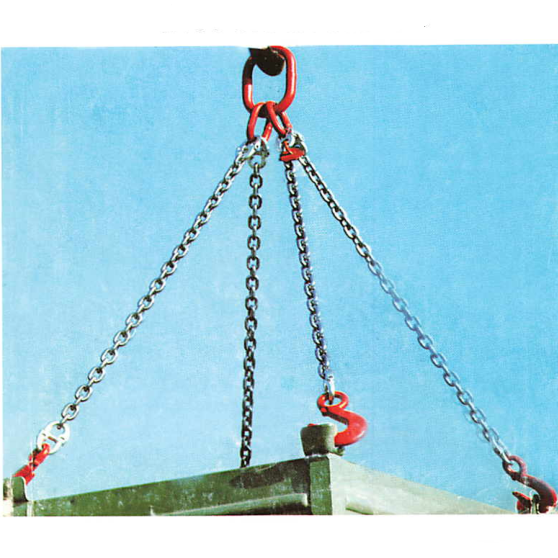

G100 Chain Sling

G100 Chain Sling

The G100 Chain Sling is available in single leg, 2 legs, and 3-4 legs configurations. It has working load limits (WLL) that vary based on the chain diameter (Φ) and the angle (β) between the legs.

Key Benefits:

  • Versatile Configurations: Available in single, 2-leg, and 3-4 leg options.
  • Variable Working Load Limits: WLL adjustable based on chain diameter and angle.
  • Durable Construction: G100 grade for high strength and reliability.
  • Wide Range of Applications: Suitable for various lifting and rigging needs.

Target Industries & Applications:

Ideal for construction, manufacturing, rigging, and heavy lifting industries.

Product Attributes

FOB Unit: kg
Product MOQ: Not specified
FOB Price: 0
Packaging & Delivery: Not specified

Technical Specifications

Φ mm SINGLE LEG WLL kg 2 LEGS 0°< β≤45° WLL kg 2 LEGS 45°<β ≤60° WLL kg
6 1,400 2,000 1,400
7 1,900 2,650 1,900
8 2,500 3,550 2,500
10 4,000 2,600 4,000
13 6,700 9,500 6,700
16 10,000 14,000 10,000
19 14,000 20,000 14,000
22 19,000 26,500 19,000
Φ mm 3-4 LEGS 0°< β≤45° WLL kg 3-4 LEGS 45°<β ≤60°
6 3,000 2,120
7 4,000 2,800
8 5,300 3,750
10 8,000 6,000
13 14,000 10,000
16 21,200 15,000
19 30,200 21,200
22 40,200 28,000
