CSQ Hybrid Ceramic Bearings with Corrosion Resistance and High-Speed Performance for Long Service Life
CSQ Hybrid Ceramic Bearings with Corrosion Resistance and High-Speed Performance for Long Service Life
CSQ Hybrid Ceramic Bearings with Corrosion Resistance and High-Speed Performance for Long Service Life
CSQ Hybrid Ceramic Bearings with Corrosion Resistance and High-Speed Performance for Long Service Life
CSQ Hybrid Ceramic Bearings with Corrosion Resistance and High-Speed Performance for Long Service Life
CSQ Hybrid Ceramic Bearings with Corrosion Resistance and High-Speed Performance for Long Service Life
Specifications
Brand Name :
CSQ
Model Number :
Customized products
Certification :
FDA,REACH,ROHS,ISO9001,ISO14001,ISO45001
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
2000pcs per month
Delivery Time :
Negotiable
Packaging Details :
Plastik box+carton box
Material :
Silicon Nitride, Zirconia
Applications :
High-speed machinery, electric motors, aerospace, medical devices
Feature :
Ultra high speed
Bearing Type :
Customized products
Name :
Hybrid Ceramic Bearings
MOQ :
50 PCS
Description

CSQ Hybrid Ceramic Bearings With Corrosion Resistance 608-2Z Silicon Nitride Zirconia

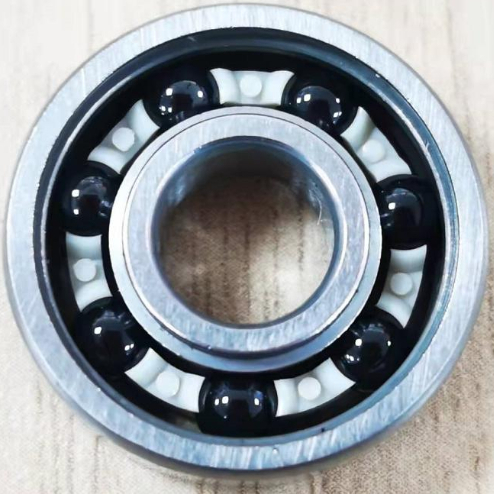

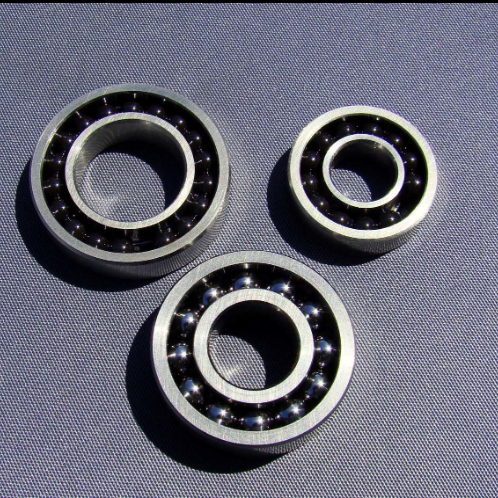

Hybrid Ceramic Bearings with Si3N4 Ceramic Balls

Races can be chosen among GCr15 bearing steel, M50 steel, 440C stainless steel, high temperature resistant bearing steel, etc., fit with high precision G5 grade silicon nitride balls, which are sintered by GPS (Gas Pressure) sintering and treated with HIP (Hot Isostatic Pressure) sintering technology. With that, machined or injection moulded PEEK cage, double-sided or one-sided PEEK seals can be assembled.

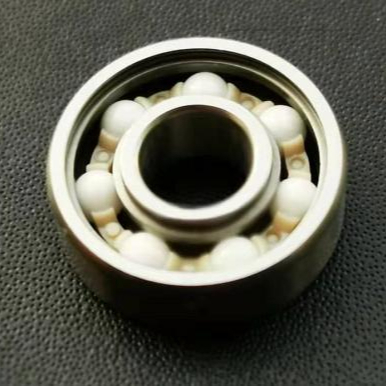

Hybrid Ceramic Bearings with ZrO2 Ceramic Balls

Races can be chosen among GCr15 bearing steel, M50 steel, 440C stainless steel, high temperature resistant bearing steel, etc. and fit with HIP (Hot Isostatic Pressure) hot isostatic sintered zirconia balls, according to the different needs of customers. The cage and seals structure are same as hybrid ceramic bearings with Si3N4 ceramic balls.

Core Advantages and Characteristics of Hybrid Ceramic Bearings:

Category Specific Advantage Technical Explanation
High-Speed Performance Excellent high-speed capability Low-density ceramic balls lower centrifugal force, reducing heat and enabling 30–60% higher speeds
Service Life Exceptionally long service life Superior hardness and wear resistance yield 3–5x longer fatigue life
Stiffness & Temperature High rigidity & low temperature rise High elastic modulus increases rigidity; low friction and self-lubrication minimize heat
Harsh Environment Resistance Corrosion resistance Resists moisture and chemical corrosion.
High-temperature resistance Stable operation >400°C
Preload Stability Stable preload under thermal variation Low thermal expansion ensures minimal preload change with temperature
