6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
Specifications
Brand Name :
CSQ
Model Number :
6000/6200/6300 series
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
Plastik box+carton box
Name :
Hybrid Ceramic Ball Bearing
Category :
Deep groove hybrid ceramic bearing
Races Material :
Stainless steel/ Bearing steel or other steel you need
Ball material :
ZrO2/Si3N4/SSiC
Model :
6000/6200/6300 series
Pacage :
Plastik box+carton box
Description

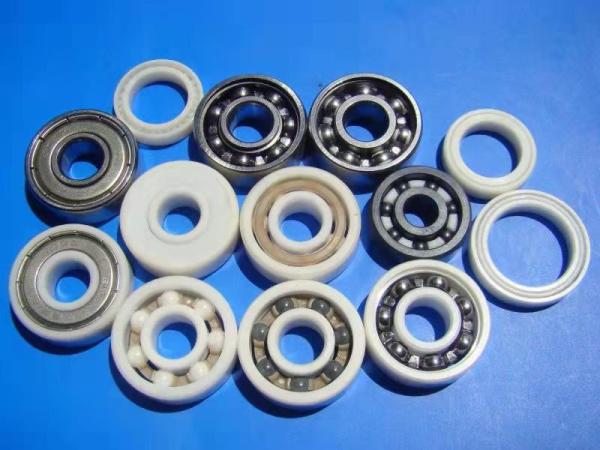

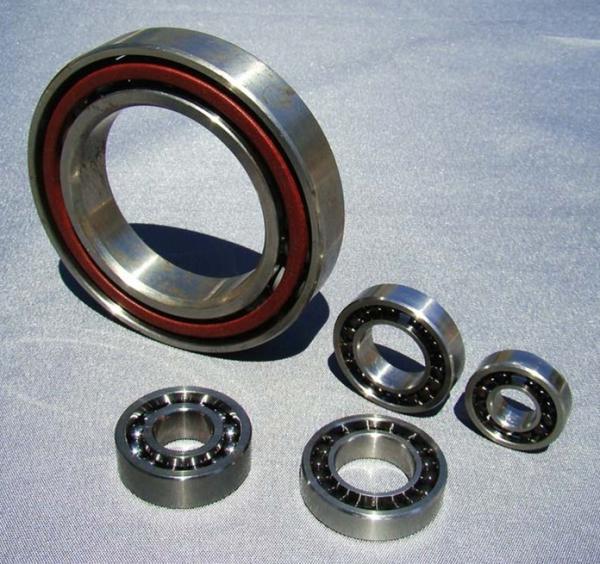

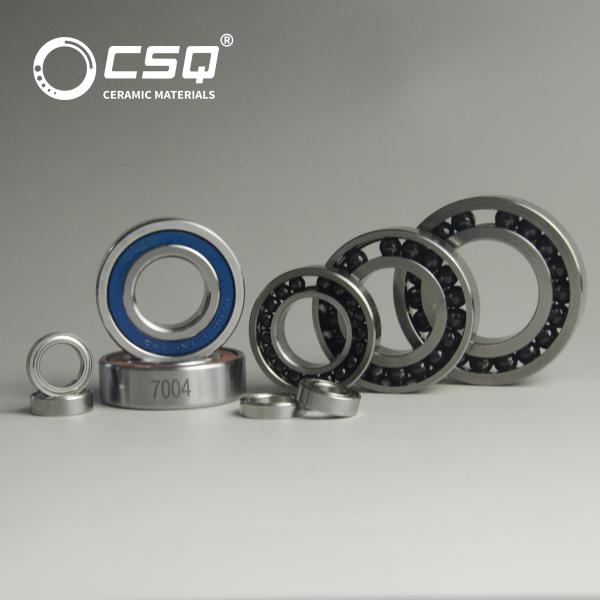

Hybrid Ceramic Ball Bearing of Steel Races+Ceramic Balls
Description of Hybrid Ceramic Ball Bearing:
Our company can volume produce all/hybrid ceramic bearings in steel or ceramic material and in C2/C3 or other customized clearance to meet your different demands. The races can be in material of stainless steel/ bearing steel or other steel you need and the balls can be in material of zirconia, silicon nitride and silicon carbide. The hybrid ceramic ball bearing combines the nice wear resistance of steel and the excellent resistance to corrosion and good electric and magnetic insulation of ceramic material.Hybrid ceramic ball bearings are low noise, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.
Material properties of ceramic material:
Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)
6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
6206 6205 6204 6203 Hybrid Ceramic Ball Bearing Manufacturers Steel Races
