All Ceramic Hybrid Roller Bearings Steel Races CSQ
All Ceramic Hybrid Roller Bearings Steel Races CSQ
All Ceramic Hybrid Roller Bearings Steel Races CSQ
All Ceramic Hybrid Roller Bearings Steel Races CSQ
Specifications
Brand Name :
CSQ
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Negotiable
Packaging Details :
Plastik box+carton box
Name :
Hybrid Ceramic Roller Bearing
Category :
Deep Groove hybrid ceramic bearing
Races Material :
Stainless steel/ Bearing steel or other steel you need
Roller material :
ZrO2/Si3N4/SSiC
MOQ :
50 pieces
Pacage :
Plastik box+carton box
Description

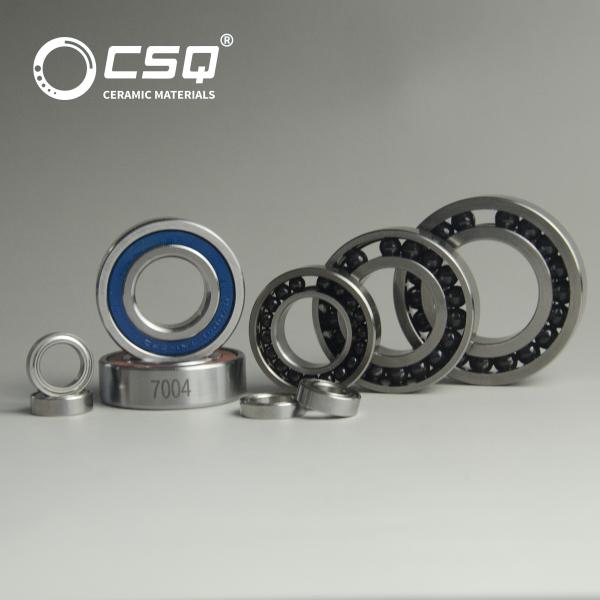

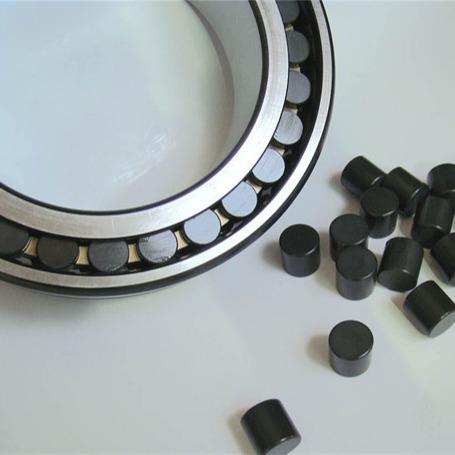

Hybrid Ceramic Roller Bearing of Steel Races+Ceramic Roller
Description of Hybrid Ceramic Roller Bearing:
Our company can volume produce hybrid ceramic roller bearings in material of steel races assembled with ceramic rollers The races can be chosen among stainless steel/ bearing steel or other steel you need and the rollers can be zirconia, silicon nitride and silicon carbide ceramic rollers. The hybrid ceramic ball bearing combines the nice wear resistance of steel and the excellent resistance to corrosion and good electric and magnetic insulation of ceramic material.
Material properties of ceramic material:
Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature ℃
(℉)		 1650
(3000)		 1000
(1830)		 1000
(1830)		 380
(716)
All Ceramic Hybrid Roller Bearings Steel Races CSQ
