ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
Specifications
Brand Name :
CSQ
Model Number :
51106
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30-40 work days
Delivery Time :
30-40 work days
Packaging Details :
Plastik bag+foam+carton box
Name :
Ceramic Thrust Bearing 51106
Material :
Zirconia Races/Balls+Peek cage
Precision :
P6/ABEC3
Form size :
Ø30×Ø47×11mm
Fixing size :
Ø32×Ø47mm
Pacage :
Foam+cartom box
Description

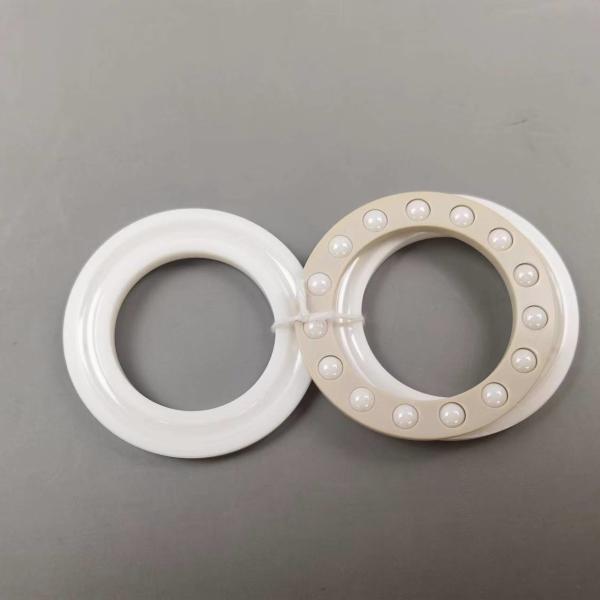

Ceramic Thrust Bearing 51106 Of Zirconia Races/Balls+Peek Cage With P6/ABEC3 Precision

Description of Ceramic Thrust Bearing 51106 (Zirconia+PEEK):

1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material and are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.

2. PEEK cage: The crown structure cages are adopted British Victrex PEEK material, PEEK has high strength, light body, and similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics.

Performance advantages of Ceramic Thrust Bearing 51106 (Zirconia+PEEK):

►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51106CE 16320 35700 4300 6500

Application of Ceramic Thrust Bearing 51106 (Zirconia+PEEK):

Because of the properties of zirconia and PEEK material, zirconia bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.

ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged

ABEC 3 Ceramic Thrust Bearing 51106 Zirconia Races Balls Peek Caged
