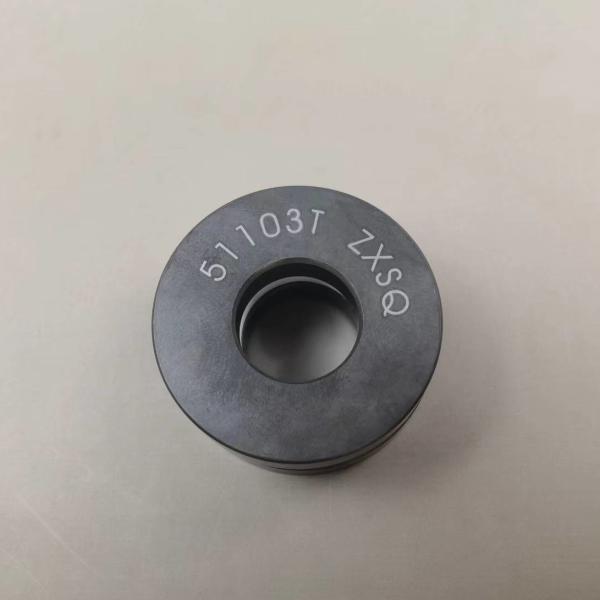

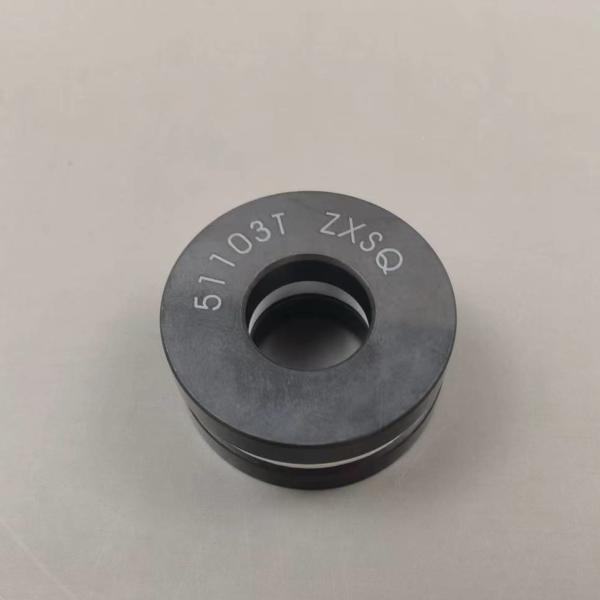

High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
Specifications
Brand Name :
CSQ
Model Number :
51103
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30 work days
Delivery Time :
30 work days
Packaging Details :
Foam+cartom box
Name :
Ceramic Thrust Bearing 51103
Category :
Ceramic single direction thrust ball bearing
Material :
SSiC Races and Balls+ cage
Size :
17×30×9mm
Application :
Machinery
Pacage :
Foam+cartom box
Description

Ceramic Thrust Bearings 51103 Of SSiC Races And Balls+PTFE Cage

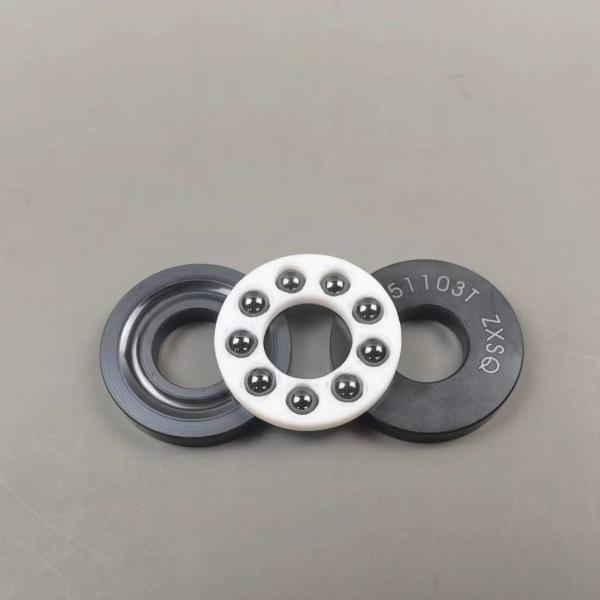

Description of Ceramic Thrust Bearing 51103 (SSiC races and balls+ cage):

1. SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material and are sintered by pressureless sintering method, so the free silicon and free carbon in the products are close to the theoretical values.

2. cage: has excellent chemical stability, good corrosion resistance and high temp resistance (resistant to molten metal sodium and liquid fluorine, all kinds of acid and alkali and organic solvent, and can work in +250℃ to -180℃ temperature for a long time)

Performance advantages of Ceramic Thrust Bearing 51103 (SSiC races and balls+ cage):

With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness and good wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance.

►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51103CE 8640 15470 6000 9100

Application of Ceramic Thrust Bearing 51103 (SSiC races and balls+ cage):

Because of the outstanding properties of silicon carbide material, SSiC Ceramic Bearings are suitable for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc.,.

High Speed SSiC Zr02 Ceramic Bearings Thrust 51103High Speed SSiC Zr02 Ceramic Bearings Thrust 51103
