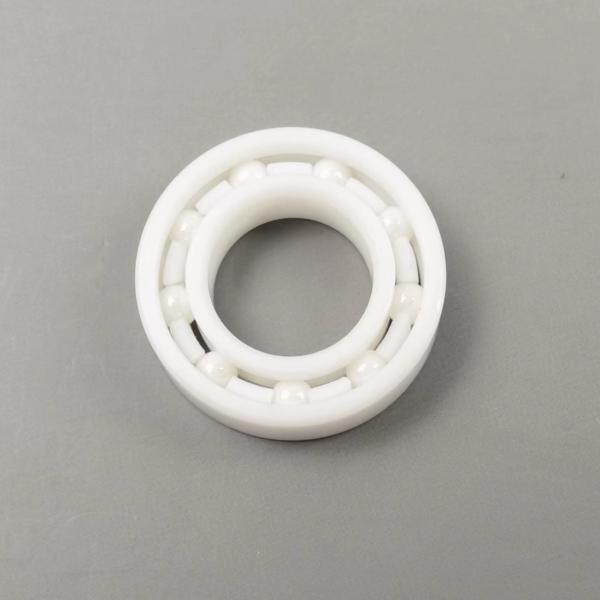

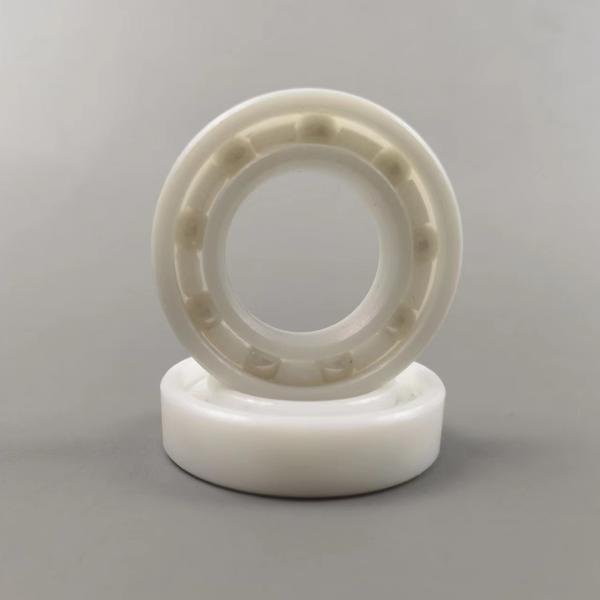

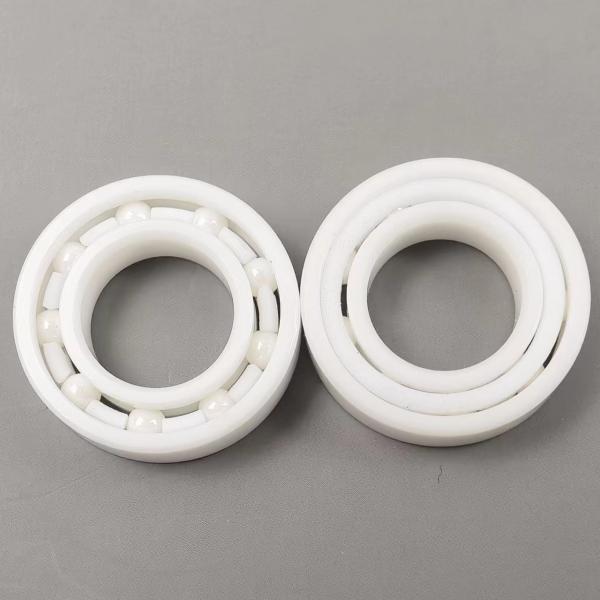

6900 6901 6902 Zirconia Ceramic Bearing ZrO2 ABEC3
6900 6901 6902 Zirconia Ceramic Bearing ZrO2 ABEC3
6900 6901 6902 Zirconia Ceramic Bearing ZrO2 ABEC3
6900 6901 6902 Zirconia Ceramic Bearing ZrO2 ABEC3
6900 6901 6902 Zirconia Ceramic Bearing ZrO2 ABEC3
6900 6901 6902 Zirconia Ceramic Bearing ZrO2 ABEC3
Specifications
Brand Name :
CSQ
Model Number :
6902(61902CE)
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
50 pcs in 30-40 work days
Delivery Time :
30-40 work days
Packaging Details :
Plastik bag+foam+carton box
Name :
6902Ce
Material :
ZrO2 races and balls + PTFE cage
Size :
Ø15×Ø28×7mm
Ball :
Zirconia ball of Ø3.969mm
Precision :
P6/ABEC3
Pacage :
Plastik bag+foam+carton box
MOQ :
50 pieces
Delivery time :
30-40 work days
Description

6902 Ce Of ZrO2 Races And Balls + Cage Of P6/ABEC3 Precision

Description of 6902Ce :

1. ZrO2 races and balls: Races are made by highly purified, sub-micron and after Y2O3 partially stabled zirconia powder material and are precessed by GPS sintering technology.

2. cage: has excellent chemical stability, can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent,can work in +250℃ to -180℃ temperature for a long time.

Performance advantages of 6902Ce:

Zirconia bearings have high hardness, wear resistance, resistance to various corrosion. For reference, the load of 6902 Ce is 3225 N (Cr) and 2250N (Cor) and its max operating speed can reach 26000 rpm with grease lubrication and 34100 rpm with oil lubrication.

►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

Application of 6802 Ceramic Bearing (Zirconia+) :

Because of the outstanding porperties of zirconia and , the zieconia bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.
