High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible
High Purity 96% Alumina Ceramic Components Producers For Crucible
Specifications
Brand Name :
HENGYUAN
Model Number :
99% Alumina Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
99% Alumina Ceramics
Color :
White
Density :
3.85g/cm³
Type :
Custom
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
3.85g/cm³ 99% Alumina Ceramics Components for High Temperature Applications
Product Attributes
Attribute Value
Material 99% Alumina Ceramics
Color White
Density 3.85g/cm³
Type Custom
OEM, ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description
Alumina ceramics is one of the most mature engineering ceramics with excellent properties. The ceramic material with 99% alumina content is used to make high temperature crucible, refractory furnace pipe and special wear-resistant materials, such as ceramic bearings, ceramic seals and water valves.
Material Properties Comparison
Material Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥1014 ≥1014 ≥1014 ≥1014
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

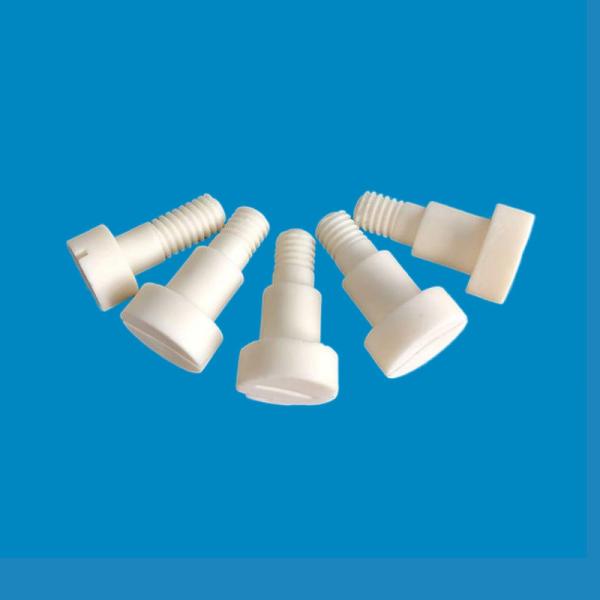

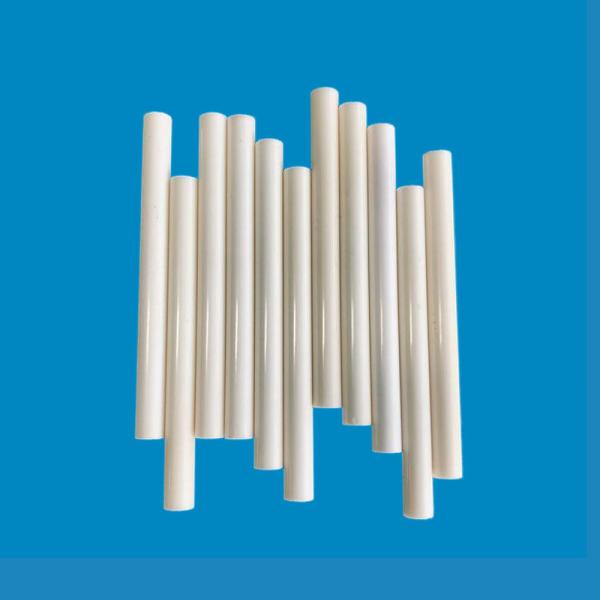

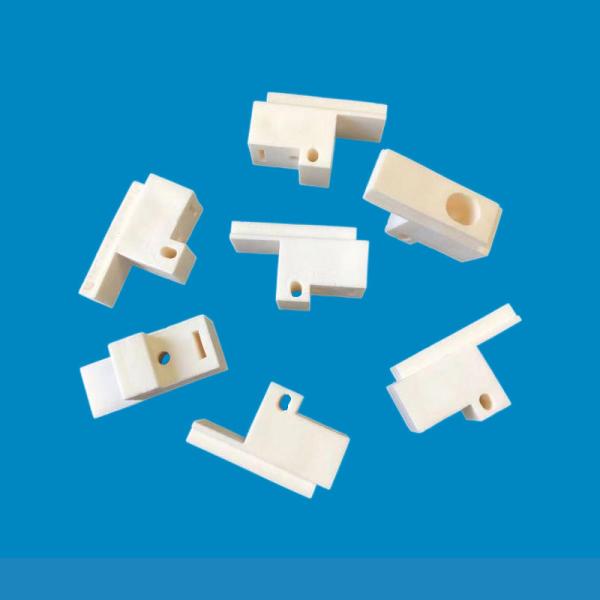

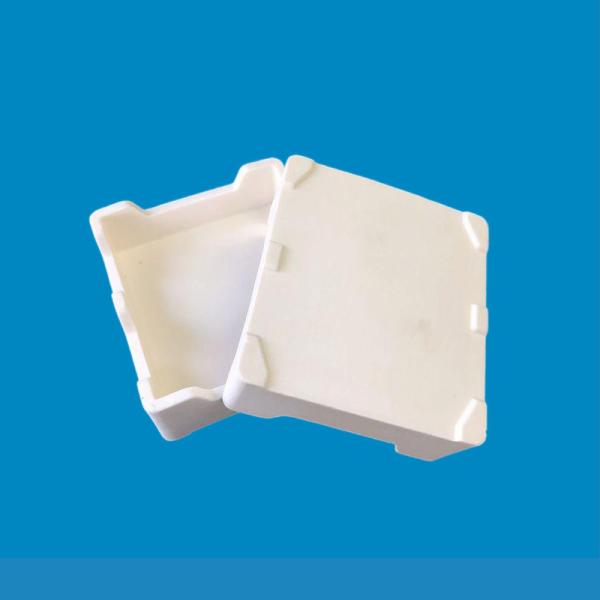

Product Images
High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible High Purity 96% Alumina Ceramic Components Producers For Crucible
