Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
Specifications
Brand Name :
HENGYUAN
Model Number :
95% Alumina Ceramics
Certification :
CE,UL
Place of Origin :
WUXI JIANGSU CHINA
MOQ :
100
Price :
$1-$20
Payment Terms :
L/C, T/T
Supply Ability :
5000 PCS/WEEK
Delivery Time :
20 DAYS
Packaging Details :
Carton
Material :
95% Alumina Ceramics
Color :
White
Weibull Modulus :
10M
Modulus of Elasticity :
340 Gpa
OEM，ODM :
Acceptable
Orgin :
WUXI JIANGSU CHINA
MOQ :
100 PCS
Package :
Carton
Description
Highly Insulating 95% Alumina Ceramics With Volume Resistivity Of ≥10¹⁴ Ω
Product Attributes
Attribute Value
Material 95% Alumina Ceramics
Color White
Weibull Modulus 10M
Modulus of Elasticity 340 Gpa
OEM/ODM Acceptable
Origin WUXI JIANGSU CHINA
MOQ 100 PCS
Package Carton
Product Description

Alumina ceramic is an advanced ceramic material with alumina as its primary component, offering exceptional performance characteristics. Its hardness ranks second only to diamond, significantly surpassing the wear resistance of steel and stainless steel. The material's superior wear resistance dramatically extends equipment service life while providing excellent electrical insulation and thermal properties.

Technical Specifications
Property Unit A95% Alumina Ceramics A97% Alumina Ceramics A99% Alumina Ceramics A99.7% Alumina Ceramics
Density g/cm³ 3.6 3.72 3.85 3.85
Flexural Strength Mpa 290 300 350 350
Compressive Strength Mpa 3300 3400 3600 3600
Modulus of Elasticity Gpa 340 350 380 380
Impact Resistance MPam1/2 3.9 4 5 5
Weibull Modulus M 10 10 11 11
Vickers Hardness HV0.5 1800 1850 1900 1900
Thermal Expansion Coefficient 10-6K-1 5.0-8.3 5.0-8.3 5.4-8.3 5.4-8.3
Thermal Conductivity W/Mk 23 24 27 27
Thermal Shock Resistance △T℃ 250 250 270 270
Maximum Use Temperature ℃ 1600 1600 1650 1650
Volume Resistivity at 20℃ Ω ≥10¹⁴ ≥10¹⁴ ≥10¹⁴ ≥10¹⁴
Dielectric Strength KV/mm 20 20 25 25
Dielectric constant εr 10 10 10 10

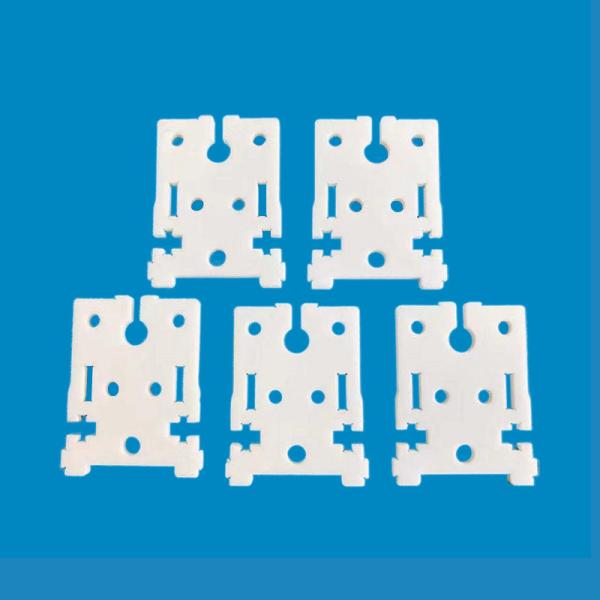

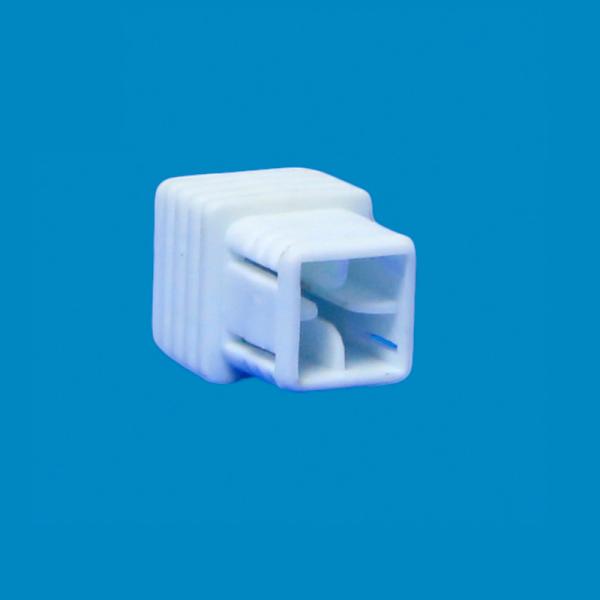

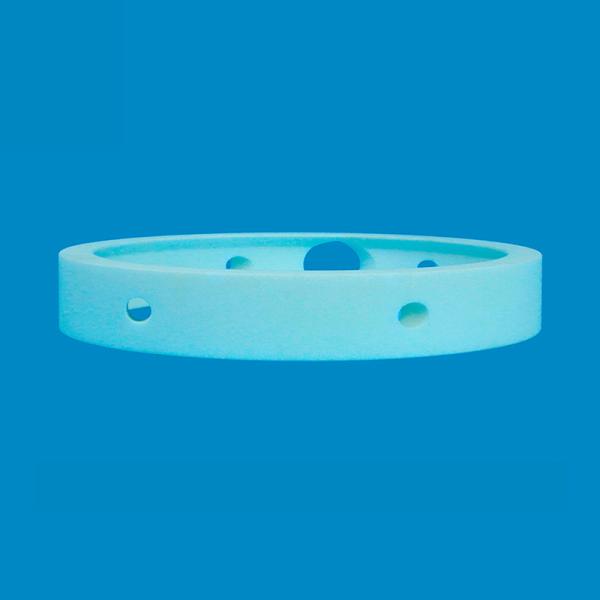

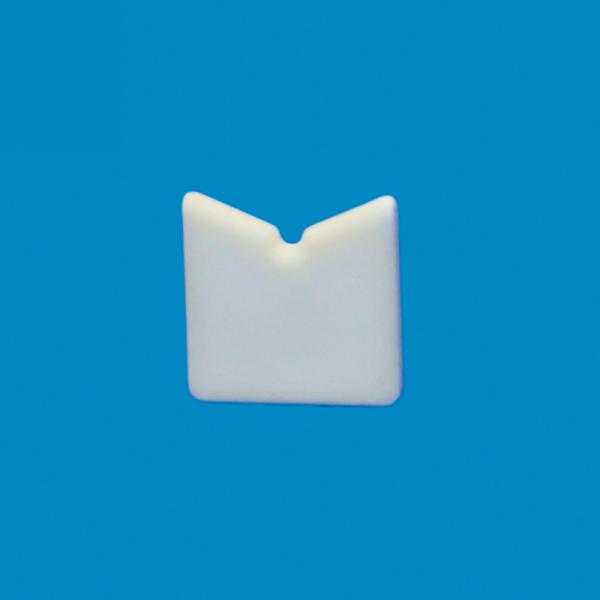

Product Images
Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component Robust Insulating 95% Alumina Oxide Ceramic Machining Primary Component
