High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant
High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant
Specifications
Brand Name :
YH
Model Number :
YH
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
10-30days
Packaging Details :
by caront or wooden case
Dielectric Strength :
15 KV/mm
Chemical Composition :
Al2O3 (Aluminum Oxide)
Color :
White Or yellow
Electrical Insulation :
Excellent
Operating Temperature :
Up to 1700°C
Low Thermal Expansion :
Excellent
Biocompatibility :
Yes
Alumina Content :
95-99.7%
Flexural Strength :
300 to 400 MPa
Thermal Conductivity :
20 to 30 W/m·K
Machinability :
Difficult
Maximum Use Temperature :
1700c
Transparency :
Opaque
Surface Finish :
Polished
Description

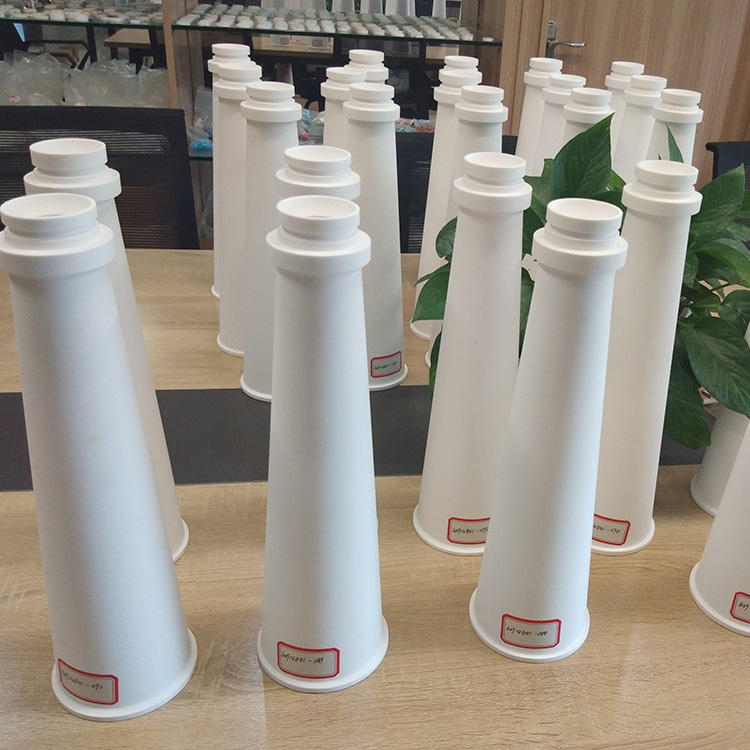

Alumina Ceramic Cone For Industrial Protection Pipe Lining

High-Temperature High Wear Resistant

High-Performance Alumina Ceramic Cone:
The Alumina Ceramic Cone is manufactured from high-purity alumina (Al₂O₃), offering exceptional mechanical strength,
high-temperature resistance, and electrical insulation. Its conical design is ideal for sealing, guiding, wear protection, and
high-temperature isolation in demanding industrial environments. It is widely used in metallurgy, power generation, chemical
processing, semiconductor manufacturing, and environmental protection equipment.

High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear ResistantHigh Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant

Application
High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant
Mechanical Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Colour
--
White
Yellow
Yellow
Density
g/cm³
3.7
3.85
3.9
Hardness
GPa
13.7
15.2
15.7
Compressive Strength
MPa
2000
2160
2350
Flexural Strength
MPa
280
310
350
Fracture Toughness
MPa・m1/2
3~4
3~4
4.5
Modulus of Elasticity
GPa
320
360
370
Poissons Ratio
--
0.23
0.23
0.23
Thermal Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Maximum Use Temperature
℃(No load)
1650
1650
1650
Thermal Conductivity @ 20°C
W/(m・K)
24
29
32
Thermal Expansion a at 20–400°C
1 x 10-6/°C
7~8
7~8
7~8
Specific Heat
J/(kg・K)
780
790
780
Thermal Shock Resistance
℃(Put in water)
200
200
200
Electrical Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Dielectric Constant
1MHz
9.4
9.9
9.9
Dielectric Strength
V/m
15 x 10 6
15 x 10 6
15 x 10 6
Dielectric Loss
1MHz
4 x 10 -4
4 x 10 -4
4 x 10 -4
Volume Resistivity @ 25°C
Ω・cm
>10 14
>10 14
>10 14
Volume Resistivity @ 500°C
Ω・cm
>10 8
>10 8
>10 10
Various Types of Alumina Ceramic Part
We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic

* Relatively low density;
* Extremely high operating temperature;
* Very high hardness and compressive strength;
* Excellent electrical insulation properties;
* Corrosion and wear resistance;
* Biologically inert, food compatibility.

Alumina Ceramic Properties

The following only lists the performance parameters of the three most common aluminum oxide ceramics. Normally, alumina ceramics
are composed of these types
Packing
High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant

High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant

High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant Hunan Yuanhong New Material Co.,Ltd was established in 2016 ,there are over 100 sets of ceramic professional equipments , several types of furnace in more than 8000 square meters production workshops. ISO9001 certified, a variety of advanced ceramic materials are ROHS and REACH certified.

High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant
High Purity Alumina Ceramic Cone For Protection Pipe Lining High Wear Resistant
FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
