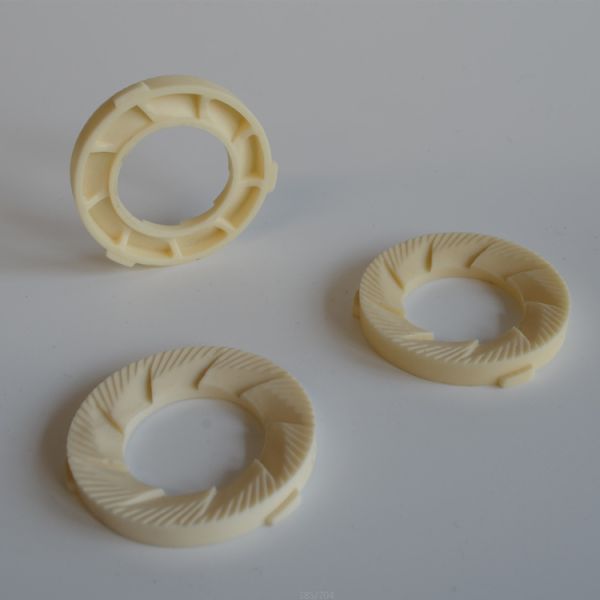

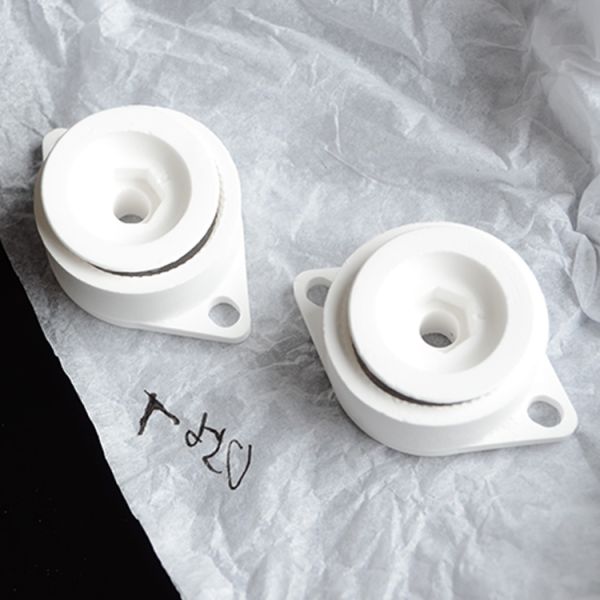

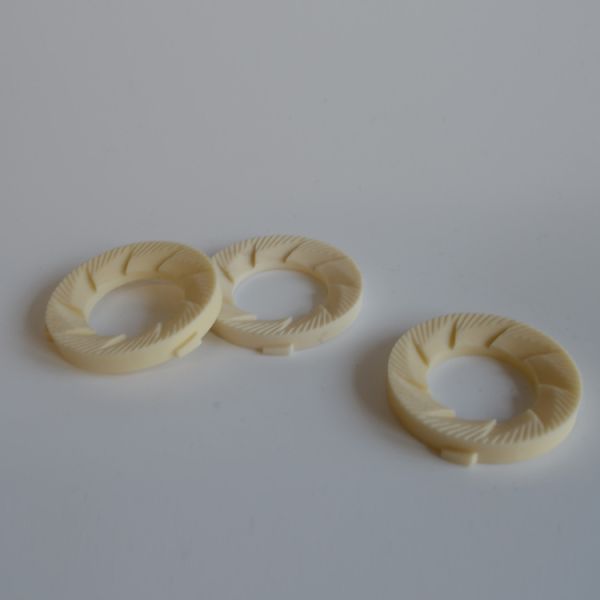

Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder
Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder
Specifications
Brand Name :
YH
Model Number :
YH
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
10-30days
Packaging Details :
by caront or wooden case
Dielectric Strength :
15 KV/mm
Chemical Composition :
Al2O3 (Aluminum Oxide)
Color :
White Or yellow
Electrical Insulation :
Excellent
Operating Temperature :
Up to 1700°C
Low Thermal Expansion :
Excellent
Biocompatibility :
Yes
Alumina Content :
95-99.7%
Flexural Strength :
300 to 400 MPa
Thermal Conductivity :
20 to 30 W/m·K
Machinability :
Difficult
Maximum Use Temperature :
1700c
Transparency :
Opaque
Surface Finish :
Polished
Description

Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder

Tired of fasteners failing under high temperatures, corrosion, or Alumina Ceramic Pepper Mill Grinding?

Our alumina ceramic grinding mechanisms are engineered for unmatched durability—resist corrosion,
stay sharp for years, and handle even the toughest peppercorns without wear.
✅ Universal fit for most mills
✅ Food-safe, non-reactive material
✅ Install in 2 mins—save your favorite grinder!
Stop replacing your mill. Replace the part that lasts.

Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill GrinderAlumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder

Application
Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder
Mechanical Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Colour
--
White
Yellow
Yellow
Density
g/cm³
3.7
3.85
3.9
Hardness
GPa
13.7
15.2
15.7
Compressive Strength
MPa
2000
2160
2350
Flexural Strength
MPa
280
310
350
Fracture Toughness
MPa・m1/2
3~4
3~4
4.5
Modulus of Elasticity
GPa
320
360
370
Poissons Ratio
--
0.23
0.23
0.23
Thermal Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Maximum Use Temperature
℃(No load)
1650
1650
1650
Thermal Conductivity @ 20°C
W/(m・K)
24
29
32
Thermal Expansion a at 20–400°C
1 x 10-6/°C
7~8
7~8
7~8
Specific Heat
J/(kg・K)
780
790
780
Thermal Shock Resistance
℃(Put in water)
200
200
200
Electrical Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Dielectric Constant
1MHz
9.4
9.9
9.9
Dielectric Strength
V/m
15 x 10 6
15 x 10 6
15 x 10 6
Dielectric Loss
1MHz
4 x 10 -4
4 x 10 -4
4 x 10 -4
Volume Resistivity @ 25°C
Ω・cm
>10 14
>10 14
>10 14
Volume Resistivity @ 500°C
Ω・cm
>10 8
>10 8
>10 10
Various Types of Alumina Ceramic Part
We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic

* Relatively low density;
* Extremely high operating temperature;
* Very high hardness and compressive strength;
* Excellent electrical insulation properties;
* Corrosion and wear resistance;
* Biologically inert, food compatibility.

Alumina Ceramic Properties

The following only lists the performance parameters of the three most common aluminum oxide ceramics. Normally, alumina ceramics
are composed of these types
Packing
Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder

Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder

Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder
Alumina Ceramic Pepper Mill Grinding Mechanism Replacement Parts for Mill Grinder
