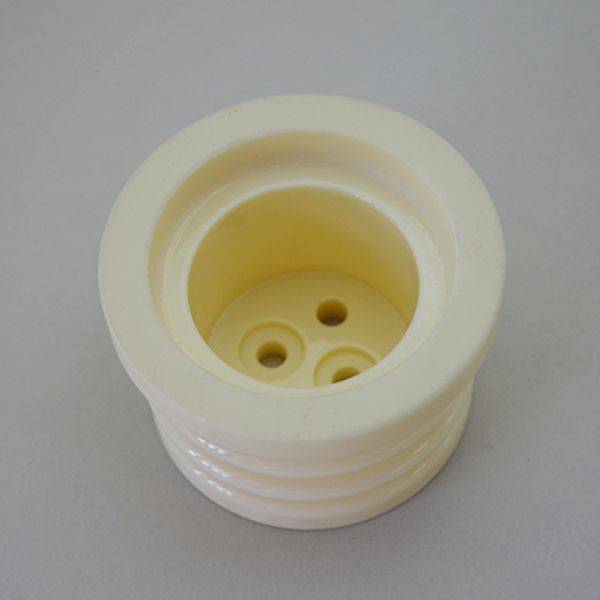

Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance
Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance
Specifications
Brand Name :
YH
Model Number :
YH
Certification :
ISO,CE
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiated
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000pcs per month
Delivery Time :
10-30days
Packaging Details :
by caront or wooden case
Dielectric Strength :
15 KV/mm
Chemical Composition :
Al2O3 (Aluminum Oxide)
Color :
White Or yellow
Electrical Insulation :
Excellent
Operating Temperature :
Up to 1700°C
Low Thermal Expansion :
Excellent
Biocompatibility :
Yes
Alumina Content :
95-99.7%
Flexural Strength :
300 to 400 MPa
Thermal Conductivity :
20 to 30 W/m·K
Machinability :
Difficult
Maximum Use Temperature :
1700c
Transparency :
Opaque
Surface Finish :
Polished
Description

Alumina Ceramic Parts for Industrial Semiconductor

High-Performance Alumina Ceramic Part:
When your process runs at 1600°C, faces plasma erosion, and demands micron-level precision
—only alumina ceramic delivers. Here’s how it transforms your workflow:
  • Ultra-High Purity & Insulation: 99.5%-99.99% Al₂O₃ grade, volume resistivity >10¹⁴ Ω·cm, ideal for high-voltage insulation in ICP etchers and ion implanters .
  • Extreme Plasma Resistance: Outperforms quartz in Cl₂/CF₄ plasma environments, reducing replacement frequency by 60% and lowering maintenance costs .
  • Thermal Stability: Withstands up to 1600°C, thermal expansion coefficient (7-8×10⁻⁶/°C) perfectly matches silicon wafers, eliminating thermal stress failures .
  • Class 1 Cleanroom Compliance: Mirror-finish surface (Ra < 0.01μm) with minimal particle release, safe for direct wafer contact components .

Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion ResistanceCustom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance

Application
Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance
Mechanical Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Colour
--
White
Yellow
Yellow
Density
g/cm³
3.7
3.85
3.9
Hardness
GPa
13.7
15.2
15.7
Compressive Strength
MPa
2000
2160
2350
Flexural Strength
MPa
280
310
350
Fracture Toughness
MPa・m1/2
3~4
3~4
4.5
Modulus of Elasticity
GPa
320
360
370
Poissons Ratio
--
0.23
0.23
0.23
Thermal Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Maximum Use Temperature
℃(No load)
1650
1650
1650
Thermal Conductivity @ 20°C
W/(m・K)
24
29
32
Thermal Expansion a at 20–400°C
1 x 10-6/°C
7~8
7~8
7~8
Specific Heat
J/(kg・K)
780
790
780
Thermal Shock Resistance
℃(Put in water)
200
200
200
Electrical Properties
Properties
Unit
95%Al2O3
99%Al2O3
99.5%Al2O3
Dielectric Constant
1MHz
9.4
9.9
9.9
Dielectric Strength
V/m
15 x 10 6
15 x 10 6
15 x 10 6
Dielectric Loss
1MHz
4 x 10 -4
4 x 10 -4
4 x 10 -4
Volume Resistivity @ 25°C
Ω・cm
>10 14
>10 14
>10 14
Volume Resistivity @ 500°C
Ω・cm
>10 8
>10 8
>10 10

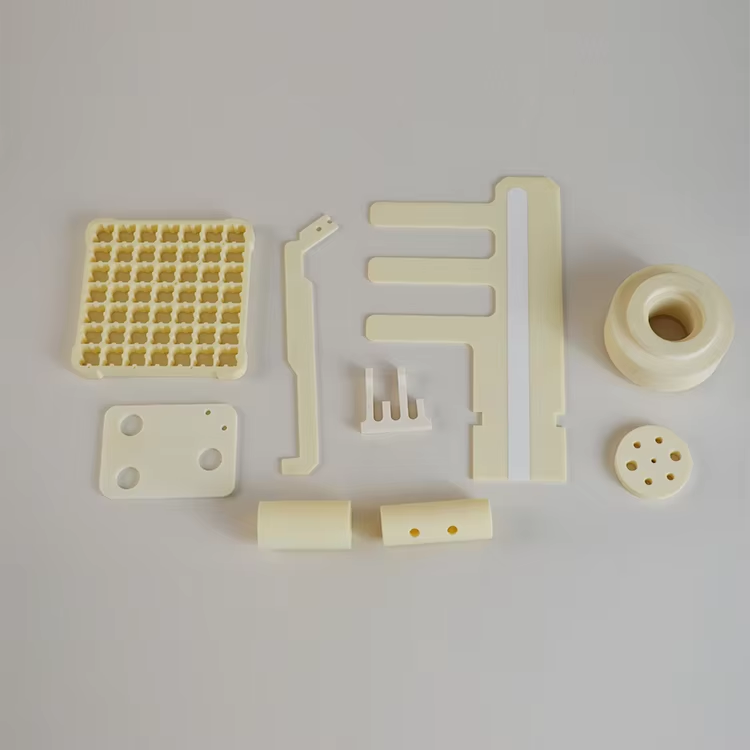

Various Types of Alumina Ceramic Part
We Can Do OEM and 0BM According to Your Drawing and Requirements.

Features of alumina ceramic

* Relatively low density;
* Extremely high operating temperature;
* Very high hardness and compressive strength;
* Excellent electrical insulation properties;
* Corrosion and wear resistance;
* Biologically inert, food compatibility.

Alumina Ceramic Properties

The following only lists the performance parameters of the three most common aluminum oxide ceramics. Normally, alumina ceramics
are composed of these types
Packing
Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance

Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance

Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance
Custom Color Alumina Ceramic Parts for Industrial Semiconductor Corrosion Resistance
FAQ
Q1. Do you provide product samples? Yes, we provide samples subject to availability. A nominal sample fee may apply in some cases, and shipping costs are borne by the customer.
Q2. What are your accepted payment methods? We accept T/T (bank transfer) in advance, Western Union, Alipay, and PayPal.
Q3. What is your typical delivery lead time? Lead times vary depending on product requirements, including material selection, dimensions, and specific manufacturing processes.
Q4. Do you perform quality inspection before shipment? Yes, we conduct 100% inspection of all goods prior to delivery to ensure they meet specified standards.
Q5. What other ceramic materials do you offer? We supply a range of advanced ceramic materials, including Alumina, Zirconia, Aluminum Nitride,Boron Nitride, Silicon Nitride, Machinable Glass Ceramic, and related specialized ceramics.
