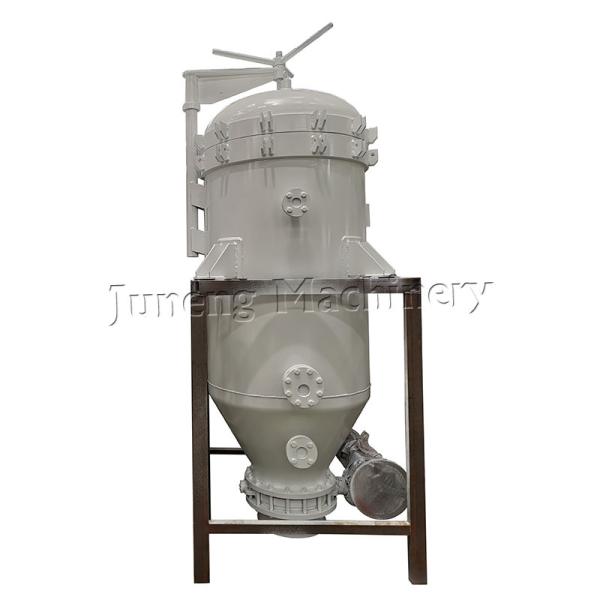

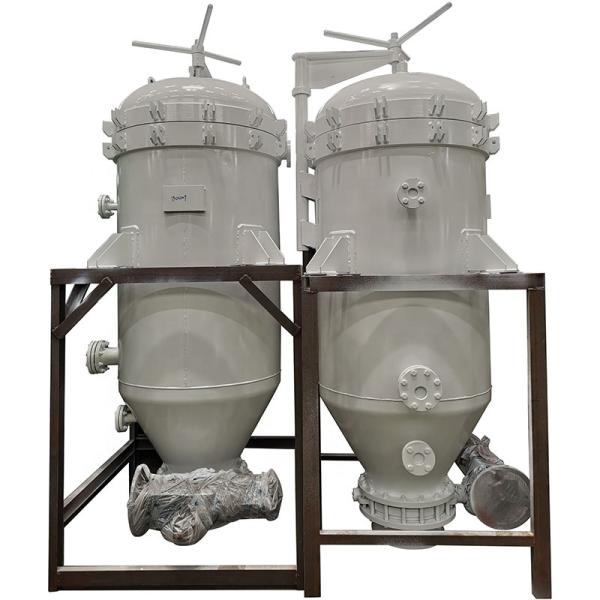

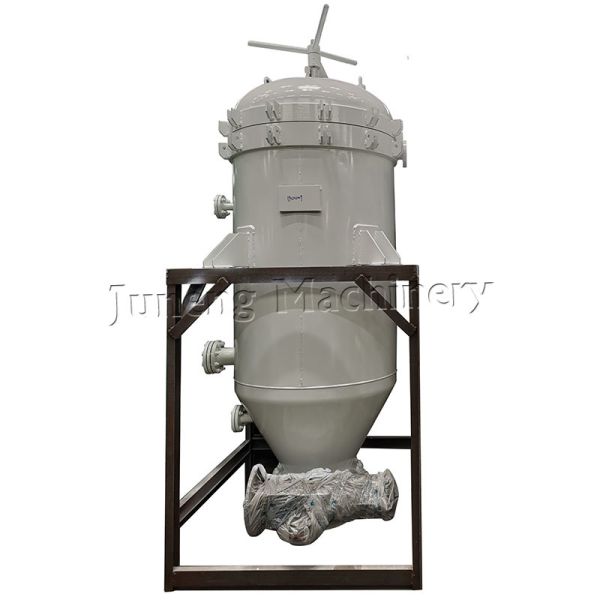

Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Specifications
Brand Name :
Juneng
Place of Origin :
Jiangsu, China
MOQ :
1 set
Price :
$18,000-20,000 / set
Certification :
CE ISO
Payment Terms :
T/T, L/C
Supply Ability :
40 set / months
Delivery Time :
60 working days
Packaging Details :
Standard Wooden Case
condition :
New
warranty :
1 Year
weight (kg) :
1300
After-sales Service Provided :
Field maintenance and repair service
Name :
Pressure leaf filter
Structure :
Vertical leaf Filter
Material :
Stainless Steel 304
Capacity :
4-6T/H for oil
Filtration area :
20m2
Color :
Green or blue
Design Temperature :
100-150 ℃
Design Pressure :
0.6Mpa
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
Pressure Vessel
Description
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
The NYB high efficiency plate hermetic filter is a high-efficient, energy-saving and hermetically operated fine filtration equipment. It is widely used in chemical, petroleum, painting, foodstuff, pharmaceutical and many other industries.
Product Application
The filter is composed of shell, filtration plate, cover, and automatic dump device. The filtration plate is made of multiple layers of stainless steel filtration materials and installed on the central liquid collection pipe, allowing for convenient dismantling and cleaning.
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Technical Specifications
Model Filtration area (㎡) Filter cake volume (L) Treatment Capacity - Oil Treatment Capacity - Resin Treatment Capacity - Beverage Rated pressure (Mpa) Max pressure (Mpa) Work temperature (℃) Machine volume (L)
NYB-2 2 30 0.4-0.6 1-1.5 0.1-0.4 0.1-0.4 0.5 ≤150 120
NYB-4 4 60 0.5-1.2 2-3 2-5 250
NYB-7 7 105 1-1.8 3-6 4-7 420
NYB-10 10 150 1.6-3 5-8 6-9 800
NYB-12 12 240 2-4 6-9 8-11 1000
NYB-15 15 300 3-5 7-12 10-13 1300
NYB-20 20 400 4-6 9-15 12-17 1680
NYB-25 25 500 5-7 12-19 16-21 1900
NYB-30 30 600 6-8 14-23 19-25 2300
NYB-36 36 720 7-9 16-27 23-31 2650
NYB-40 40 800 8-11 21-34 30-38 2900
NYB-45 45 900 9-13 24-34 36-44 3200
NYB-52 52 1040 10-15 27-45 42-51 3800
NYB-60 60 1200 11-17 30-52 48-60 4500
NYB-70 70 1400 12-19 36-60 56-68 5800
NYB-80 80 1600 13-21 40-68 64-78 7200
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Main Features
  • No cloth or filter paper required, significantly reducing filtration costs
  • Fully closed operation is environmentally friendly and prevents material loss
  • Vibration residue falling reduces labor intensity and enables continuous operation
  • Residue discharging through pneumatic valve reduces worker labor intensity
  • Suitable for activated carbon filtering or bleaching filtering, completely replacing plate and frame filters
NYB-12 Example Configuration
  • 11 filter leaves provide 12 sqm filtration area
  • Leaves surrounded by heavy box channel made from 1.8 mm 316L material
  • Topside of leaf with reinforcement and one vibrator fork per leaf (SS 316 material)
  • Leaf bottom with outlet nozzle featuring "O" ring seal (SS 316 nozzle with Viton rubber "O" ring)
Butterfly Valve
NYB-12 Example Configuration
  • DN 400 butterfly valve WAFER TYPE for dry cake discharge at filter bottom
  • First quality butterfly valve with NH-S seat material (up to 150°C high temperature)
  • Valve complete with pneumatic actuator double acting type with 5.5 Bar air supply
Certifications
Our company has obtained various international certifications including ASME U (Certificate No.: 38793), ISO 9001:2015 (Certificate No.: CN1299-QC), ISO 14001:2015 (Certificate No.: CN1299-EC), ISO 45001:2018 (Certificate No.: CN1299-SC), BV and CE.
ASME U Certified
ISO 9001:2015
ISO 14001:2015
ISO 45001:2018
BV Certified
CE Certified
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Other Filter Machines
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
SYB Rotary Drum Filter
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Vertical Filter Whole System
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
SZL Paper Filter
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
TL Cartridge Filter
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
DL Bag Filter
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Bag Filter with Pump
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Candle Self-cleaning Filter
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Horizontal Leaf Filter
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Filtering-washing-drying Machine
Our Service
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Pre-Sales Service
  • Inquiry and consulting support
  • Sample testing support
  • Factory viewing opportunities
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
After-Sales Service
  • Machine installation and operation training
  • Overseas engineering service available
  • Professional after-sales service team
  • Free equipment installation and operator training
  • Prompt response and problem resolution
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Our Company
Juneng Group
Juneng Machinery (China) Co., Ltd., established in 2006, is a professional manufacturer engaged in the research, development, production, sale and service of Filters, Separators, Decanter centrifuges and pumps. We have four factories located in Nanjing and Yixing City with convenient transportation access.
Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements. We have obtained CE certificates, ASME U certificate and ISO 9001 certificate. Our products sell well throughout China and are exported to countries including USA, Germany, Korea, Japan, Pakistan, Malaysia, Singapore, Vietnam and others.
We welcome OEM and ODM orders and provide comprehensive engineering assistance for your applications.
Model NYB White Color SS304 Pressure Leaf Filter with Insulate Jacket
Jiangsu Juneng Machinery North Branch in Yixing
Located in Zhoutie Town, Yixing City, the north branch of Jiangsu Juneng Machinery Co., Ltd focuses on all types of filters including vertical pressure leaf filters, horizontal pressure leaf filters, self-cleaning filters and bag filters.
QA/QC Department
  • Factory visit/audit required prior to purchase
  • Material inspection during manufacturing process and prior to shipment
  • Compliance to technical requirements
Our Development Philosophies
  • Continuous self-strengthening with innovative ideas
  • 5% of sales revenue allocated to intensive research
  • 8% of workforce allocated to development activities
  • Multiple patents and high-quality new products
