Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Specifications
Brand Name :
Juneng
Place of Origin :
Jiangsu, China
Certification :
CE,ISO,BV
MOQ :
1 unit
Price :
$23,000-25,000 / unit
Payment Terms :
T/T, L/C
Supply Ability :
40 set / months
Delivery Time :
60 working days
Packaging Details :
Standard Wooden Case
Cake Thickness :
30 mm
automatic grade :
Automatic
condition :
New
dimension(l*w*h) :
7072*2586*1700 mm
Power :
750)
Voltage :
380 V
warranty :
12 months
weight :
2000
After-sales Service Provided :
Engineers available to service machinery overseas
Name :
Horizontal pressure leaf filter
Material :
Carbon steel
Structure :
Leaf Filter
Function :
Seperation
Application :
Liquid Filtration
Usage :
Dewaxing
Applicable Industries :
Manufacturing Plant
Core Components :
Pressure vessel
Description
Product Description

Product Application

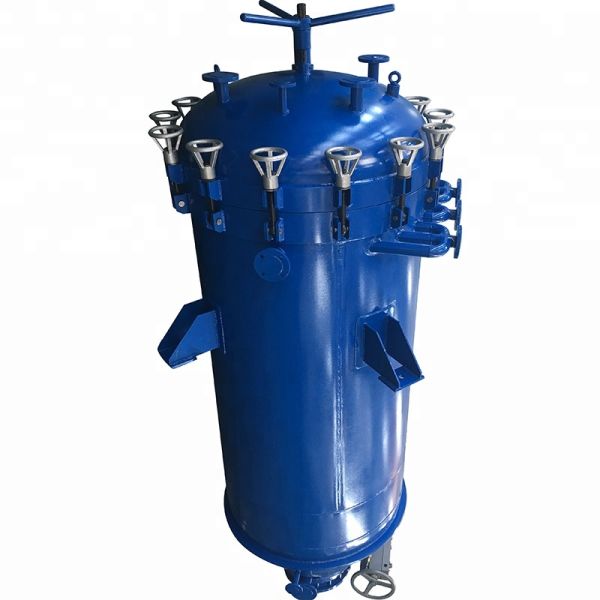

This product is of novel design, the main body of filter consists of filtration tank, screen, end-plate pullout device, automatic dreg discharging device, etc. During filtering, the filter aid is mixed up with material in the mixing cylinder then transmitted by pump onto the filter screen to form a filter cake layer.

Once the stable filter cake is realized, the minute filter aid particles provide countless micro passages, which entrap the suspended impurity and let the clear liquid through.

Therefore the real filtration is realized through the cake layer. In case that the filter cake over the surface of filter screen reaches certain thickness, the feeding shall be stopped, and compressed air or steam shall be employed to blow dry the cake,

and clean the filter screen the discharge , the vibration dreg discharging device shall be switched on, the dregs shall be unloaded because of weight and vibration. As to sticky filter cake, manual help shall be provided to clean up the dregs.

Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration

Application

1) Food industry : Syrups, edible oils, dewaxing , decolour, degrease


2) Chemical industries: Sulphur, aluminum sulfate, Polyaluminum chloride, plastic, dyestuff intermediate, bleaching liquid, lubricant additives and intermediate and high pressure polyethylene, etc.

3) Dry, semidry cake and clean filtrate recovery.

Our Company
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration

Jiangsu Juneng Machinery North Branch in Yixing

Addressed in Zhoutie Town, Yixing Cicy, the norh branch of Jiangsu Juneng Machinery Co.,Ltd focus on all kinds of filters, such as vertical pressure leaf filters, horizontal pressure leaf filters, self-cleaning filters and bag filters etc.

Welcome to visit us if you would have any interest in our products.

Certifications
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Our Service
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Industrial 380V Vertical Leaf Filter Coconut Oil Filter Machine Liquid Filtration
Packaging
Size
123 (L) * 456 (W) * 789 (D)
Weight
1.2 T



Packaging Details
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
