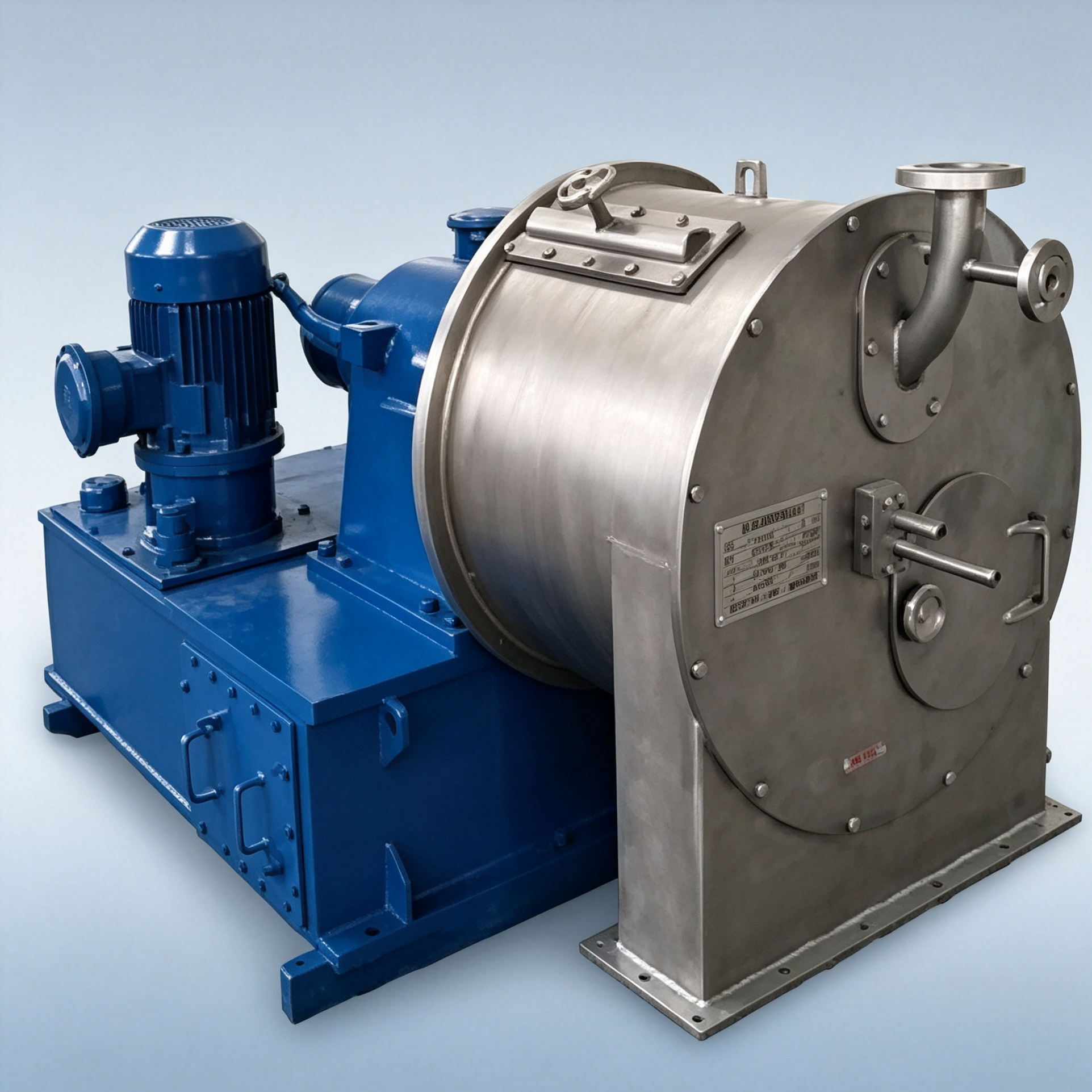

The HR Series Double Stage Pushing Centrifuge is a continuous filtering centrifuge engineered for salt and crystalline chemical products where product quality matters. It dewaters, washes and discharges automatically at full drum speed, delivering consistent moisture, high purity and well-preserved crystals. With compact footprint and low power consumption, the HR300-N is the economical choice for edible salt, potassium chloride and ammonium chloride production lines.

After the drum reaches full speed, suspension is fed continuously through the feed pipe onto the distributor and spread over the screen inside the drum under centrifugal force. Solids are retained on the screen as an annular cake, while the first-stage drum reciprocates to gently push the cake outward until it leaves through the discharge chute. The gentle pushing action is the key to protecting crystal shape and size.

• Continuous automatic operation - no manual cake removal, no peak load
• Gentle double-stage pushing keeps crystal breakage minimal
• Excellent washing effect for high-purity edible salt and chemical products
• Low and uniform power consumption reduces production cost
• Fast dewatering with stable low moisture of discharged cake
• Smooth running with low vibration and simple maintenance

Ideal for separating medium-particle crystalline or fibrous suspensions with average particle size ≥0.1mm and solid content of 30-70% by volume. Typical applications include edible salt, potassium chloride, ammonium chloride, sodium sulfate and other food-grade or fine chemical salts. By changing the feeding and distribution mode, it can also dewater non-flowable solid materials. Proven in nearly 100 materials across food, chemical and pharmaceutical industries.

Note: the HR300-N model highlighted above is recommended for 3 t/h edible salt and potassium chloride lines. Material analysis and pilot testing are suggested before final selection.

• Can it be used for food-grade salt production?
  Yes. HR300-N is widely applied in edible salt and potassium chloride plants, where its gentle pushing and excellent washing effect keep crystals intact and product purity high. Food-contact parts can be customized in stainless steel on request.
• Does the pushing action damage crystals?
  No. The double-stage reciprocating drum pushes the cake softly and gradually, which is specifically designed to minimize crystal breakage compared with scraper or vibration discharge types.
• What is the recommended capacity range of HR300-N?
  The HR300-N delivers about 3 t/h depending on material characteristics, with 2500r/min maximum speed and 30-80 pushing cycles per minute.
• Is the operation continuous or batch type?
  Fully continuous. Feeding, dewatering, washing and discharge run simultaneously at full speed, which avoids peak load and improves energy efficiency.
• What about MOQ, delivery and customization?
  MOQ is 1 set, delivery 30-60 working days after deposit. We support customization of contact parts material, motor and control system.
