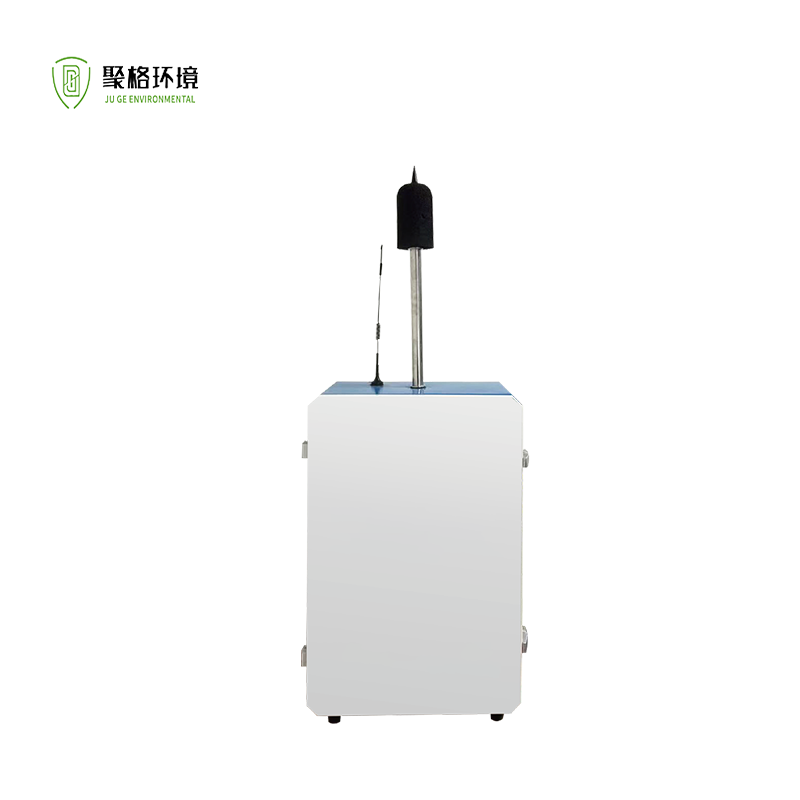

Industrial Boundary Noise Monitoring System with Real-time Monitoring Over-limit Alerts and Multi-Parameter Expansion
Industrial Boundary Noise Monitoring System with Real-time Monitoring Over-limit Alerts and Multi-Parameter Expansion
Specifications
MOQ :
1 Unit
Delivery Time :
10-15 working days
Packaging Details :
Neutral carton
Price :
USD2000-4000
Model Number :
AG-01N
Payment Terms :
T/T,Online order
Supply Ability :
100 Unit/Week
Certification :
IOS9001, CE
Place of Origin :
Nanjing, China
Brand Name :
JUGE
Name :
Industrial Boundary Noise Monitoring System
Description
Industrial Boundary Noise Monitoring System
System Overview

The Industrial Boundary Noise Online Monitoring System integrates IoT technology for real-time noise monitoring, compliance management, over-limit alerts, and source traceability. It is ideal for industrial plants, industrial parks, and noise-sensitive areas, supporting environmental acceptance, emission permits, and daily regulatory supervision.

Key Features
  • Intelligent End-to-End Monitoring: Designed for industrial boundaries, the system enables 24/7 noise monitoring with compliance assessment, over-limit alerts, evidence recording, and closed-loop management from monitoring to verification.
  • Remote Self-Diagnostics & Event Recording: Supports over-limit audio recording, remote playback, self-diagnostics, and automatic data recovery after communication interruption, ensuring reliable monitoring.
  • Multi-Parameter Monitoring Expansion: Expandable with meteorological parameters, GPS, over-limit video capture, and noise source localization for comprehensive monitoring.
Technical Specifications
Parameter Specification
Range 23 dB ~ 131 dB
Sensitivity >30 mV/Pa
Resolution 0.1 dB
Frequency Range 20 Hz – 20 kHz
Frequency Weighting A, C, Z
Time Weighting F, S, I
Measured Parameters Lp, Leq, L5, L10, L50, L90, L95, Lmax, Lmin, Ld, Ln, Ldn, SD, etc.
Recording Format Standard WAV Format with Adjustable Trigger Threshold
Display 8-inch color LCD touchscreen, 800 × 1280 resolution
Interface Output Wireless: 4G/5G; Wired: RS485, Ethernet
Power Supply AC 220V; built-in lithium battery (continuous operation >24 hours)
Additional Functions
  • Measures Lp, Leq, LN (L5/L10/L50/L90/L95), Lmax, Lmin, SD, and other acoustic parameters
  • Features remote communication, over-limit alarms, event recording, spectrum analysis
  • Automatic calibration, data analysis, and external device integration capabilities
