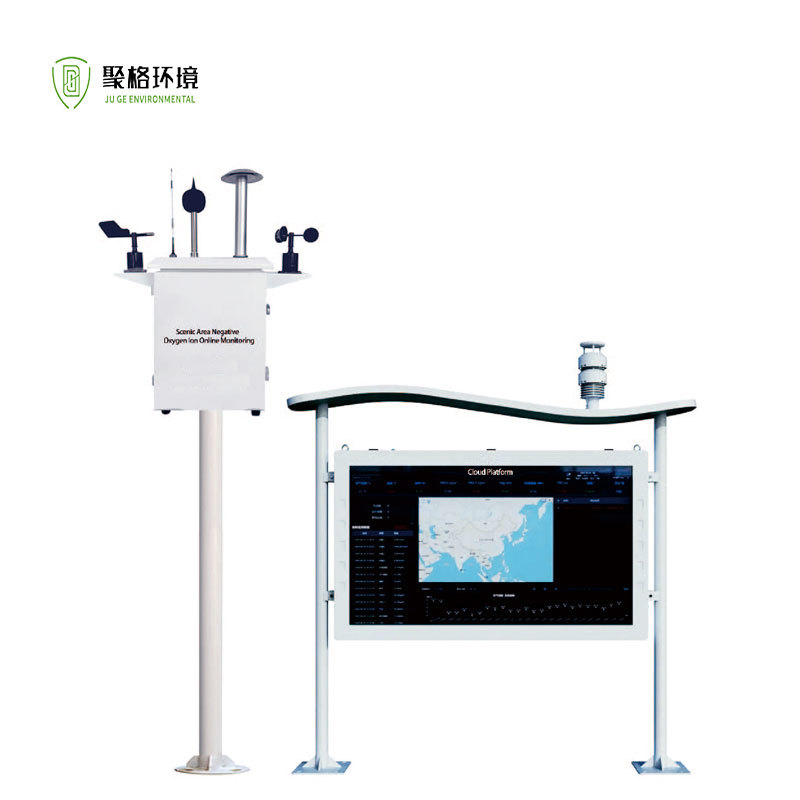

Negative Oxygen Ions Monitoring System with 0 – 5,000,000 ions/cm³ Range and Modular Design Featuring Dynamic Heating and Dehumidification Control
Negative Oxygen Ions Monitoring System with 0 – 5,000,000 ions/cm³ Range and Modular Design Featuring Dynamic Heating and Dehumidification Control
Specifications
Range :
0 – 5,000,000 ions/cm³
Price :
USD2000-5000
Packaging Details :
Neutral carton
Place of Origin :
Nanjing, China
Certification :
IOS9001, CE
Delivery Time :
10-15 working days
Model Number :
AG600-FLZ
Payment Terms :
T/T,Online order
Resolution :
10 ions/cm³
Name :
Negative Oxygen Ions Online Monitoring System
Brand Name :
JUGE
Supply Ability :
100 Unit/Week
MOQ :
1 Unit
Measurement Error :
±10% F.S
Description
Scenic Areas Negative Oxygen Ions Online Monitoring System
System Overview

The Scenic Areas Negative Oxygen Ions Online Monitoring System is a comprehensive solution designed for continuous environmental monitoring in scenic locations, providing accurate real-time data on negative oxygen ion concentrations and related meteorological parameters.

Key Features
  • Modular design with flexible configuration options, enabling customized monitoring factor selection and ideal for large-scale grid deployment
  • Integrated optical stability self-calibration and online self-zero calibration systems to eliminate long-term operational errors, with traceability to national standard stations
  • Robust performance in extreme environments including high-temperature, low-temperature, and high-humidity conditions
  • Dynamic heating and dehumidification control with continuous humidity correction to minimize ambient humidity impact on measurements
  • Long-life, anti-interference sampling power system with quiet, efficient operation and adjustable sampling cycles
  • Comprehensive connectivity with wireless transmission unit and RS485 interface, supporting data transmission via GPRS/CDMA, 3G/4G/5G networks with 24/7 continuous operation
  • Remote control capabilities for parameter modification and diagnostic functions
  • Optional meteorological monitoring modules for light, rainfall, radiation, ultraviolet, and other environmental factors
  • Optional camera module supporting both daytime and nighttime visual requirements with automatic capture and video overlay features
Technical Specifications
Parameter Specification
Factor Negative Oxygen Ion
Monitoring Principle Capacitive suction method
Monitoring Concentration Standard range: 0 - 5,000,000 ions/cm³
Resolution 10 ions/cm³
Measurement Error ±10% F.S
Pump Flow Rate 1.5 L/min; PID regulation ±2.5%
Constant Temperature Dehumidification DHS (Dynamic Heating System), dynamic humidity control
Monitored Particle Size 0.3 µm - 100 µm
Air Path Protection Provided
Sound Level Range 30 - 130 dB (A)
Response Time 200 ms
Resolution 0.1 dB
Waterproof Rating IP53
Data Acquisition Valid data acquisition rate for particulate matter ≥ 90%
Local Storage Monitoring data stored locally for at least 24 months
Data Retransmission Automatic retransmission of historical data upon network reconnection
Meteorological Parameters
Parameter Specification
Temperature Range: -50°C ~ +100°C; Resolution: 0.1°C; Accuracy: ±0.3°C
Humidity Range: 0% RH ~ 100% RH; Resolution: 0.1% RH; Accuracy: ±3% RH
Wind Speed Range: 0 - 60 m/s; Resolution: 0.1 m/s; Accuracy: (0.3+0.03) m/s
Wind Direction Range: 0 ~ 360°; Resolution: 1°; Accuracy: ±3°
Atmospheric Pressure Range: 45 - 120 kPa; Resolution: 0.01 kPa; Accuracy: 0.05 kPa (25°C @ 103.5 kPa)
System Configuration
  • Large Display Screen (P10): Four-line display; switching power supply, RS485 signal; Dimensions: 96 cm * 62 cm * 10 cm
  • Mounting: 3 m national standard pole (or wall bracket): lightning rod, outer diameter 89 mm, thickness 2 mm, two 1.5 m threaded sections (optional wall-mount bracket)
  • Network: 4G/5G / RS232 / RS485
  • Data Transmission Specification: HJ212-2017
  • Power Supply: AC220V, 50Hz, 150W
  • Protection: Leakage protection, overload protection, surge protection
  • Operating Temperature: -10°C ~ +60°C
  • Operating Humidity: 0% RH ~ 95% RH (non-condensing)
  • Remote Functions: Supports remote upgrade, remote control, remote parameter setting, fault diagnosis
