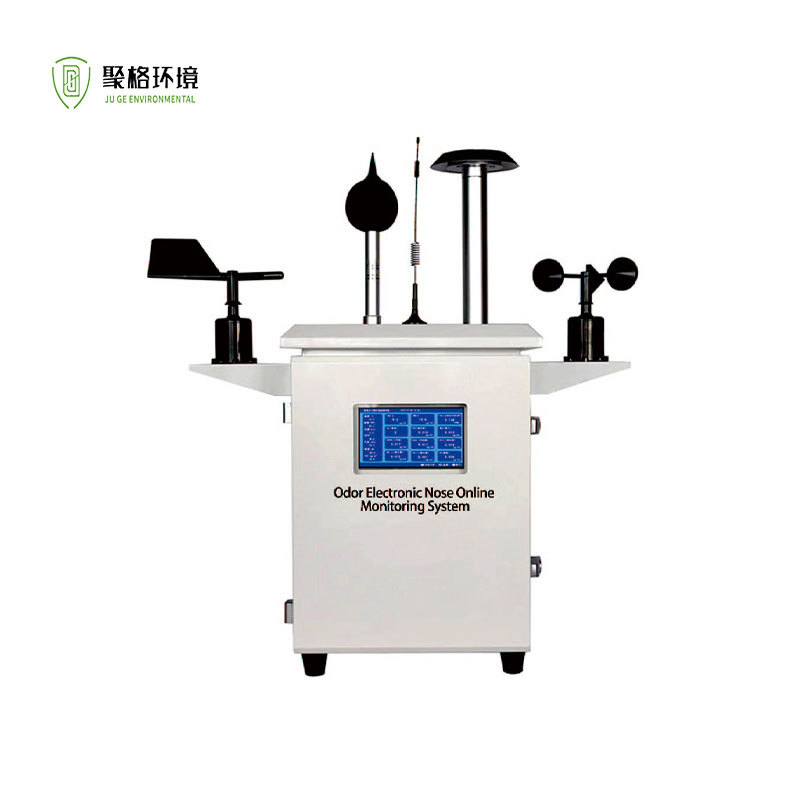

Odor Online Monitoring System with Array Combination, Constant Flow Control, and Built-in Protection for Ambient Air Quality
Odor Online Monitoring System with Array Combination, Constant Flow Control, and Built-in Protection for Ambient Air Quality
Specifications
Packaging Details :
Neutral carton
Place of Origin :
Nanjing, China
Brand Name :
JUGE
Supply Ability :
100 Unit/Week
Payment Terms :
T/T,Online order
Detected Gases :
NH₃, H₂S, C₃H₉N, CH₄S, C₂H₆S, C₂H₆S₂, CS₂, C₈H₈, TVOC, OU
Model Number :
AG600-OU
Price :
USD2000-5000
Delivery Time :
10-15 working days
MOQ :
1 Unit
Detection Principle :
Electrochemical; PID photoionization; Metal oxide MOS (varies by gas)
Name :
Odorous Gas Online Monitoring System
Certification :
IOS9001, CE
Range :
Inorganic gas 0-50PPM; OU value 0-5000
Description
Plant Boundary Odor Online Monitoring System OU Inorganic Gas Monitor
System Features
  • Array Combination: Utilizes mixed sensor array combining multiple sensors, capable of detecting over a dozen odor factors with gas cross-array analysis and comprehensive mixed gas judgment
  • Constant Flow Control: Equipped with flow feedback for constant flow control, ensuring sampling stability and improved accuracy
  • Built-in Protection: Features sheath gas protection and gas path protection systems
  • Professional Design: Structurally designed by professional engineers for easy installation
  • Data Stability: Includes temperature and humidity sensing, gas cross-interference algorithm, zero drift and span calibration
  • Dynamic Dehumidification: Optional dynamic heating dehumidification sampling system to avoid humid environment impact on data
  • Data Transmission: 4G, RS232/RS485 connectivity
  • Environmental Adaptability: Rainproof, snowproof, and lightning-protected design
  • Traceability: Traceable to NIST standards
  • Data Retransmission: Power-off protection and network disconnection retransmission function
  • Information Quality Control: Equipment information management, data management, and data quality control functions
  • Display Method: Local LCD display with debugging functionality
  • Multi-stage Filtration: Two or more stages of filtration system to prevent sample gas impurities from affecting sensor accuracy and precision
  • GIS Display: On-site or remote monitoring center viewing of real-time and historical data, integrable with geographic information maps
  • Multiple Modes: Choice of networked management modes including local area network, open network, and cloud database management
  • Expandability: Optional meteorological parameter instruments, automatic sampling system, and automatic alarm devices
  • Open Interface: Free communication and integration with other devices and software
  • Built-in Database: Preloaded odor concentration (OU) detection database for direct application; supports user-defined databases
  • Calibration/Zero Calibration: Supports automatic/manual zero calibration and span calibration functions
Technical Specifications
Parameter Description
Odor Gas Measurement Parameters NH₃, H₂S, C₃H₉N, CH₄S, C₂H₆S, C₂H₆S₂, CS₂, C₈H₈, TVOC, dimensionless OU value (ten odor parameters)
Pollutant Factor Measurement Method Electrochemical method, PID photoionization, metal oxide MOS
Measurement Concentration Range Inorganic gas 0-50PPM; OU value 0-5000
Measurement Concentration Accuracy 0.001PPM
Expandable Gases Nitrogen oxides: NO, NO₂, NOX; Carbon oxides: CO, CO₂; Sulfur-containing gases: SO₂, H₂S, CS₂, CH₄S, C₂H₆S, C₂H₆S₂; Halogen gases: Cl₂, F₂, I₂, HCl, HF, ClO₂; Other inorganic gases: O₃, HCN, PH₃, AsH₃, NH₃, N₂H₄, SiCl₄, SiH₂Cl₂, CₙH₂ₙ₊₂; Organic gases: CH₂O, C₃H₇NO, ETO, benzene series, non-methane total hydrocarbons, VOCs, acrylonitrile, methane, ethane, methyl ketone, natural gas, (CH₃)₃N, CH₃SH, (CH₃)₂S₂, tetrachlorothiophene, C₈H₈, C₃H₉N, etc.
Meteorological Parameters (5 parameters) Temperature: -50~100°C; ±0.3°C
Humidity: 0~100% RH; ±3% RH
Wind speed: 0~30 m/s; ±1 m/s
Wind direction: 0-360°; ±3°
Atmospheric pressure: 1~120 kPa; ±0.15 kPa
Data Transmission 4G transmission, uploadable to data platform, standard HJ212-2017 protocol
Waterproof Rating IP53
Power Supply AC220V
Interface Output RS232, RS485, etc.
Installation Method Pole/mast mounting
