V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
Specifications
Brand Name :
Kedel
Model Number :
KD-9002
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
20 Piece/Pieces
Price :
$515.0- $35.0 / Piece
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 pcs per months
Packaging Details :
box +carton
Product name :
V11-125 Blank Tungsten Carbide valve seats for API Oil Valves
Grade :
K30,K20,K10,YG6,YG8C
Material :
100% Virgin Tungsten Carbide
Application :
Chemical and Mechanic Industry
Size :
Customer's Request,0.5 - 80mm
Surface :
Blank/ Rough grinded/ Polished
Shape :
Round
Sample :
Available
Oem :
Accepte
Usage :
sealing and as the bearing balls
Description
G100 G1000 5/16" 5/32" 1/2" 1/8" 1-3/4" tungsten carbide polish ball

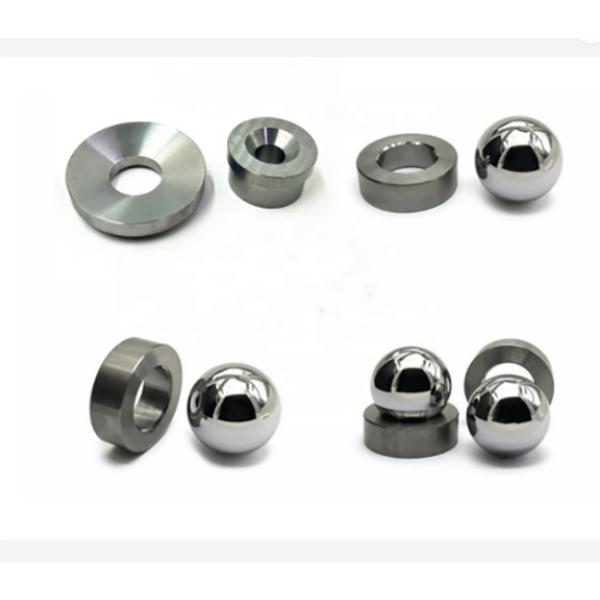

Tungsten carbide sucker rod pump parts valve ball and seat description

• The valve ball and valve seat are main components and parts of the sucker rod pump.
• The valve ball and valve seat are manufactured and checked according to API Specification 11AX.
• The material of products has excellent properties, such as good wear and corrosion resistance, good ability of anti-compression and thermal shock.
• The products have not only a higher accuracy and also a good sealing character (5 seconds without leakage under a vacuum of 64 Mpa).

Application:

♦ Material: cobalt-base alloy, nickel -base alloy and stellite alloy, Titanium carbide and other corrosion resistant material.
♦ Application fields: Subsurface pump/Oilfield Tubing pump/Insert pump, sealing, it is widely used in petroleum industry and other anti-corrosion machine parts.
♦ Properties: Seat-ball valves for oilfield Insert Pumps have good resistance against corrosion and oxidation;

Tungsten carbide valve ball and seat are widely used in petroleum drill and exploitation equipment. It's used to the stationary and roving unidirectional valve in various tube-type oil suction pump due to their high hardness, wear and corrosion resistance as well as good anti-compression and thermal shock characters with a high pump effect.

API 11AX Valve Ball and Valve Seat Specification
API Type/
Symbol		V11-106V11-125V11-150V11-175V11-200V11-225V11-250V11-375
Ball-D(mm)5/8"
15.88		3/4"
19.05		15/16"
23.83		1-1/8"
28.58		1-1/4"
31.75		1-3/8"
34.93		1-2/3"
42.88		2-1/4"
57.15
Seat-H(mm)12.712.712.712.712.712.712.719.05
Seat-OD(mm)20.1423.3229.6735.2637.5743.6951.0578.03
Seat-ID(mm)11.6813.9717.0220.9624.3826.9233.2745.47
R1.61.62.02.02.42.42.43.5
We also producing Blank surface tungsten carbide ball and seat

Note: the maximum deviation of the roundness of diameter is 0.003mm, the maximum surface roughness is Ra0.1 μm.

V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
Production Facility
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
Quality Control
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
Product Exhibition
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
Exhibition Showcase
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
V11-125 Tungsten Carbide Valve Seats 12.7mm for API Oil Valves
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
Do you make customized products?
Yes, we often make customized products.
Do you provide free samples?
We can provide free samples, but do not pay freight cost.
How long is your delivery time?
Generally 1-5 days if we have stock, 30 days if the product is customized.
