Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Specifications
Brand Name :
Kedel
Model Number :
V11-175, VII225, VII250
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
20 Piece/Pieces
Price :
$0.60 - $18.00 / Piece
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 pcs per months
Packaging Details :
box +carton
Product name :
Tungsten carbide API Valve pair seat and ball for sucker rod pumb
Size :
API V11, VII, Customer's Request
Application :
Oil pump, oil industry
Surface :
Blanks or polished grinding
Service :
OEM
Description
Tungsten carbide API Valve pair seat and ball for sucker rod pump part
Product Description

Features of Tungsten carbide API Valve pair seat and ball for sucker rod pump part:

  • For sealing of valves of oil pumps in petroleum industry's sand containing wells, viscous oil wells, sea oil wells, high pressure sulfur resistant oil wells, compatible Cemented Carbide valve seats, etc.
  • Various grades for cemented carbide balls/pellets can be supplied according to customer's drawings.
  • The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry.
Application

Tungsten carbide ball was widely used in precision tools drawing and punching, high precision bearings, high precision measuring instrument and appratus, water pump and brake pump, and various machinery sealing accessories part in high-tech industry and oil industry.

Grade No.
Grade WC% CO% Hardness (HRA) Density (G/M³) T.R.S (Mpa) Application
YG6 94% 6% 91 14.6-15.0 1700 Widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding measurement.
YG6X 94% 6% 92 14.6-15.0 1450 Widely used in all kinds of hardware industry, valve, bearing, die casting, punching, grinding measurement.
YG8 92% 8% 89 14.4-14.8 1800 Widely used in valves, bearing, die casting, punching, grinding measurement, hardness tester, petroleum, chemical industry, aeronautics and astronautics.
YG11 89% 11% 88 14.25-14.4 2350 Widely used in the oil industry, for API Valve pair seat and ball for sucker rod pump part
YG13 87% 13% 87 14.03-14.25 2400 Widely used in the oil industry, for API Valve pair seat and ball for sucker rod pump part
VII type Ball &Seats size
TYPE BALL(MM) SEAT(MM)
OD ID Height
VII-106 16.5 20.60 11.89 13.1
VII-125 19.7 23.85 14.61 13.1
VII-150 24.4 30.20 17.83 13.1
VII-175 29.0 35.80 21.08 13.1
VII-225 35.4 44.20 26.57 13.1
VII-230 35.4 38.60
13.1
VII-250 43.3 51.60 32.13 13.1
VII-375 57.65 62.30 44.50 19.45

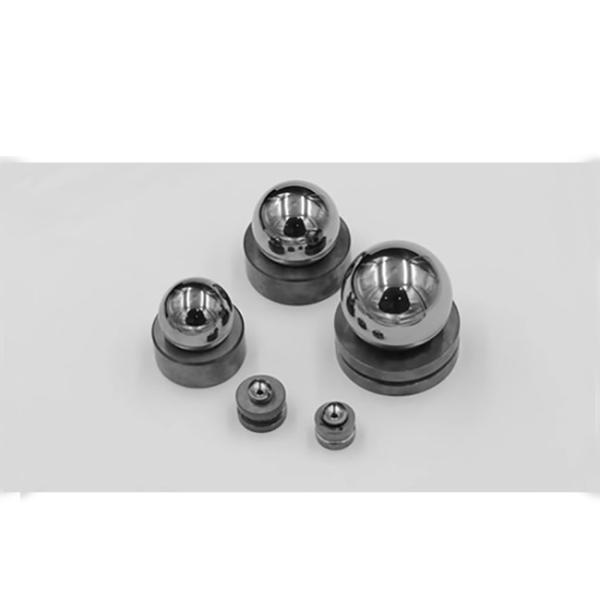

Products photos
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Usage feild
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Production Facility
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Quality Control
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Product Exhibition
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Exhibition Showcase
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Tungsten Carbide API Valve Seat and Ball V11-175 for Oil Pump
Frequently Asked Questions
Are you trading company or manufacturer?
We are manufacturer.
Do you make customized products?
Yes, we often make customized products.
Do you provide free samples?
We can provide free samples, but do not pay freight cost.
How long is your delivery time?
Generally 1-5 days if we have stock, 30 days if the product is customized.
