YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
Specifications
Brand Name :
Kedel
Model Number :
KD-7004
Certification :
ISO9001:2015,SGS,
Place of Origin :
Sichuan, China
MOQ :
20 Piece/Pieces
Price :
$5.0 - $35.0 / Piece
Payment Terms :
T/T,L/C,Western Union,MoneyGram
Supply Ability :
2000 pcs per months
Packaging Details :
box +carton
Product name :

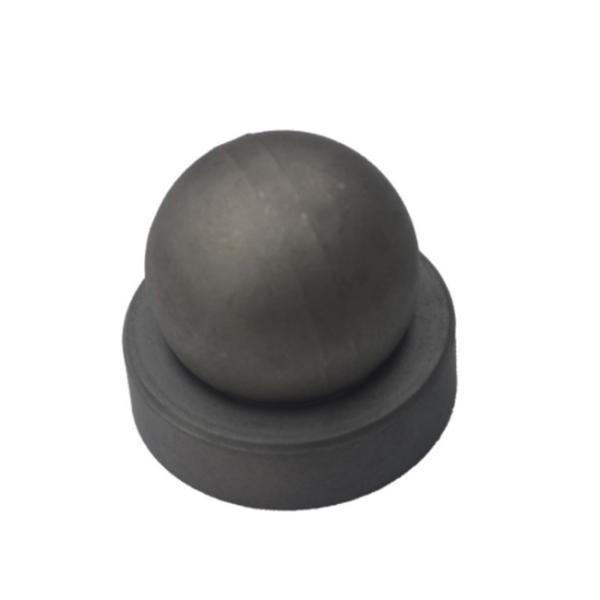

tungsten carbide ball valve and seat
Grade :
YG6,YG8C
Material :
100% Virgin Tungsten Carbide
Characters :
Anti-corrosion,Wear- resistance
Surface :
Blanks or polished grinding
Application :
Chemical and Mechanic Industry
Description

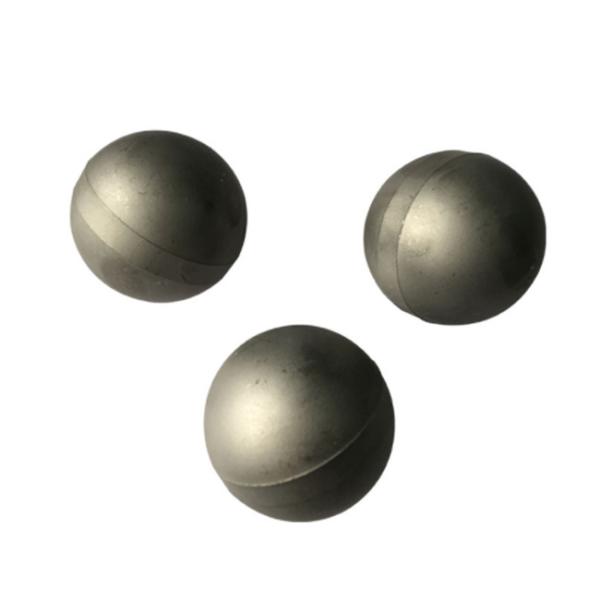

Tungsten carbide ball/TC alloy ball

High precision tungsten carbide balls /Tungsten alloy ball Tungsten Carbide ball is mainly composed of high-hardness refractory metal carbide (WC, TiC) micron powder with cobalt (Co) or nickel (Ni), molybdenum (Mo) as binder in vacuum furnace or Sintered powder metallurgy products in hydrogen reduction furnace, nowadays common cemented carbides have YG, YN,

YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
Product name Tungsten carbide ball
Series YG6 YG8 YN6 YN13 YT15
Feature Large hard Tungsten Carbide ball has high hardness, wear resistance, corrosion resistance, bending resistance, and bad use environment, and can replace all steel ball products. Carbide ball hardness ≥ 90.5, density = 14.9g/cm3.
Density 14.9g/cm3.
Product process line The production process of cemented carbide ball is similar to that of other cemented carbide products, mainly including powder preparation → recipe according to application → wet grinding → mixing → crushing → drying → sieving → adding molding agent → drying → sieving Prepared mix → granulation → cold isostatic pressing → forming → sintering → forming (blank) → packaging → storage.
Application:

Tungsten carbide balls are used in applications requiring extreme hardness and resistance to wear and abrasion; and are able to with stand hard shocks and impacts. Tungsten carbide balls are made with 6% nickel binder or 9% nickel binder. Common applications include ball valves, flow meters, ball bearings, linear bearings, tungsten carbide grinding balls, and ball screws.

YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
Product Paramenters
Grade WC% CO% Hardness (HRA) Desnity (G/M³) T.R.S (Mpa) Application
YG6 94% 6% 91 14.6-15.0 1700 Widely used in all kinds of hardware industry, valve, bearing, die casting , punching, grinding measurement.
YG6X 94% 6% 92 14.6-15.0 1450 Widely used in all kinds of hardware industry, valve, bearing, die casting , punching, grinding measurement.
YG8 92% 8% 89 14.4-14.8 1800 Widely used in valves,bearing, die casting , punching, grinding measurement,hardness tester, petroleum, chemical industry, aeronautics and astronautics.
Production Facility
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
Quality Control
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
Product Exhibition
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
YG6 Tungsten Carbide Valve 94% WC 6% Co Anti-Corrosion
Frequently Asked Questions
Are you trading company or manufacturer?

We are manufacturer.

Do you make customized products?

Yes, we often make customized products.

Do you provide free samples?

We can provide free samples, but do not pay freight cost.

How long is your delivery time?

Generally 1-5 days if we have stock, 30 days if the product is customized.
