Dual Light Mini PTZ Camera
Dual Light Mini PTZ Camera
Specifications
Brand Name :
KAIDUN
Model Number :
MCL-PT001
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Thermal Resolution :
640*512
Thermal Length :
35mm
Visible Resolution :
2MP
Visible Focal Length :
30x optical zoom
Power :
DC10~36V,≤8W
Total Weight :
≤4kg
Dimensions :
170*320*170mm
Description

Dual Light Mini PTZ Camera


Key Features


  • The MCL-PT001 is a Long Range Camera Equipped with an observation-type thermal imaging lens,The spherical rotational structure allows for multi-angle observation, with a horizontal observation angle range of 0° to 360 and a vertical range of -90° to +90°

Application Environment


Dual Light Mini PTZ Camera

Forest Fire Prevention

Dual Light Mini PTZ Camera

Army Border Guard

Dual Light Mini PTZ Camera

The Army Defends the Coast

Dual Light Mini PTZ Camera

Ships

Dual Light Mini PTZ Camera

A shipping port

Unlike manual zoom lenses,electric zoom lenses are generally used in a wide range of outdoor scenes and generally cover a wide focal length range.Because the focal length can be artificially changed through the back end,for the important parts of the scene can be closer to zoom in and see,the monitoring effect is very good.With the continuous development and improvement of the security industry,as well as the increase of state investment in infrastructure,such as urban security,highways,railways,forest fire,maritime management,ports,border defense,oil fields and other industries for electric zoom lens demand has been very large growth.


Main Features

Material Aluminum Alloy +industrial plastics
(with powder coating)
Protection Class IP66
Working Temperature -40℃~+70℃
Working Humidity <90%
Video IP
Visible Resolution 2MP
Visible Focal Length 30x optical zoom
Thermal Resolution 640*512
Thermal Length 35mm
Motor&Transmission Method Torque Direct-Drive Motor,Precision Spur Gear Transmission
Rotation Range Horizontal:0~360°(0.04°~114°/s)
Vertical:-90°~+90°(0.04°~87°/s)
Function T-Type Bilateral Load(1.7KG per side),Electronic Image Stabilization,Electronic
Fog Penetration,Human-Vehicle-Vessel-Non-Living Object Recognition
Voltage DC10~36V(≤8W)
Weight ≤4kg
Dimensions(H*L*W) 170*320*170mm
Mounting Formal Installation,Four-Point Base Fixation

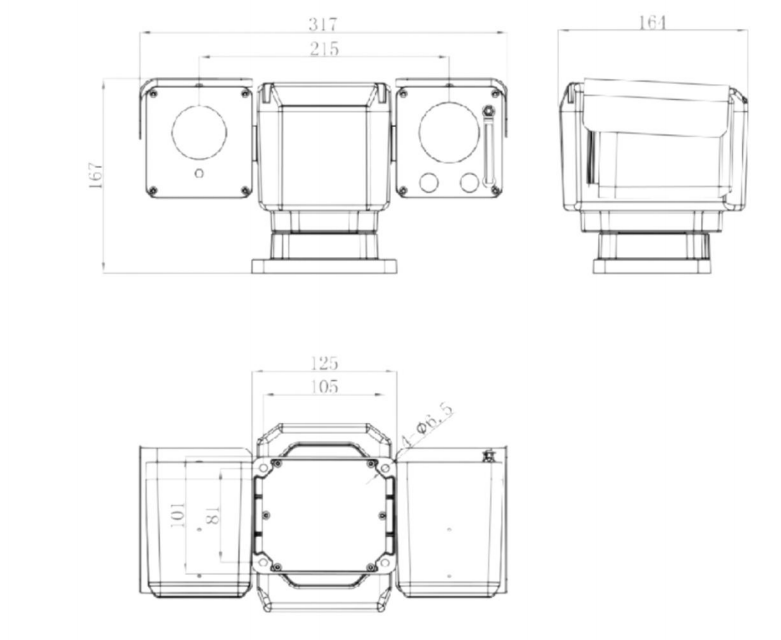

Dimension


Dual Light Mini PTZ Camera
