Trispectrum lmage-Stabilized Turret Camera
Trispectrum lmage-Stabilized Turret Camera
Specifications
Brand Name :
KAIDUN
Model Number :
MCL-PT010
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
5000 units/year
Delivery Time :
5-8 week
Packaging Details :
Wooden box packaging / cardboard box packaging
Thermal Resolution :
640*512
Thermal Length :
75mm
Visible Resolution :
2MP
Visible Focal Length :
46x optical zoom
Laser Range :
800m
Power :
DC24V,≤60W
Total Weight :
≤16kg
Description
Trispectrum lmage-Stabilized Turret Camera
Key Features
  • The MCL-PT010 is a long range camera equipped with an observation-type thermal imaging lens,Laser
  • Spherical rotational structure allows for multi-angle observation with horizontal range of 0° to 360° and vertical range of -60° to +70°
Application Environment
Trispectrum lmage-Stabilized Turret Camera
Forest Fire Prevention
Trispectrum lmage-Stabilized Turret Camera
Army Border Guard
Trispectrum lmage-Stabilized Turret Camera
The Army Defends the Coast
Trispectrum lmage-Stabilized Turret Camera
Ships
Trispectrum lmage-Stabilized Turret Camera
Shipping Port
Unlike manual zoom lenses, electric zoom lenses are used in a wide range of outdoor scenes covering extensive focal lengths. The focal length can be adjusted remotely to zoom in on important areas, providing excellent monitoring capabilities. With continuous development in the security industry and increased infrastructure investment, demand for electric zoom lenses has grown significantly in urban security, highways, railways, forest fire prevention, maritime management, ports, border defense, and oil fields.
Main Features
Material Aluminum Alloy (with powder coating)
Protection Class IP66
Working Temperature -40℃~+70℃
Working Humidity <90%
Video IP
Visible Resolution 2MP
Visible Focal Length 46x optical zoom
Thermal Resolution 640*512
Thermal Length 75mm
Laser Range 800m
Motor & Transmission Method Torque Motor Direct Drive Method
Rotation Range Horizontal: 0~360° (0.05°~250°/s)
Vertical: -60°~+90° (0.05°~150°/s)
Function Top-mounted Payload (Self-locking 2.5KG),Gyro Stabilization, Optical Fog Penetratior
Voltage DC24V (≤60W)
Weight ≤16kg
Dimensions(H*L*W) 446*263*215mm
Mounting Formal Installation, Four-Point Base Fixation

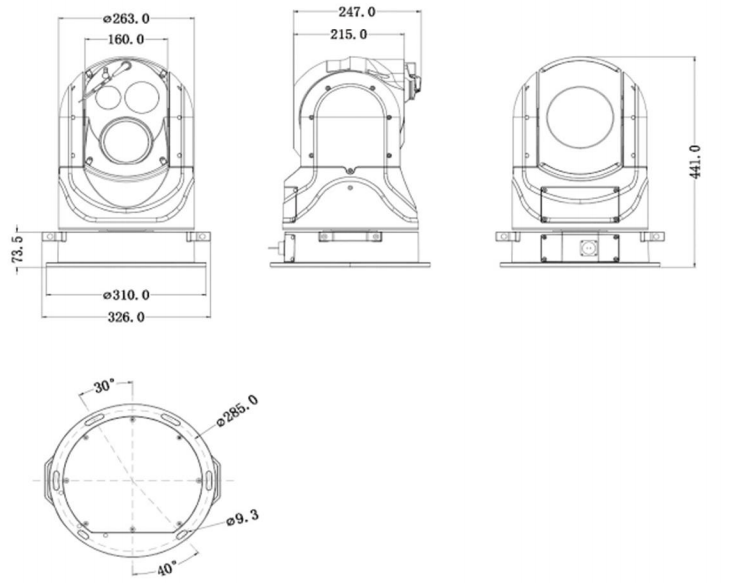

Dimensions
Trispectrum lmage-Stabilized Turret Camera
