Specifications
Brand Name :
Casun
Model Number :
20SHD0250-52NTV2
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
5PC
Price :
$17.59~$18.91
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
10000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:38x29x18cm
Holding Torque :
32 mN.m
Voltage :
5.4V
Current :
0.6A
Body Length :
38mm
Weight :
0.08 kg
Phase Resistance :
9 ohm ±10% （At 20℃）
Shaft Length :
52 mm
Phase :
2
Insulation Class :
Class B
Description

Casun Nema 8 Lead Screw Stepper Motor Tr5X2(P1) 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment

The Casun Nema 8 Lead Screw Stepper Motor features an integrated TR5×2 (P1) threaded shaft, delivering precise linear motion in a remarkably compact 38mm body. Designed specifically for beauty and aesthetic equipment, this high-precision motor combines 32mN.m torque with smooth, reliable performance for delicate applications.

Features:

  • Bipolar or unipolar versions available

  • Hybrid stepper construction

  • Available in single- or double-shaft versions

  • CE and RoHS approved

  • Customizations on request

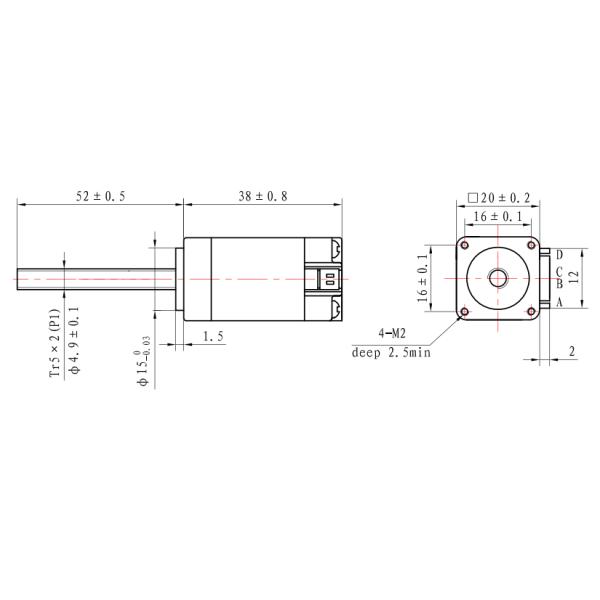

Dimensions

Casun Nema 8 Lead Screw Stepper Motor Tr5X2 P1 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment

Motor Specifications

Step Angel

 1.8°

Frame Size

 38 mm

Number of Phase

 2 Phase

Rated Current

 0.6 Amp

Holding Torque

 32 mN.m

Resistance

 9 ohm

Inductance

 3.2 mH

Rotor Inertia

 3.5 g.cm²

Motor weight

 0.08 kg

Connection

 Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

Submodels

Casun Nema 8 Lead Screw Stepper Motor Tr5X2 P1 5.4V 38mm Body High Precision 32mN.m for Beauty Equipment

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs


Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft
