1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
Specifications
Brand Name :
Casun
Model Number :
36SHD4301-11B1
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$4.14-$6.98
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
70mN.m
Current :
0.3A
Motor Length :
15.4mm
Shaft :
11mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

These motors feature high stiffness and excellent torque characteristics, enabling them to maintain precise positioning accuracy even under load. We provide various configuration options including different step angles, lengths, and torque levels to meet your specific requirements.

Key Features
  • Our engineering team will reach out within 48 hours to deliver the optimal solution
  • Expert in drivetrain solutions
  • Delivering high torque and accuracy
  • Provide bespoke services
  • Customizations on request
Motor Specifications
Step Angle 1.8°
Frame Size 35 mm
Number of Phase 2 Phase
Rated Current 0.3 A
Holding Torque 70 mN.m
Resistance 15.5 ohm
Inductance 7 mH
Rotor Inertia 4 g-cm²
Motor Weight 0.06 kg
Number of Leads 4
Connection Bipolar
Appearance
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor

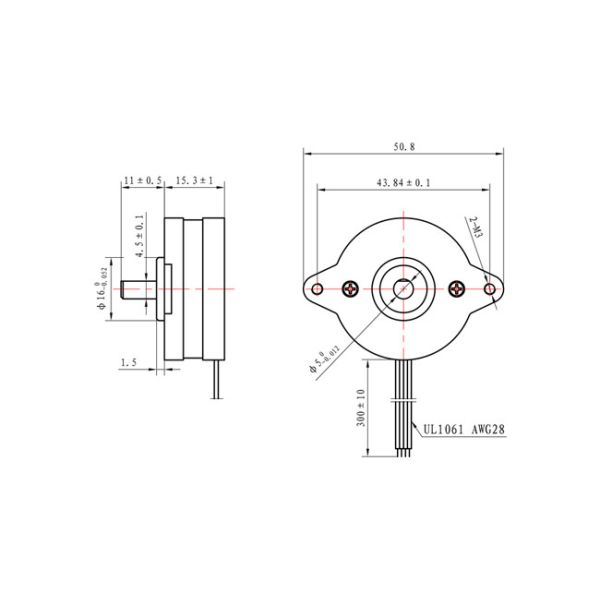

Dimensions
1.8 Degree NEMA 14 SMT Stepper Motor 6.6V 90mN.m Gear Shaft Permanent Magnet Motor
Torque Curves

Detailed torque curve data available upon request.

Custom Motor Solutions

If our standard motor cannot meet your specific requirements, we can customize the motor according to your needs. Customized content includes but is not limited to:

  • Special shafts
  • Custom winding parameters
  • Specific installation dimensions
  • Lead wires with special requirements
  • Connectors
Available Options
Encoder
Brake
Gearbox
Connector

Please click the button below to tell us your requirements and receive a customized quote.

Get a Quote
