Specifications
Brand Name :
Casun
Model Number :
35SHD0003-23H
Certification :
CE,ROHS,ISO
Place of Origin :
CHINA
MOQ :
1PC
Price :
$4.14-$6.98
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Step angel :
1.8°
Holding Torque :
110mN.m
Current :
0.4A
Motor Length :
26mm
Shaft :
Round Shaft 23mm Length
Customized :
The motor can be designed &manufactured with customized request.
Description
35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera
NEMA 14 stepper motors typically have higher resolution and accuracy, enabling more precise position control. Choose a baseline version or request your own customized configuration.
Key Features
  • Bipolar or unipolar versions available
  • We accept contract manufacturing and provide bespoke services
  • Offered in single- and double-shaft configurations
  • CE and RoHS approved
  • Customizations on request
Motor Specifications
Step Angle 1.8°
Frame Size 35 mm
Number of Phase 2 Phase
Rated Current 0.4 A
Holding Torque 110 mN.m
Resistance 30 ohm
Inductance 24 mH
Rotor Inertia 12 g-cm²
Motor Weight 0.15 kg
Number of Leads 4
Connection Bipolar

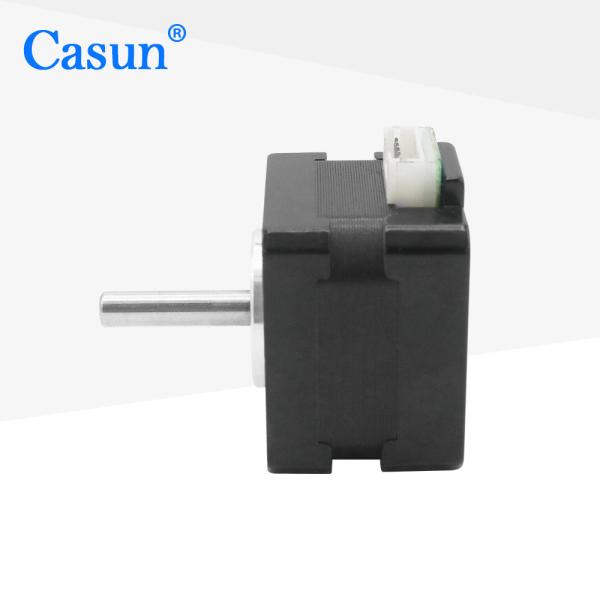

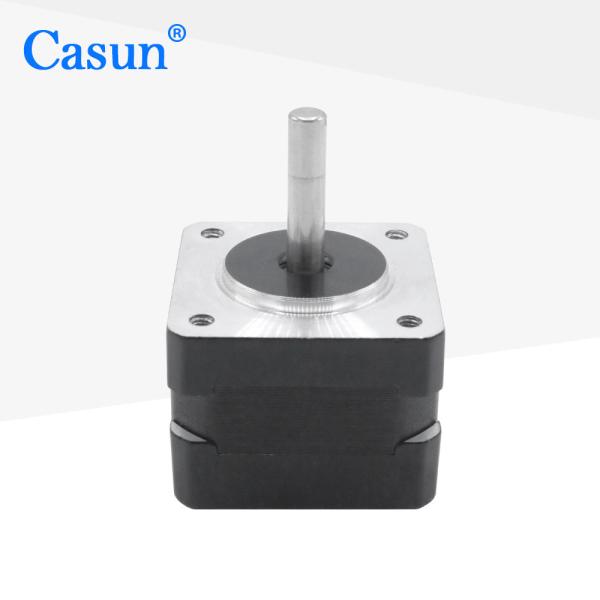

Appearance
35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera
Dimensions
35x35x26mm 2 Phase Hybrid Stepper Motor 12V For Surveillance Camera
Torque Curves
Torque curve data available upon request.
Custom Motor Solutions
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Available Options
Encoder
Brake
Gearbox
Connector
Please click the button below to tell us your requirements.
