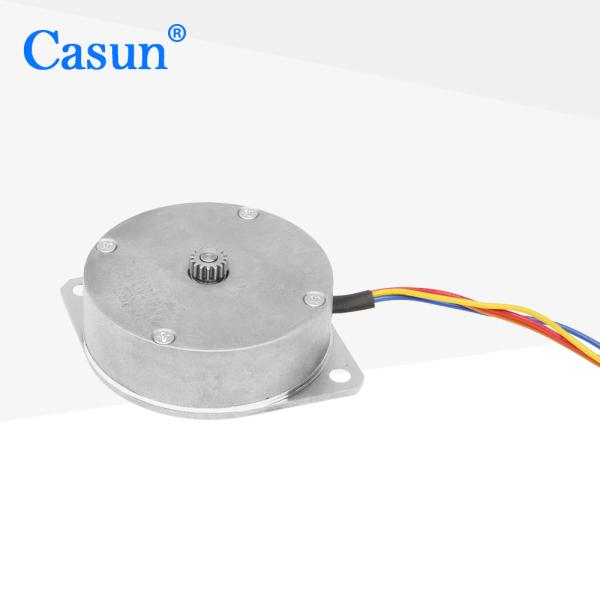

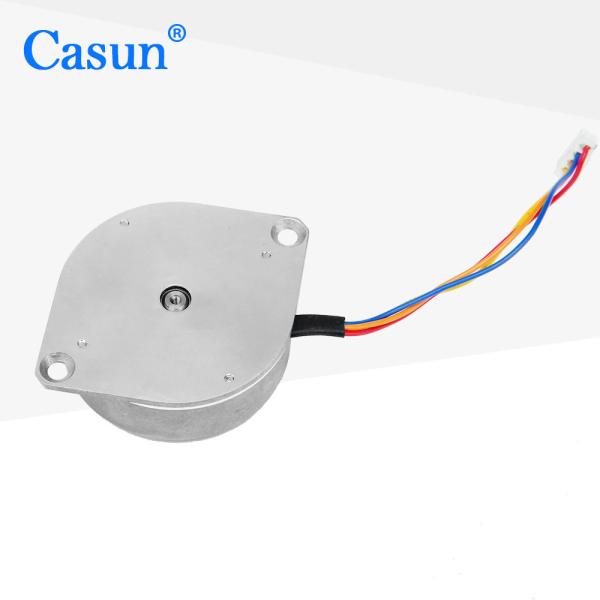

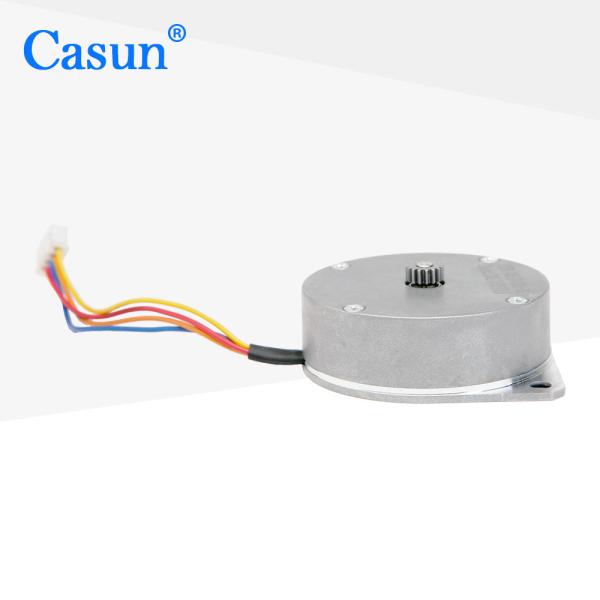

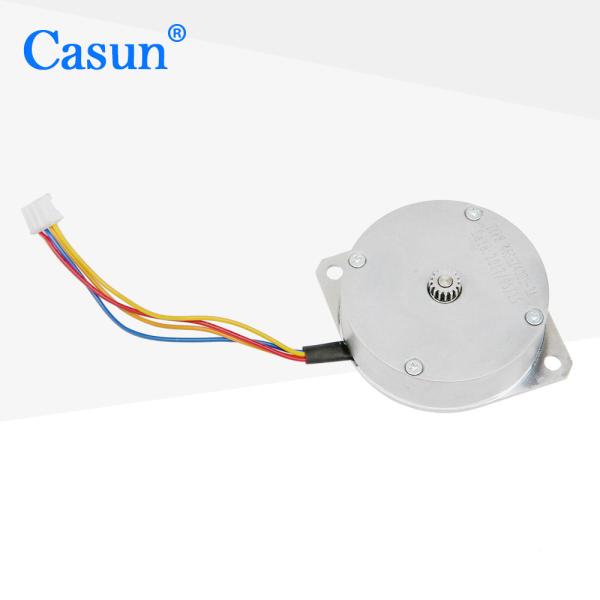

100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
Specifications
Brand Name :
Casun
Model Number :
46SHY4001-3A
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1PC
Price :
$13.8-$15.38
Payment Terms :
D/A, T/T, L/C, D/P
Supply Ability :
40000+PCS+Month
Delivery Time :
7-15 days
Packaging Details :
Carton:36x29x14cm
Steper angle :
1.8degree
Phase :
2
Rated voltage :
3.2V
Rate current :
1A
Holding torque :
100mN.m
Detent torque :
8mN.m
Customized :
The motor can be designed &manufactured with customized request.
Description
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
High Torque Casun Pancake Stepper Motor 3.2V 1.8 Degree 100mN.m Flat Stepping Motor. The Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes. Use with a microstepping driver to reduce vibration and achieve higher step resolution. Choose a baseline version or request your own customized configuration.
Key Features
  • Bipolar or unipolar versions available
  • Hybrid stepper construction
  • Available in single or double shaft versions
  • CE and RoHS approved
  • Customizations on request
Dimensions
100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
Motor Specifications
Step Angle1.8°
Frame Size46mm
Number of Phase2 Phase
Rated Current1.0Amp
Holding Torque100mN.m
Resistance3.2 ohm
Inductance2.7mH
Rotor Inertia11g-cm²
Motor Weight0.1kg
Number of Leads4
ConnectionBipolar
Operating Specifications
Step Angle1.8°
Maximum Temperature80°C maximum
Ambient Temperature-20°C to 50°C
Storage Temperature-20°C to 100°C
Humidity Range85% or less, non-condensing
Magnet Wire InsulationClass B 130°C
Insulation Resistance100M Ohm at 500 VDC
Dielectric Strength500 VDC for 1 min
Available Models
Model No Step Angle Rated Voltage Rated Current Holding Torque Motor Length Motor Weight
46SHY4001-3A1.8°3.2V1A100mN.m46mm0.1kg
46SHY4001-13S1.8°3.2V1A100mN.m46mm0.1kg
46SHY4302-3A2-21.8°1.64V2A190mN.m46mm0.2kg
46SHY4003-4AL1-11.8°2.8V1A90mN.m46mm0.1kg
46SHY4001-3AL1-11.8°3.2V1A100mN.m46mm0.1kg
46SHY4401-2A11.8°2.5V1A52mN.m46mm0.1kg
Model Motor Length Current Holding Torque
P28SHD46119.5mm0.5A16mN.m
P28SHD470110.6mm0.5A20mN.m
P28SHD475013-15mm0.5A25mN.m
P28SHD495017.9mm0.5A35mN.m
Available Options
Encoder 100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
Brake 100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
Gearbox 100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
Shaft 100mN.M 3.2V Pancake Stepper Motor 1.8 Degree Casun Flat Stepper
Custom Solutions Available
If our standard motor cannot meet your needs, we can customize the motor according to your requirements. Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
Frequently Asked Questions
Who are we?
We are based in Guangdong, China, starting from 2011. We sell to Domestic Market (63.00%), Western Europe (12.00%), North America (9.00%), Eastern Asia (8.00%), Northern Europe (2.00%), and other global markets. There are about 51-100 people in our office.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final inspection before shipment.
What can you buy from us?
Stepper Motor, BLDC Motor
Why should you buy from us not from other suppliers?
We are specialized in producing and selling stepper motors for more than 11 years.
What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, Express Delivery;
Accepted Payment Currency: USD, CNY;
Accepted Payment Type: T/T, L/C, D/P D/A, PayPal;
Language Spoken: English, Chinese, Japanese
